960-1215MHz 50C 100W RF Power Amplifier for Russia customer

2023-08-08

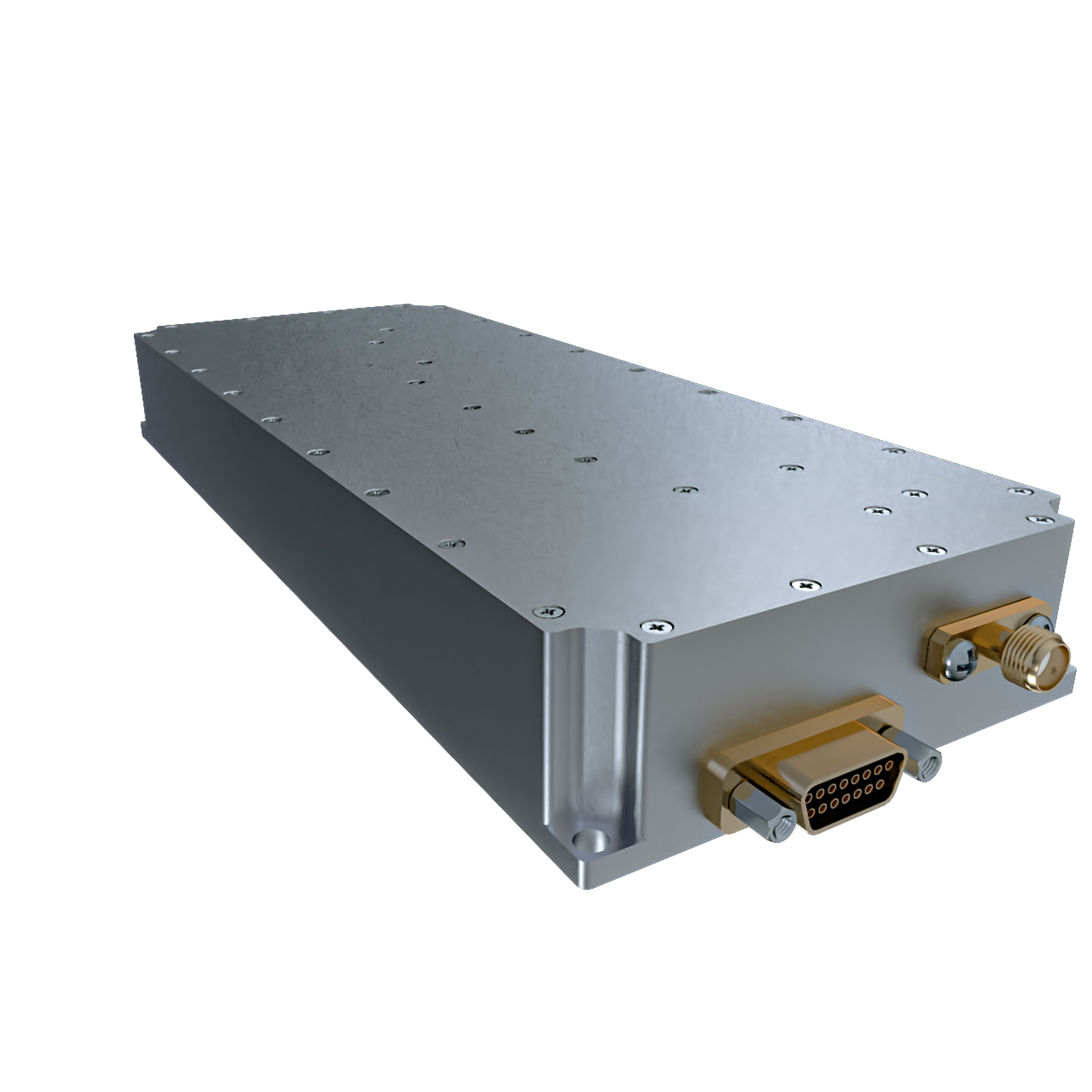

Latest company case about 960-1215MHz 50C 100W RF Power Amplifier for Russia customer

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 960   1215 MHz
RF INPUT   -3   dBm
P-1dB Output Power 50     dBm
P-sat Output Power 51.4     dBm
Gain （P-1dB） 53     dB
Power Gain Flatness   2 3 dB
Input VSWR   1.5
Operating Voltage   28   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
Idle mode Current     0.1 A
Standby mode Current     0.7 A
Third Order Intercept Point (dBm) 2Tone@44dBm/Tone,A=1 MHz   24   dBc
MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 200*120*25 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB9 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-4 Thru Hole --
Weight ≤1.5 kg
ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -20 +55 °C
Humidity Range 0-100 %
Max RF Input +3 dBm
PA Baseplate Shutoff Temperature + 85 °C
High VSWR Protections

Power Amplifier has open/short port protection

Configure Output Isolators
