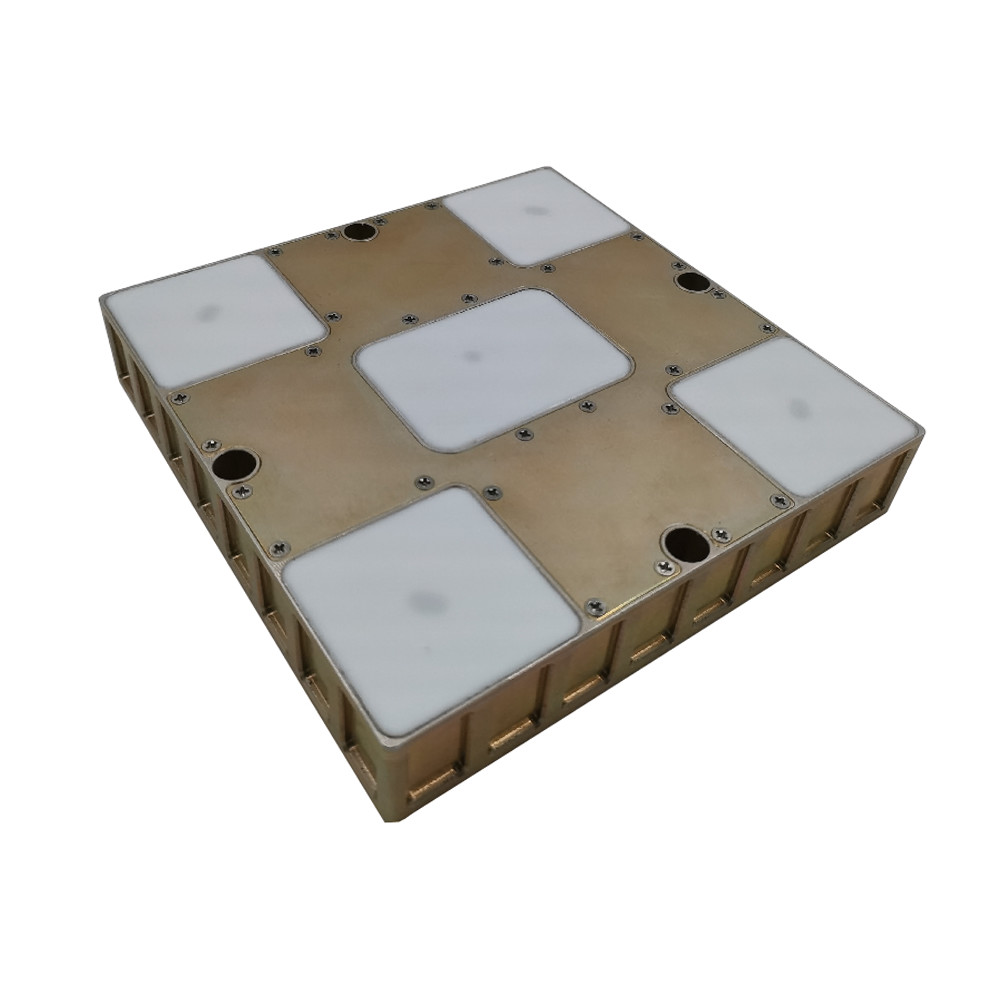

JRTB3-300G TYPE B3 ANTI-JAMMING ANTENNA for Pakistan customer

2023-08-10

Latest company case about JRTB3-300G TYPE B3 ANTI-JAMMING ANTENNA for Pakistan customer

This ANTI-JAMMING ANTENNA is designed for Pakistan. This module is used for Airborne, vehicle-borne, ship-borne, ground systems and other application platforms.

Signal of reception BD2 B3 ,B1 Power supply (V) DC9～DC36
Number of channels 4 channels B3, 1 channels B1 Power consumption (W) ≤10(28V/0.36A)
B3 Anti-jamming performance Three broadband: 75dB ~ 80Db; Single broadband: 90dB ~ 95 dB Weight (kg) ≤650g
Size (mm)

134 m x 134mm x 30mm

(Height without connectors)
B1 Gain of channel(dB) 40±1 Physical interface J30J-9 core, SMA-K
Output signal power (dBm) ）-60±5 Communication interface Serial port, TTL level
Channel isolation (dB) ≥65 Operating temperature (℃) -45～85
Channel gain consistency ≤±1 Storage temperature (°C) -55～85
Channel gain consistency(° ) ）≤±5 Vibration, shock, electrom- agnetic compatibility, etc Meet the relevant requirements of GJB
