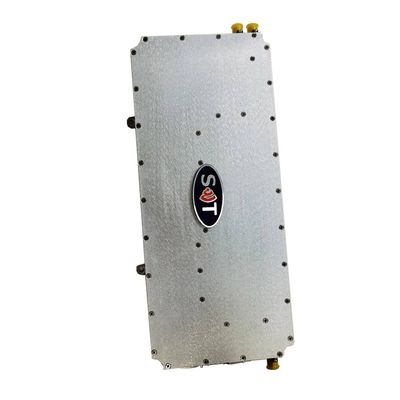

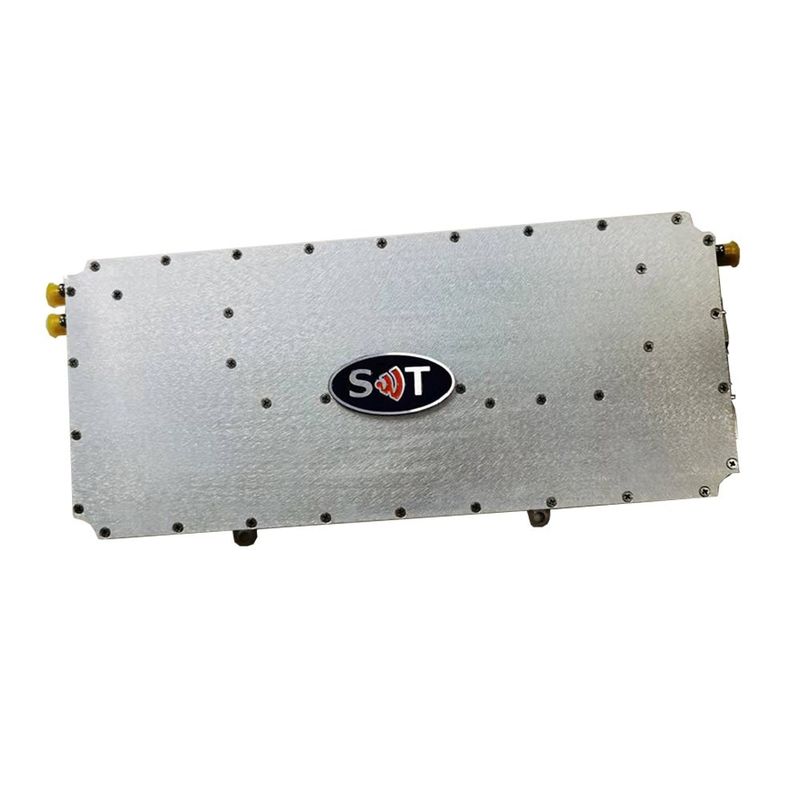

40 KHz PSat 48 dBm HF Power Amplifier RF Linear Amplifier For radar systems, satellite communications
Description
The 40 KHz PSat 48 dBm RF Power Amplifier is a specialized device designed to amplify radio frequency (RF) signals within the 40 kilohertz (KHz) frequency range, with a saturated output power (PSat) of 48 dBm.
-
Frequency Range: This power amplifier is specifically designed to amplify signals within the 40 KHz frequency range. Such a frequency range is commonly used in low-frequency RF applications, including sonar systems, ultrasonic sensors, and other specialized RF devices.
-
Saturated Output Power (PSat): The PSat of 48 dBm indicates that the amplifier can provide a maximum output power of 48 dBm within the 40 KHz frequency range. This high power output is crucial for applications requiring strong signal transmission.
-
Applications: The 40 KHz PSat 48 dBm RF Power Amplifier is suitable for a range of low-frequency RF applications, including signal amplification in sonar systems, ultrasonic sensors, laboratory research, and other specialized applications requiring reliable signal enhancement and amplification.
-
Specific Frequency Requirements: Due to its specific frequency range and high power output, this power amplifier is particularly suitable for applications with specific frequency requirements in the 40 KHz range.
-
Stability and Reliability: Power amplifiers of this type are typically designed for stability and reliability, ensuring long-term operation in various environmental conditions while maintaining consistent performance. This is crucial for ensuring signal quality and system stability.
In summary, the 40 KHz PSat 48 dBm RF Power Amplifier is designed specifically for signal amplification within the 40 KHz frequency range. With its high power output and stable performance, it serves as a reliable solution for low-frequency RF applications, providing enhanced signal processing capabilities for various specialized applications.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
|
40 |
|
KHz |
| RF INPUT |
|
0 |
|
dBm |
| PSat Power Output |
|
48 |
|
dBm |
| Gain |
|
48 |
|
dB |
| Power Gain Flatness |
|
1 |
|
dB |
| Input VSWR |
|
2 |
|
-- |
| Operating Voltage |
|
28 |
|
VDC |
| Spurious Signals |
|
|
-60 |
dBc |
| Harmonic Signals |
|
-15 |
|
dBc |
| In Impedance |
|
50 |
|
Ω |
| Out Impedance |
|
200 |
|
Ω |
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (L x W x H) |
260x200x 50 |
mm |
| RF Connectors (Input / Output) |
SMA- KFD/ SMA- KFD |
-- |
| DC Connector |
DB9 |
-- |
| Control Connector |
DB9 |
-- |
| Cooling |
Baseplate Conduction - Optional Heatsink Available |
-- |
| Mounting |
3-4 Thru Hole |
-- |
| Weight |
≤3.5 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. (Housing Temp.) |
0 |
+55 |
°C |
| Humidity Range |
0-100 |
% |
| Max RF Input |
+3 |
dBm |
| PA Baseplate Shutoff Temperature |
+ 85 |
°C |
