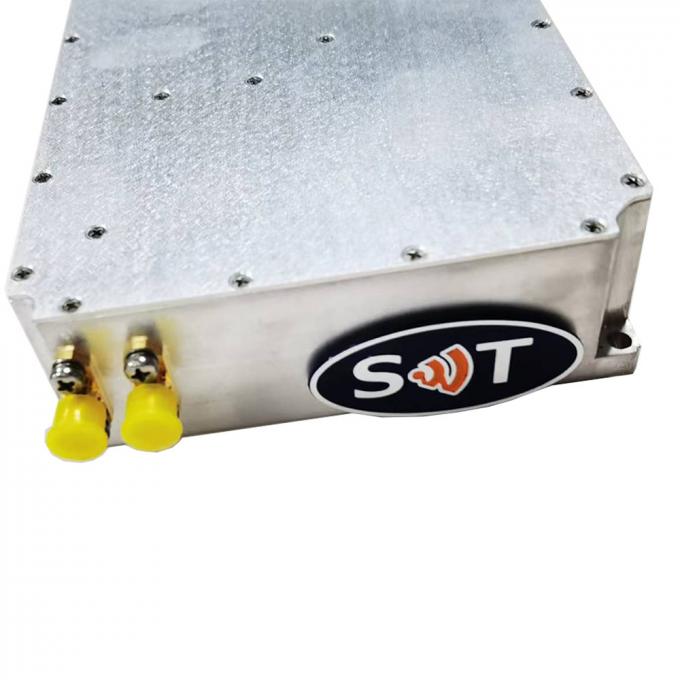

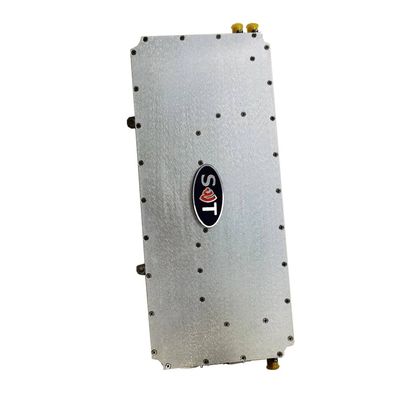

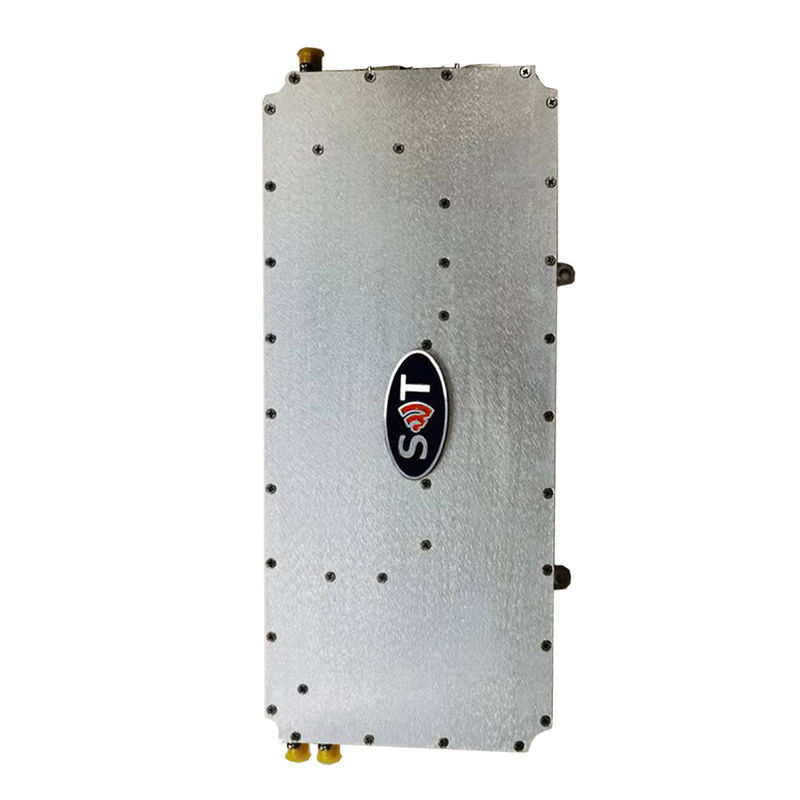

136-174 MHz Communication Module Psat 40 dBm RF VHF Power Amplifier For wireless Telecommunication
Description
The 136-174 MHz 40 dBm RF VHF Power Amplifier is a specialized device designed to amplify radio frequency (RF) signals within the VHF frequency range, specifically from 136 megahertz (MHz) to 174 MHz. It features an output power of 40 dBm.
-
Frequency Range: This power amplifier is tailored for the VHF frequency band, covering frequencies from 136 MHz to 174 MHz. The VHF band finds extensive use in wireless communications, broadcasting, aviation, public safety, and other domains.
-
Output Power: The amplifier provides an output power of 40 dBm, equivalent to 10 watts of power. This high-power output makes it suitable for applications requiring robust signal transmission.
-
Applications: The 136-174 MHz 40 dBm RF VHF Power Amplifier is widely used in aviation communications, satellite communications, public safety communication systems, radio broadcasting, TV transmission, and more. It plays a crucial role in amplifying and transmitting signals in these domains.
-
Specific Requirements: Due to its specific frequency range and high-power output, this power amplifier is particularly suitable for applications that involve signal amplification within the VHF frequency band.
-
Stability and Reliability: These power amplifiers are typically designed for stability and reliability, ensuring long-term operation in various environmental conditions while maintaining consistent performance. This is essential for ensuring signal quality and system stability.
In summary, the 136-174 MHz 40 dBm RF VHF Power Amplifier is designed specifically for amplifying signals within the VHF frequency band. With its high-power output and stable performance, it serves a wide range of VHF RF applications effectively.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
136 |
155 |
174 |
MHz |
| RF INPUT |
|
-10 |
|
dBm |
| PSat Power Output |
|
40 |
|
dBm |
| Gain |
|
50 |
|
dB |
| Power Gain Flatness |
|
2 |
|
dB |
| Input VSWR |
|
1.3 |
|
|
| Operating Voltage |
|
12 |
|
VDC |
| Spurious Signals |
|
|
-60 |
dBc |
| Harmonic Signals |
|
-20 |
|
dBc |
| Current |
|
4 |
|
A |
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (L x W x H) |
150*90*25 |
mm |
| RF Connectors (Input / Output) |
SMA- KFD/ SMA- KFD |
-- |
| DC / Control Connector |
DB9 |
-- |
| Cooling |
Baseplate Conduction - Optional Heatsink Available |
-- |
| Mounting |
3-4 Thru Hole |
-- |
| Weight |
≤1.2 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. (Housing Temp.) |
-40 |
+65 |
°C |
| Humidity Range |
0-100 |
% |
| PA Baseplate Shutoff Temperature |
+ 85 |
°C |
| INPUT/OUTPUT PINS |
| AMPLIFIER CONNECTOR TYPE: |
DB9 |
| TRIAD CABLE PART NUMBER: |
—— |
| PIN NUMBER |
LABEL |
DESCRIPTION |
| 1 |
Amp Enable |
TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 |
GND |
GND |
| 3 |
FWD |
Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault ) |
| 4 |
REV |
Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault ) |
| 5-9 |
NC |
NC |
