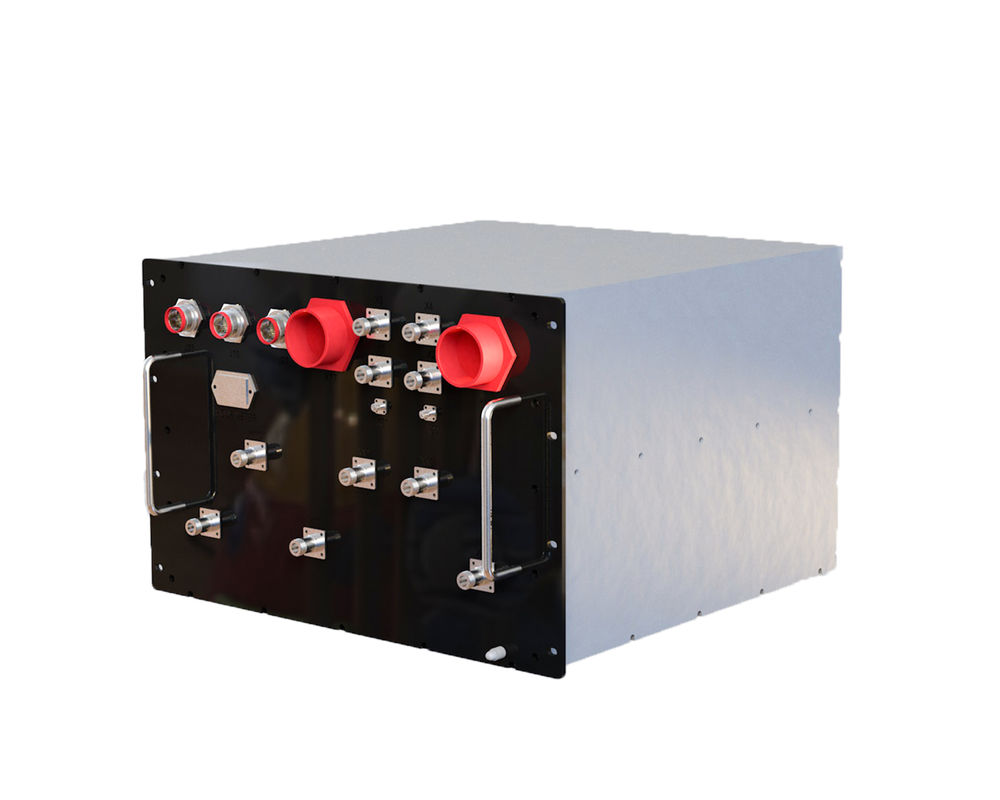

177-433 MHz PSat 60 dBm VHF Power Amplifier VHF Linear Amplifier for EMC Test
Description
The 177-433 MHz PSat 60 dBm VHF Power Amplifier is a specialized RF (Radio Frequency) device designed to amplify signals within the VHF (Very High Frequency) range, specifically from 177 megahertz (MHz) to 433 MHz. It boasts a saturated output power (PSat) of 60 dBm.
-
Frequency Range: This power amplifier is designed to operate within the VHF frequency band, covering frequencies from 177 MHz to 433 MHz. The VHF band is widely used in applications such as wireless communications, broadcasting, aviation, public safety, and more.
-
Saturated Output Power (PSat): The amplifier offers a PSat of 60 dBm, equivalent to 1 kilowatt of power. This high-power output makes it suitable for applications requiring robust signal transmission.
-
Applications: The 177-433 MHz PSat 60 dBm VHF Power Amplifier finds applications in aviation communications, satellite communications, public safety communication systems, radio broadcasting, TV transmission, and other areas where amplification and transmission of VHF signals are crucial.
-
Specific Requirements: With its specific frequency range and high-power output, this power amplifier is particularly suited for applications that involve amplification of signals within the VHF frequency band.
-
Stability and Reliability: These power amplifiers are designed for stability and reliability, ensuring consistent performance in various environmental conditions. This is essential for maintaining signal quality and system stability.
In summary, the 177-433 MHz PSat 60 dBm VHF Power Amplifier is tailored for amplifying signals within the VHF frequency band. Its high-power output and stable performance make it a valuable component in a wide range of VHF RF applications.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
177 |
|
433 |
MHz |
| RF INPUT |
|
0 |
|
dBm |
| PSat Power Output |
|
60 |
|
dBm |
| Gain |
|
60 |
|
dB |
| Power Gain Flatness |
|
3 |
|
dB |
| Input VSWR |
|
1.5 |
|
|
| Operating Voltage |
|
220 |
|
VDC |
| Spurious Signals |
|
|
-60 |
dBc |
| Harmonic Signals |
|
-15 |
|
dBc |
| |
|
|
|
|
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (L x W x H) |
150*90*25 |
mm |
| RF Connectors (Input / Output) |
N-N |
-- |
| DC / Control Connector |
DB15 |
-- |
| Cooling |
Baseplate Conduction - Optional Heatsink Available |
-- |
| Mounting |
|
-- |
| Weight |
≤35 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. (Housing Temp.) |
-20 |
+55 |
°C |
| Humidity Range |
0-100 |
% |
| PA Baseplate Shutoff Temperature |
+ 85 |
°C |
| INPUT/OUTPUT PINS |
| AMPLIFIER CONNECTOR TYPE: |
DB15 |
| TRIAD CABLE PART NUMBER: |
—— |
| PIN NUMBER |
LABEL |
DESCRIPTION |
| 1 |
Amp Enable |
TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 |
GND |
GND |
| 3 |
FWD |
Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault ) |
| 4 |
REV |
Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault ) |
| 5-9 |
NC |
NC |
