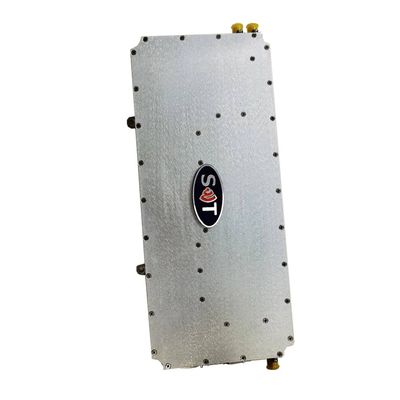

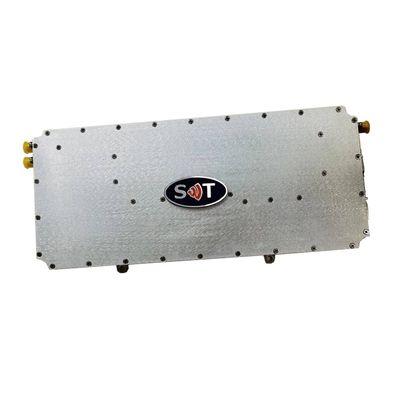

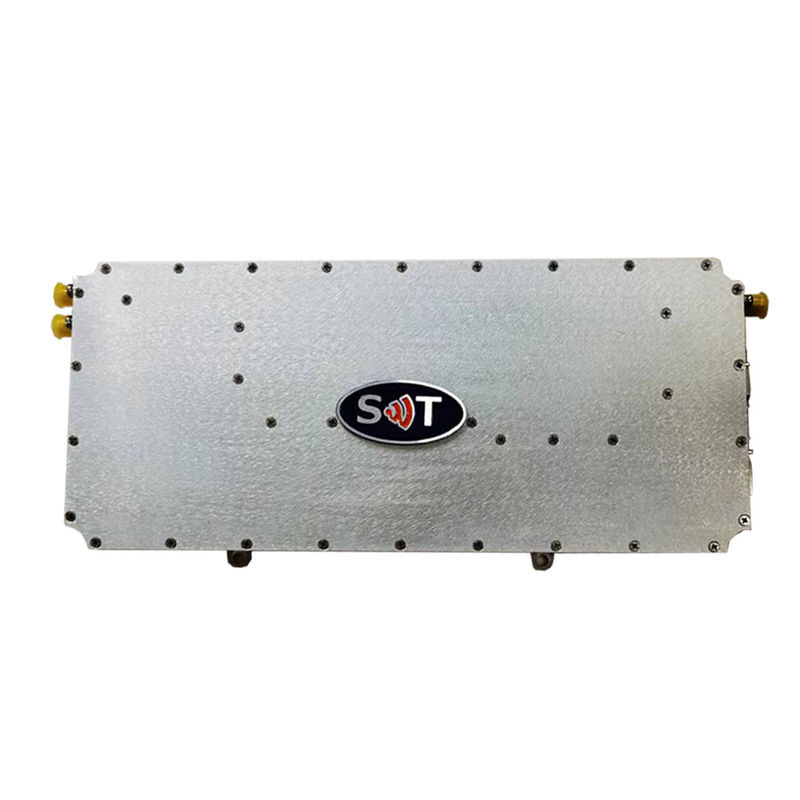

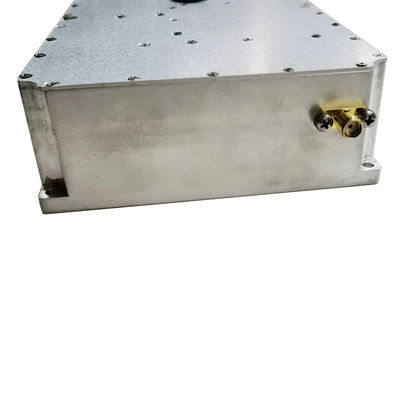

Psat 47 dBm 800 To 1000 MHz UHF Power Amplifier for communication with SMA- KFD/ SMA- KFD RF Connectors
Description
The 800-1000 MHz UHF Power Amplifier is a specialized device designed to amplify radio frequency (RF) signals within the ultra-high frequency (UHF) band, specifically in the frequency range of 800 megahertz (MHz) to 1000 MHz.
-
Frequency Range: This power amplifier operates within the UHF band, covering frequencies from 800 MHz to 1000 MHz. The UHF band is commonly used in various communication systems, including television broadcasting, mobile communications, and RFID (Radio Frequency Identification) systems.
-
Power Output: The amplifier's power output can vary depending on the specific design and application requirements. Typically, UHF power amplifiers provide output power ranging from a few watts to several hundred watts, depending on the application's needs.
-
Applications: The 800-1000 MHz UHF Power Amplifier finds applications in a wide range of fields, including wireless communication systems, television broadcasting stations, radar systems, satellite communications, and industrial RF equipment.
-
Performance Features: These amplifiers are designed to provide high gain and efficiency while maintaining signal integrity and stability. They often include features such as low noise figure, high linearity, and wide bandwidth to meet the demands of modern RF systems.
-
Reliability and Durability: UHF power amplifiers are engineered for reliability and durability, ensuring long-term performance and robustness in various operating conditions.
-
Compact Design: Many UHF power amplifiers are designed to be compact and lightweight, making them suitable for integration into different systems and applications where space is limited.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
800 |
|
1000 |
MHz |
| RF INPUT |
|
0 |
|
dBm |
| PSat Power Output |
|
47 |
|
dBm |
| Gain |
|
47 |
|
dB |
| Power Gain Flatness |
|
1 |
2 |
dB |
| Input VSWR |
|
1.5 |
|
-- |
| Operating Voltage |
|
28 |
|
VDC |
| Spurious Signals |
|
|
-60 |
dBc |
| Harmonic Signals |
|
-20 |
|
dBc |
| In/Out Impedance |
|
50 |
|
Ω |
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (L x W x H) |
162x90x 23 |
mm |
| RF Connectors (Input / Output) |
SMA- KFD/ SMA- KFD |
-- |
| DC Connector |
DB9 |
-- |
| Control Connector |
DB9 |
-- |
| Cooling |
Baseplate Conduction - Optional Heatsink Available |
-- |
| Mounting |
3-4 Thru Hole |
-- |
| Weight |
≤1.5 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. (Housing Temp.) |
0 |
+55 |
°C |
| Humidity Range |
0-100 |
% |
| Max RF Input |
+0 |
dBm |
| High VSWR Protections |
Power Amplifier has open/short port protection
Internal configure Output circulator
|
|
