420-470 MHz Psat 43 dBm UHF broadband amplifier L Band Low Noise Amplifier
  • 420-470 MHz Psat 43 dBm UHF broadband amplifier L Band Low Noise Amplifier

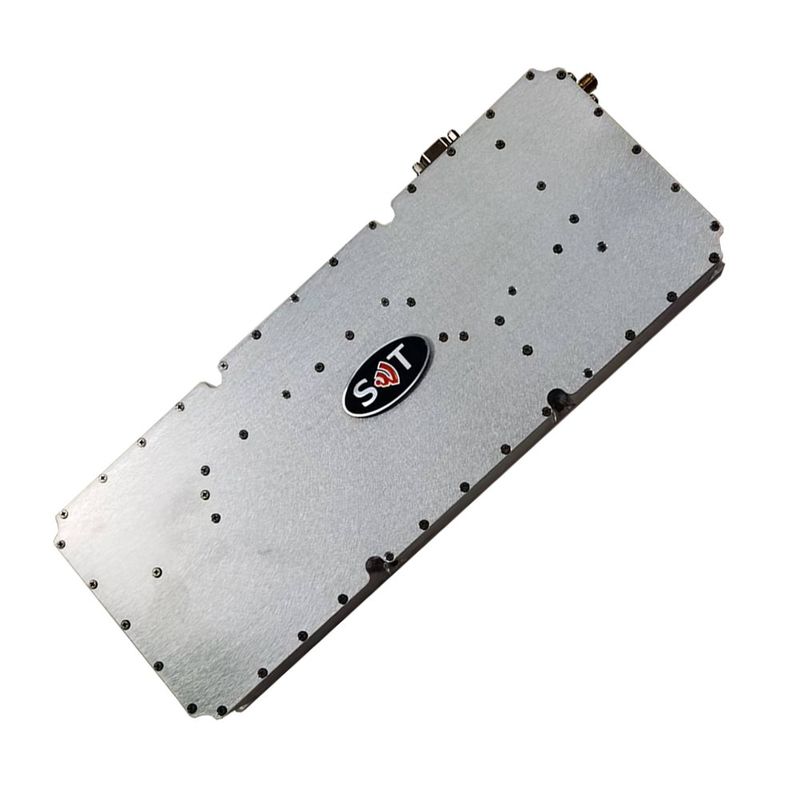

420-470 MHz Psat 43 dBm UHF broadband amplifier L Band Low Noise Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-04200470-43C
Product Details
Dimensions:
180 X120 X 20 Mm
Weight:
≤1.2 Kg
RF Connectors In/out:
SMA- KFD/ SMA- KFD
Operating Frequency:
450 MHz
Psat:
43 DBm
Gain:
46 DB
Input VSWR:
1.5
Power Gain Flatness:
2
Operating Voltage:
28V
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
Operating Temp. (Housing Temp.):
-40~55°C
Applications:
Wireless Communications, Radar Systems, Satellite Communications, Broadcasting, Medical Equipment
High Light:

450MHz uhf broadband amplifier

,

20W uhf broadband amplifier

,

450MHz uhf broadband amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

420-470 MHz Psat 43 dBm UHF broadband amplifier L Band Low Noise Amplifier



Description

The 420-470 MHz Psat 43 dBm UHF broadband amplifier is a specialized device designed to amplify radio frequency (RF) signals within the ultra-high frequency (UHF) band, specifically in the frequency range of 420 MHz to 470 MHz. Here's a detailed introduction to this broadband amplifier:

  1. Frequency Range: This broadband amplifier operates within the UHF band, covering frequencies from 420 MHz to 470 MHz. The UHF band is commonly used in various communication systems, including two-way radios, public safety communications, television broadcasting, and industrial applications.

  2. Psat and Power Output: The amplifier provides a Psat (saturated output power) of 43 dBm, which is equivalent to approximately 20 watts (20W) of power. This power output level is suitable for applications that require moderate to high power amplification within the specified frequency range.

  3. Applications: The 420-470 MHz Psat 43 dBm UHF broadband amplifier finds applications in a wide range of fields, including telecommunications, public safety communications, RF testing and measurement, amateur radio, and industrial RF equipment.

  4. Performance Features: These amplifiers are designed to provide high gain and efficiency while maintaining signal integrity and stability. They often include features such as low noise figure, high linearity, and wide bandwidth to meet the demands of modern RF systems.

  5. Reliability and Durability: UHF broadband amplifiers are engineered for reliability and durability, ensuring long-term performance and robustness in various operating conditions.

  6. Compact Design: Many UHF broadband amplifiers are designed to be compact and lightweight, making them suitable for integration into different systems and applications where space is limited.

In summary, the 420-470 MHz Psat 43 dBm UHF broadband amplifier is an essential component in RF systems operating within the UHF frequency range. It offers high performance, reliability, and versatility, making it suitable for a wide range of communication, broadcasting, and industrial applications.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 420 445 470 MHz
RF INPUT   -3   dBm
PSat Power Output   43   dBm
Gain   46   dB
Power Gain Flatness   2   dB
Input VSWR   1.5
Operating Voltage   28   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
Switching Time   1.0 2.0 uS



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 180 x120 x 20 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector J30J-21 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-8 Thru Hole --
Weight ≤1.2 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +55 °C
Humidity Range 0-100 %
Max RF Input +5 dBm
PA Baseplate Shutoff Temperature + 85 °C





INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: J30J-21
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-5 +VDC +28V
6-10 GND Ground
11 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
12 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
13 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
14-21 NC NC

420-470 MHz Psat 43 dBm UHF broadband amplifier L Band Low Noise Amplifier 0
