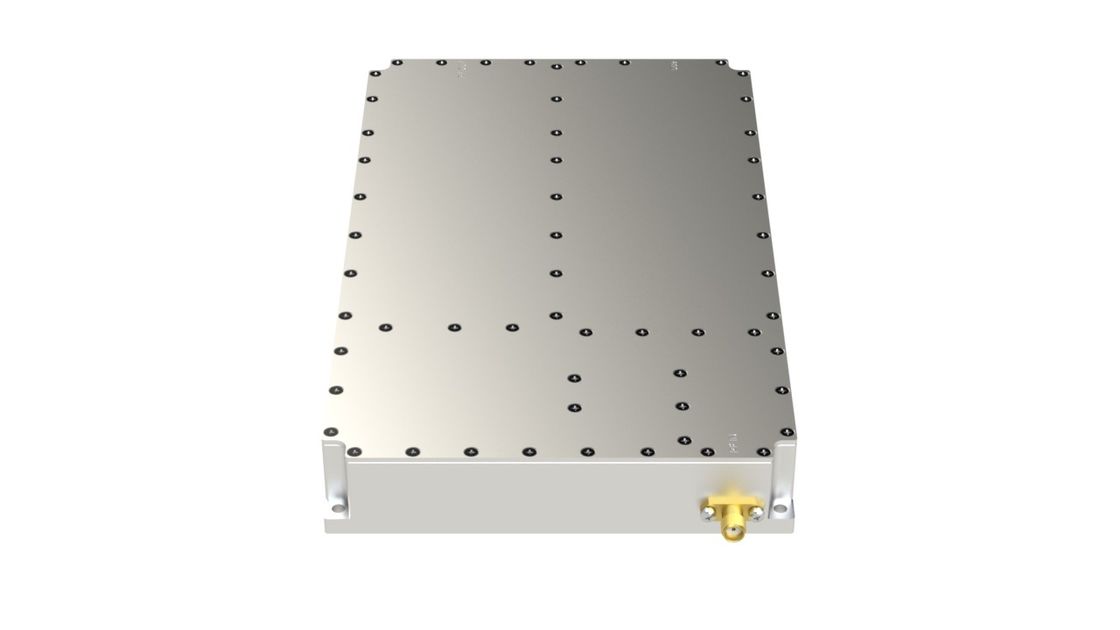

600-960 MHz Psat 53 dBm High Power UHF Amplifier RF Linear Amplifier For wireless communications, radar systems
  • 600-960 MHz Psat 53 dBm High Power UHF Amplifier RF Linear Amplifier For wireless communications, radar systems

600-960 MHz Psat 53 dBm High Power UHF Amplifier RF Linear Amplifier For wireless communications, radar systems

Place of Origin China
Brand Name SWT
Model Number SW-PA-06000960-53C
Product Details
Operating Frequency:
600-960 MHz
RF Connectors In/out:
SMA- KFD/ N-type Female
Psat:
53 DBm
Gain:
53 DB
Input VSWR:
1.5
Power Gain Flatness:
±1.5dB
In/Out Impedance:
50Ω
Spurious Signals:
-60dBc
Harmonic Signals:
-25dBc
Operating Temp. (Housing Temp.):
-22-55°C
Dimensions:
483×178×465 Mm
Weight:
≤20 Kg
Applications:
Wireless Communications, Radar Systems, Satellite Communications, Broadcasting, Medical Equipment
Packing:
Standard Packing
High Light:

600MHz high power uhf amplifier

,

200W high power uhf amplifier

,

rf linear amplifier 53dBm

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

600-960 MHz Psat 53 dBm High Power UHF Amplifier RF Linear Amplifier For wireless communications, radar systems



Description

The 600-960 MHz Psat 53 dBm High Power UHF Amplifier is a specialized device designed to amplify radio frequency (RF) signals within the ultra-high frequency (UHF) band, specifically in the frequency range of 600 MHz to 960 MHz. Here's a detailed introduction to this high-power amplifier:

  1. Frequency Range: This amplifier operates within the UHF band, covering frequencies from 600 MHz to 960 MHz. The UHF band is commonly used in various communication systems, including mobile communications, television broadcasting, wireless microphone systems, and industrial applications.

  2. Psat and Power Output: The amplifier provides a Psat (saturated output power) of 53 dBm, which is equivalent to approximately 200 watts (200W) of power. This high-power output level is suitable for applications that require substantial power amplification within the specified frequency range.

  3. Applications: The 600-960 MHz Psat 53 dBm High Power UHF Amplifier finds applications in a wide range of fields, including telecommunications infrastructure, broadcasting stations, RF testing and measurement, wireless data transmission, and industrial RF equipment.

  4. Performance Features: These amplifiers are designed to provide high gain and efficiency while maintaining signal integrity and stability. They often include features such as low noise figure, high linearity, and wide bandwidth to meet the demands of modern RF systems.

  5. Reliability and Durability: High-power UHF amplifiers are engineered for reliability and durability, ensuring long-term performance and robustness in various operating conditions.

  6. Compact Design: Despite their high power output, many high-power UHF amplifiers are designed to be compact and efficient, making them suitable for integration into different systems and applications where space and power consumption are considerations.

In summary, the 600-960 MHz Psat 53 dBm High Power UHF Amplifier is a critical component in RF systems requiring substantial power amplification within the UHF frequency range. It offers high performance, reliability, and versatility, making it suitable for a wide range of communication, broadcasting, testing, and industrial applications that demand significant power output.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 600   960 MHz
RF INPUT   0   dBm
Psat Power Output   53   dBm
Gain   53   dB
Power Gain Flatness   ±1.5   dB
In/Out Impedance   50   Ω
Input Return Loss   -15   dB
Spurious Signals     -60 dBc
Harmonic Signals@ Pout-200W(dB)   -25   dBc
Operating Voltage   220   AC
Current@pout: 53 dbm CW     2 A



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x H x D) 483×178×465 mm
RF Connectors (Input / Output) SMA- KFD/ N-type Female --
Control Connector DB9 --
AC Connector XCM
Power indicator light green(Normal)
Standing wave fault indicator light red(Alarm )
Cooling Heat Sink with Integrated Cooling Fan --
Mounting   --
Weight ≤20 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -22 +55 °C
Humidity Range 0-90 %
Max RF Input +10 dBm
PA Baseplate Shutoff Temperature +85 °C
High VSWR Protections

Power Amplifier has open/short port protection

Configure Input and Output Isolators





INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 GND GND
3 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
4 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
5-9 NC NC



INPUT PINS
AMPLIFIER CONNECTOR TYPE: XCM
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 L firing line
2 N null line
3 FG rack earth



Human-computer interaction interface
Human-computer interaction type 2.8-inch LCD display
Output information

Monitoring parameters include:

1,Output power;

2,temperature;

3,Fault information(High VSWR)
