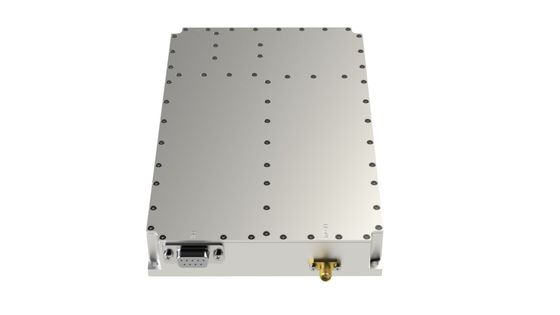

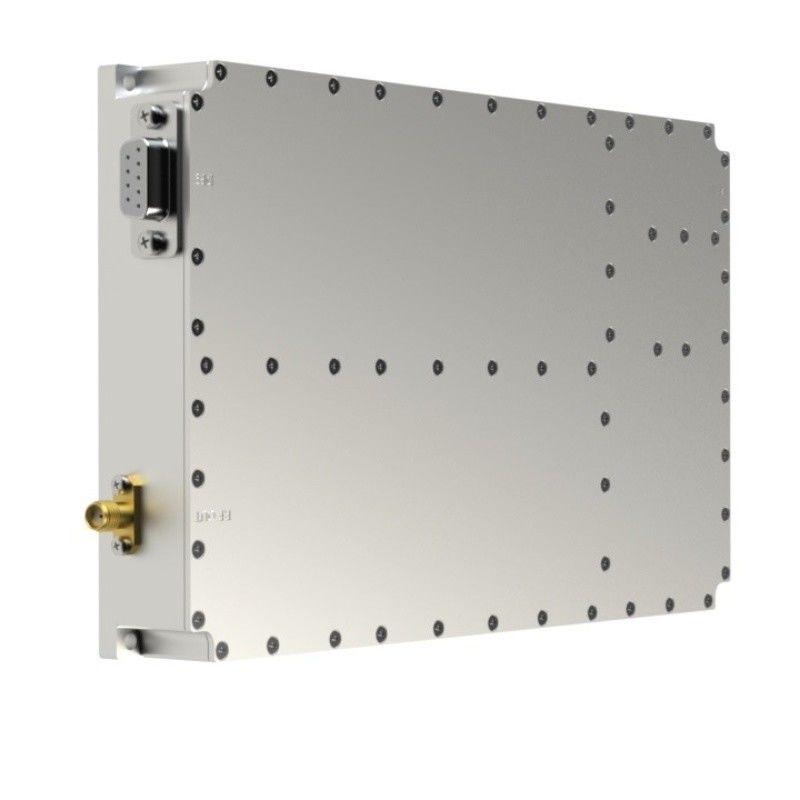

800-1000 MHz 100 W Psat 50 dBm UHF Power Amplifier RF Linear Amplifier For wireless communications
  • 800-1000 MHz 100 W Psat 50 dBm UHF Power Amplifier RF Linear Amplifier For wireless communications
  • 800-1000 MHz 100 W Psat 50 dBm UHF Power Amplifier RF Linear Amplifier For wireless communications

800-1000 MHz 100 W Psat 50 dBm UHF Power Amplifier RF Linear Amplifier For wireless communications

Place of Origin China
Brand Name SWT
Model Number SW-PA-08001000-50C
Product Details
Operating Frequency:
800-1000 MHz
RF Connectors In/out:
SMA- KFD/ SMA- KFD
Psat:
50 DBm
Gain:
50 DB
Input VSWR:
1.5
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
RF INPUT:
0dBm
Packing:
Standard Packing
RF Connectors (Input / Output):
SMA- KFD/ SMA- KFD
Weight:
≤1.2 Kg
Dimensions:
200×130×28 Mm
Operating Temp. (Housing Temp.):
-40~65°C
Applications:
Wireless Communications, Radar Systems, Satellite Communications, Broadcasting, Medical Equipment
High Light:

900MHz UHF Power Amplifier

,

100W UHF Power Amplifier

,

900MHz uhf linear amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

800-1000 MHz 100 W Psat 50 dBm UHF Power Amplifier RF Linear Amplifier For wireless communications



Description

The 800-1000 MHz 100W Psat (saturated output power) 50 dBm RF Power Amplifier is designed for high-frequency applications.

  1. Frequency Range: Covering the 800MHz to 1000MHz frequency band, it is suitable for various wireless communication, RF testing, and industrial applications in high-frequency environments.

  2. High Power Output: With a Psat of 100W (saturated output power), it delivers robust signal output capabilities, ideal for applications requiring high power output.

  3. High Gain: The amplifier achieves a gain of 50 dBm, effectively enhancing input signals to improve system sensitivity and performance.

  4. Stability and Reliability: Utilizing advanced amplifier design and protection circuits, it ensures stable and reliable operation under various working conditions.

  5. Multiple Protection Features: Includes overheat protection, overload protection, etc., to safeguard the equipment during prolonged operation.

This power amplifier is suitable for wireless communication base stations, RF testing systems, industrial radar, and other high-power, high-gain applications in the 800-1000 MHz frequency range.

Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 800 900 1000 MHz
RF INPUT   0   dBm
PSat Power Output   50   dBm
Gain   50   dB
Power Gain Flatness   3   dB
Input VSWR   1.5
Operating Voltage   28   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
Switching Time   1.0 2.0 uS



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 200×130×28 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB15 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-8 Thru Hole --
Weight ≤1.2 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +65 °C
Humidity Range 0-100 %
Max RF Input +5 dBm
PA Baseplate Shutoff Temperature + 85 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-4 +VDC +28V
5-8 GND Ground
9 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
10 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
11 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
12-15 NC NC

800-1000 MHz 100 W Psat 50 dBm UHF Power Amplifier RF Linear Amplifier For wireless communications 0



Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs
