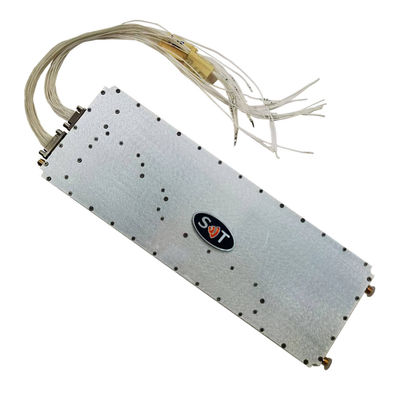

Customized Robust Design 900-928 MHz PSat 43 dBm UHF Power Amplifier for Telecommunications
  • Customized Robust Design 900-928 MHz PSat 43 dBm UHF Power Amplifier for Telecommunications
  • Customized Robust Design 900-928 MHz PSat 43 dBm UHF Power Amplifier for Telecommunications
  • Customized Robust Design 900-928 MHz PSat 43 dBm UHF Power Amplifier for Telecommunications

Customized Robust Design 900-928 MHz PSat 43 dBm UHF Power Amplifier for Telecommunications

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-09000928-43C
Product Details
Operating Frequency:
914 MHz
PSat Power Output:
43 DBm
Gain:
45 DB
Input VSWR:
1.5
RF INPUT:
-2dBm
Power Gain Flatness:
3dB
Operating Voltage:
28V
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
Applications:
Telecommunications,Broadcasting,Military,Commercial
Weight:
≤3 Kg
Dimensions:
240x180 X 30 Mm
Packing:
Standard Packing
RF Connectors In/out:
SMA- KFD/ SMA- KFD
High Light:

914MHz UHF Power Amplifier

,

20W UHF Power Amplifier

,

uhf linear amp commercial

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Customized Robust Design 900-928 MHz PSat 43 dBm UHF Power Amplifier for Telecommunications



Description

This UHF power amplifier operates within the frequency range of 900-928 MHz, delivering a saturated output power (PSat) of 43 dBm. Here is a detailed introduction:

Key Features:

  1. Frequency Range: 900-928 MHz
  2. Saturated Output Power: 43 dBm (approximately 20 W)
  3. High Efficiency: Designed to ensure maximum power conversion efficiency.
  4. Linearity: Maintains high linearity for distortion-free signal amplification.
  5. Robust Design: Built to withstand harsh environmental conditions, suitable for both indoor and outdoor applications.
  6. Cooling Mechanism: Equipped with an efficient cooling system to ensure stable performance over extended periods.
  7. Compact Size: Designed for easy integration into various systems due to its compact form factor.

Applications:

  1. Telecommunications: Ideal for boosting signals in wireless communication systems.
  2. Broadcasting: Suitable for radio and TV broadcasting applications.
  3. Military: Can be used in military communication devices and jamming equipment.
  4. Commercial: Useful in commercial applications requiring reliable UHF amplification.
  5. Industrial: Applicable in industrial RF systems for process monitoring and control.

Technical Specifications:

  • Input Power: Typically designed to accept standard input power levels compatible with most RF systems.
  • Gain: High gain to amplify low-level signals effectively.
  • Impedance: Standard 50-ohm input/output impedance for compatibility with other RF components.
  • Noise Figure: Low noise figure to minimize signal degradation.
  • VSWR (Voltage Standing Wave Ratio): Optimized for minimal signal reflection and maximum power transfer.
  • Power Supply: Typically requires a DC power supply with specific voltage and current ratings.

Summary:

The 900-928 MHz PSat 43 dBm UHF Power Amplifier is a high-performance, versatile component designed for a wide range of RF amplification needs. Its robust construction, high efficiency, and reliability make it an essential element in various communication and broadcasting systems, ensuring enhanced signal strength and quality across its operational bandwidth.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 900 914 928 MHz
RF INPUT   -2   dBm
PSat Power Output   43   dBm
Gain   45   dB
Power Gain Flatness   3   dB
Input VSWR   1.5
Operating Voltage   28   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
Switching Time   1.0 2.0 uS



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 240x180 x 30 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC Connector J30J-21 --
Control Connector J30J-15
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-8 Thru Hole --
Weight ≤3 kg



ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +55 °C
Humidity Range 0-100 %
Max RF Input +5 dBm
PA Baseplate Shutoff Temperature + 85 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: J30J-15
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 TTL logic Amplifier Enable (5V) / Disable (0V)
2 TTL logic Ground N/A
3 Forward power monitoring

Analog voltage relative to forward power

0 V to 3.3 V

4 Reflected power monitoring

Analog voltage relative to reverse power

0V to 3.3 V

5 Temperature Monitoring 0~+3.3 V
6 Temperature Alarm in case temperature exceeds 100 C shutdown power amplifier and also generate alarm ( 3.3 V on this pin) Otherwise this pin should remain low (0 V)
7 Current Monitoring 0~3.3 V corresponding to consumed current
8 VSWR alarm In case high VSWR (Reflected power >40 dBm) shut down Power amplifier. Also generate alarm on this pin (3.3 V ) otherwise this pin should remain low (0 V)
9-15 NC



DC PINS
AMPLIFIER CONNECTOR TYPE: J30J-21
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-10 +VDC +28V
11-21 GND Ground
