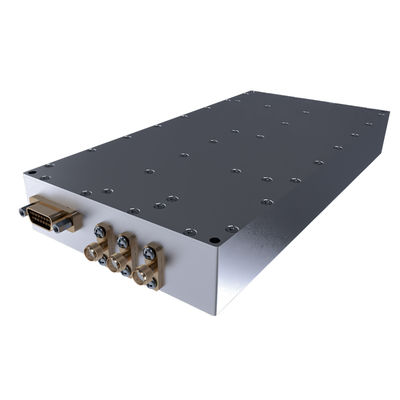

960-1215 MHz P1dB 50 dBm L Band Power Amplifier RF Power Amplifier
  • 960-1215 MHz P1dB 50 dBm L Band Power Amplifier  RF Power Amplifier

960-1215 MHz P1dB 50 dBm L Band Power Amplifier RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-09601215-50C
Product Details
Packing:
Standard Packing
Dimensions:
200*120*25 Mm
Weight:
≤1.5 Kg
RF Connectors In/out:
SMA- KFD/ SMA- KFD
Operating Frequency:
1087 MHz
Psat:
50 DBm
Gain:
50 DB
Input VSWR:
1.5
High Light:

1087MHz Band Power Amplifier

,

100W L Band Power Amplifier

,

100w rf power amplifier 50dB

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



L Band Power Amplifier 960-1215 MHz P1dB 50 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 960 1087 1215 MHz
RF INPUT   0   dBm
P-1dB Output Power   50   dBm
Gain   50   dB
Power Gain Flatness   2 3 dB
Input VSWR   1.5
Operating Voltage   28   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
Current   12   A
Third Order Intercept Point (dBm) 2Tone@44dBm/Tone,A=1 MHz   33   dBc







MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 200*120*25 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB9 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-4 Thru Hole --
Weight ≤1.5 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -20 +55 °C
Humidity Range 0-100 %
Max RF Input +3 dBm
PA Baseplate Shutoff Temperature + 85 °C





INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-3 +VDC +28V
4-6 GND Ground
7 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
8 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
9 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
