1164-1616 MHZ Psat 56.8 dBm L Band Power Amplifier RF Driver Amplifier
  • 1164-1616 MHZ Psat 56.8 dBm L Band Power Amplifier  RF Driver Amplifier

1164-1616 MHZ Psat 56.8 dBm L Band Power Amplifier RF Driver Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-11641616-52C
Product Details
Packing:
Standard Packing
Dimensions:
240 X180 X 50 Mm
Weight:
≤3 Kg
RF Connectors In/out:
SMA- KFD/ SMA- KFD
Operating Frequency:
1390 MHz
Psat:
56.8 DBm
Gain:
56.8 DB
Input VSWR:
<2
High Light:

1390MHZ L Band Power Amplifier

,

150W L Band Power Amplifier

,

rf driver amplifier 56.8dBm

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



L Band Power Amplifier 1164-1616 MHZ Past 56.8 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 1164 1390 1616 MHz
PSat Power Output 150   200 W
RF INPUT for rated PSat   -5   dBm
Gain@ PSat 56.8     dB
Gain Flatness-small signal     ±1.5 dB
Gain Adjust Range 20     dB
Gain Adjust Step 0.5   1 dB
Input and Output VSWR 1.5   2.5
Duty Cycle   100   %
Input Return Loss     -10 dB
Noise Figure @ Max Gain     7 dB
3rd order intercept point 54     dBm
2nd/3rd harmonics @ P1dB -20/-20     dBc
Spurious Signals -70   -60 dBc
IMD3     12 dBc
Efficiency 30   65 %
Operating Voltage   28   VDC
Current Consumption (DC)     10 A









MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 240 x180 x 50 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector J30J-21 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-6 Thru Hole --
Weight ≤3 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +55 °C
Humidity Range 0-100 %
Max RF Input 0 dBm
PA Baseplate Shutoff Temperature + 85 °C





INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: J30J-21
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-5 +VDC +28V
6-10 GND Ground
11 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
12 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
13 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
14 D0 Gain Adjust:Digital Control Input (5V TTL)
15 D1 Gain Adjust:Digital Control Input (5V TTL)
16 D2 Gain Adjust:Digital Control Input (5V TTL)
17 D3 Gain Adjust:Digital Control Input (5V TTL)
18 D4 Gain Adjust:Digital Control Input (5V TTL)
19 D5 Gain Adjust:Digital Control Input (5V TTL)
20-21 NC NC

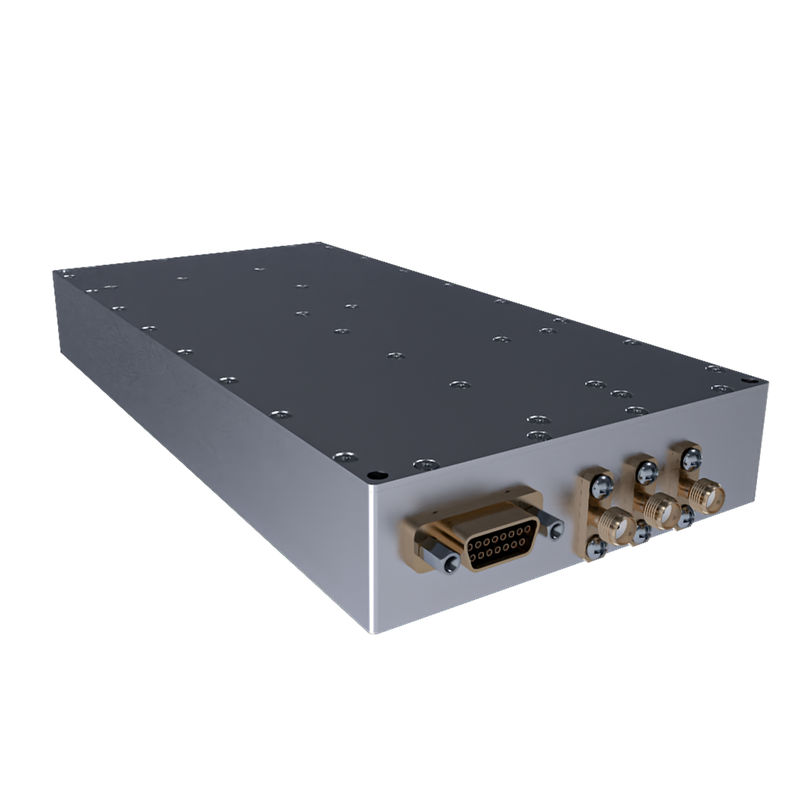

1164-1616 MHZ Psat 56.8 dBm L Band Power Amplifier  RF Driver Amplifier 0
