1600-2500 MHz 10 W Psat 40 dBm L Band Power Amplifier RF Power Amplifier
  • 1600-2500 MHz 10 W Psat 40 dBm L Band Power Amplifier RF Power Amplifier

1600-2500 MHz 10 W Psat 40 dBm L Band Power Amplifier RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-16002500-40C
Product Details
Packing:
Standard Packing
Dimensions:
200*120*25 Mm
Weight:
≤1.2 Kg
RF Connectors In/out:
SMA- KFD/ SMA- KFD
Operating Frequency:
1600-2500 MHz
Psat:
40 DBm
Gain:
40 DB
Input VSWR:
1.5
High Light:

1600MHZ L Band Power Amplifier

,

10W L Band Power Amplifier

,

rf amplifier module 40dBm

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



L Band Power Amplifier 1600-2500 MHz 10 W Psat 40 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 1600   2500 MHz
RF INPUT (Channel A)   0   dBm
PSat Power Output(Channel A)   40   dBm
Gain(Channel A)   40   dB
RF INPUT (Channel B)   0   dBm
PSat Power Output(Channel B)   40   dBm
Gain(Channel B)   40   dB
Power Gain Flatness   3   dB
Input VSWR   1.5
Operating Voltage   28   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
Current   4   A









MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 200*120*25 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB9 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-4 Thru Hole --
Weight ≤1.2 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +65 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 85 °C
Reflected Power for shutdown 40 dBm





INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 Amp Enable(Channel A) TTL Hi= Enable, TTL Lo = Disable or No Connection
2 Amp Enable(Channel B) TTL Hi= Enable, TTL Lo = Disable or No Connection
3 GND GND
4-5 VCC 28V
6-7 GND GND
8-9 NC NC

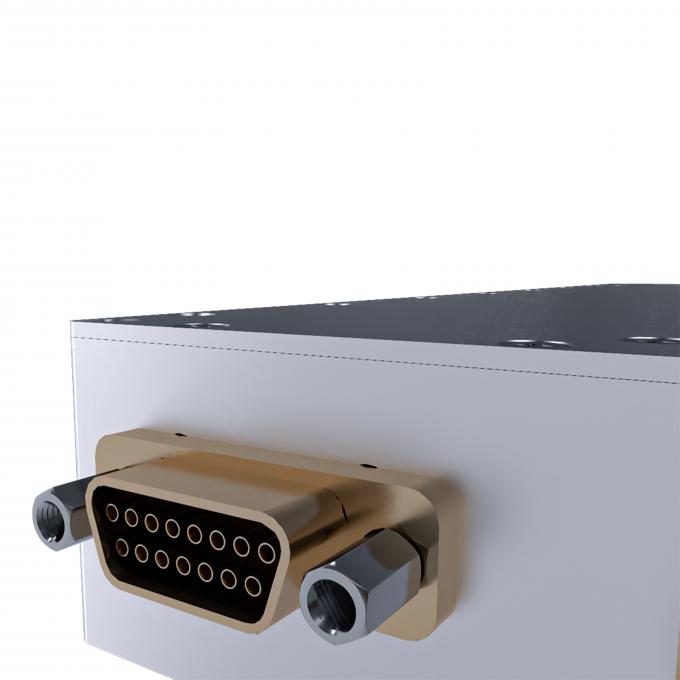

1600-2500 MHz 10 W Psat 40 dBm L Band Power Amplifier RF Power Amplifier 0




1600-2500 MHz 10 W Psat 40 dBm L Band Power Amplifier RF Power Amplifier 1

1600-2500 MHz 10 W Psat 40 dBm L Band Power Amplifier RF Power Amplifier 2
