1800-2200 MHz L Band Amplifier 100 W Psat 50 dBm RF Linear Amplifier
  • 1800-2200 MHz L Band Amplifier 100 W Psat 50 dBm RF Linear Amplifier

1800-2200 MHz L Band Amplifier 100 W Psat 50 dBm RF Linear Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-18002200-50C
Product Details
Packing:
Standard Packing
Dimensions:
250×130×28 Mm
Weight:
≤1.2 Kg
RF Connectors In/out:
SMA- KFD/ SMA- KFD
Operating Frequency:
1800-2200 MHz
Psat:
50 DBm
Gain:
50 DB
Input VSWR:
1.5
High Light:

2000MHZl band amplifier

,

l band amplifier 100W

,

rf linear amplifier 100W

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



L Band Power Amplifier 1800-2200 MHz 100W Psat 50 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 1800 2000 2200 MHz
RF INPUT   0   dBm
PSat Power Output   50   dBm
Gain   50   dB
Power Gain Flatness   3   dB
Input VSWR   1.5
Operating Voltage   28   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
Switching Time   1.0 2.0 uS









MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 250×130×28 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB15 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-8 Thru Hole --
Weight ≤1.2 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +65 °C
Humidity Range 0-100 %
Max RF Input +5 dBm
PA Baseplate Shutoff Temperature + 85 °C





INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-4 +VDC +28V
5-8 GND Ground
9 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
10 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
11 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
12-15 NC NC

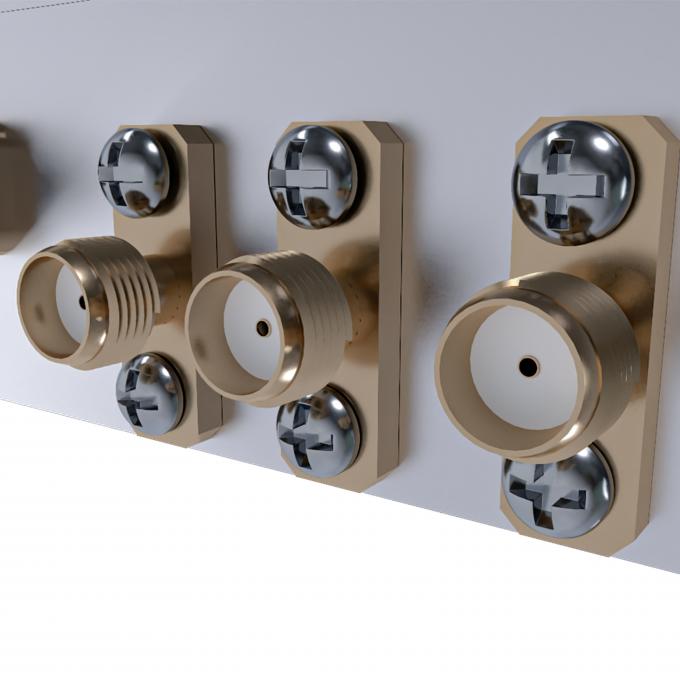

1800-2200 MHz L Band Amplifier 100 W Psat 50 dBm RF Linear Amplifier 0
