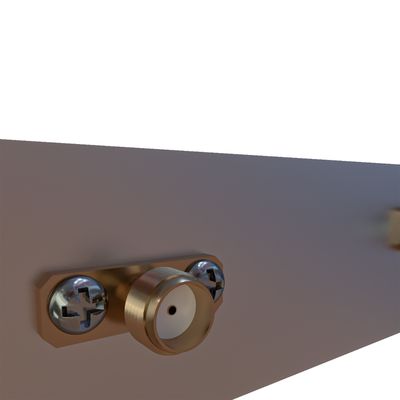

2.65 To 3.0 GHZ S Band High Power Amplifier Psat 20 dBm RF Power Amplifier
  • 2.65 To 3.0 GHZ S Band High Power Amplifier Psat 20 dBm RF Power Amplifier
  • 2.65 To 3.0 GHZ S Band High Power Amplifier Psat 20 dBm RF Power Amplifier

2.65 To 3.0 GHZ S Band High Power Amplifier Psat 20 dBm RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-26503000-20C
Product Details
Packing:
Standard Packing
Dimensions:
80 X70 X 22 Mm
Weight:
≤1 Kg
RF Connectors In/out:
SMA- KFD/ SMA- KFD
Operating Frequency:
2.65 GHz
Psat:
20 DBm
Gain:
40 DB
Input VSWR:
1.5
Highlight:

2.65GHZ s band high power amplifier

,

3.0GHZ s band high power amplifier

,

radio frequency amplifier 40dB

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



S Band Power Amplifier 2.65-3.0 GHZ Psat 20 dBm Rf Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 2.65   3 GHz
RF INPUT   -20   dBm
PSat Output Power (OUT1)   20   dBm
PSat Output Power (OUT2)   8   dBm
Gain1   40   dB
Gain2   28   dB
Power Gain Flatness   ±1   dB
Input VSWR   1.5   --
Operating Voltage   12   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc









MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 80 x70 x 22 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC Connector Feed capacitor --
Control Connector Feed capacitor --
Cooling Baseplate Conduction --
Mounting 3-4 Thru Hole --
Weight ≤1 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +55 °C
Humidity Range 0-100 %
Max RF Input -10 dBm
High VSWR Protections

Power Amplifier has open/short port protection

Internal configure Output circulator

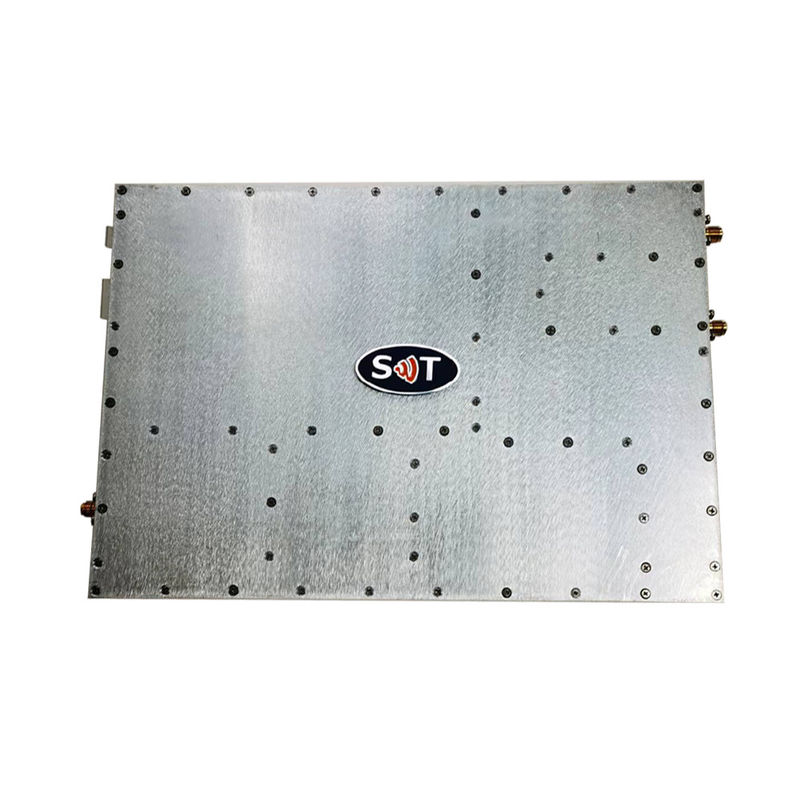

2.65 To 3.0 GHZ S Band High Power Amplifier Psat 20 dBm RF Power Amplifier 0
