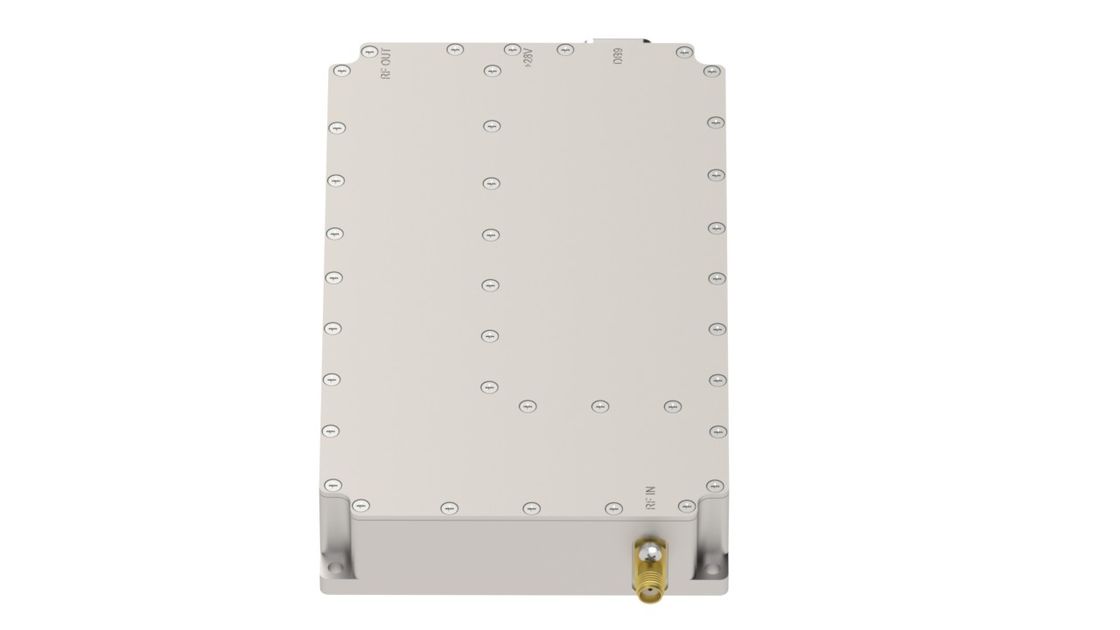

S Band Power Amplifier 2700-2900 MHz Past 50 dBm RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
2700 |
|
2900 |
MHz |
| RF INPUT |
|
8 |
|
dBm |
| PSat Power Output |
|
50 |
|
dBm |
| Gain |
|
42 |
|
dB |
| Power Gain Flatness |
|
±1 |
|
dB |
| Pulse Width |
|
100 |
|
us |
| Cycle |
|
1000 |
|
us |
| Duty Cycle |
|
10% |
|
|
| Input VSWR |
|
1.5 |
|
|
| Operating Voltage |
|
42.5 |
|
V |
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |
| Dimensions (L x W x H) |
578.05×247.5×48.15 |
mm |
| RF Connectors (Input / Output) |
BMA-KF/ BMA-KF |
-- |
| DC &Control Connector |
D-SUB 15 |
-- |
| Normal operation LED Indication |
green(Normal) |
|
| Transistor failure LED Indication |
red(Fault) |
|
| Excessive pulse width LED Indication |
red(Fault) |
|
| Cooling |
Baseplate Conduction |
-- |
| Mounting |
—— |
-- |
| Weight |
≤3 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. (Housing Temp.) |
-40 |
+55 |
°C |
| Humidity Range |
0-90 |
% |
| Max RF Input |
+15 |
dBm |
| PA Baseplate Shutoff Temperature |
+ 85 |
°C |
| High VSWR Protections |
Power Amplifier has open/short port protection
Configure Input and Output Isolators
|
|
| INPUT/OUTPUT PINS |
| AMPLIFIER CONNECTOR TYPE: |
D-SUB 15 |
| TRIAD CABLE PART NUMBER: |
—— |
| PIN NUMBER |
LABEL |
DESCRIPTION |
| 1 |
GND |
42VDC RTN |
| 2 |
VDC |
42VDC PREAMP A |
| 3 |
CW DET* |
CHANNEL A CW FAULT* |
| 4 |
BIT DET* |
CHAN A PREAMP REG FAULT * |
| 5 |
BIT DET |
CHAN A PREAMP REG FAULT |
| 6 |
NC |
NC |
| 7 |
NC |
NC |
| 8 |
Amp Enable |
CHAN A RF BLANKING GATE |
| 9 |
GND |
42VDC RTN |
| 10 |
VDC |
42VDC PREAMP A |
| 11 |
CW DET |
CHANNEL A CW FAULT |
| 12 |
NC |
NC |
| 13 |
CURR DET (-) |
CH A XMTR CURR PULSE (-) |
| 14 |
CURR DET(+) |
CH A XMTR CURR PULSE (+) |
| 15 |
Amp Enable * |
CHAN A RF BLANKING GATE* |
