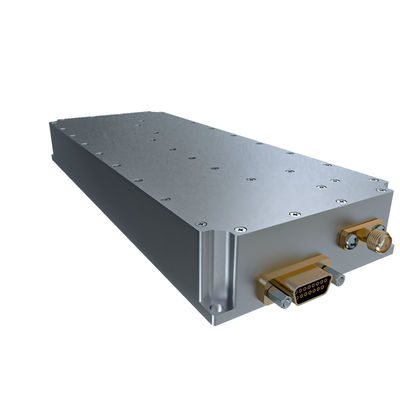

C Band Power Amplifier 3700-4200 MHZ Past 53 dBm RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 3700 | 4200 | MHz | |
RF INPUT | 0 | dBm | ||
Psat Power Output | 53 | dBm | ||
Gain | 53 | dB | ||
Power Gain Flatness | ±1 | dB | ||
In/Out Impedance | 50 | Ω | ||
Input Return Loss | -15 | dB | ||
Spurious Signals | -60 | dBc | ||
Harmonic Signals@ Pout-200W(dB) | -25 | dBc | ||
Operating Voltage | 220 | AC | ||
Current@po: 53 dbm CW | 2.5 | A |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x H x D) | 483×178×465 | mm |
RF Connectors (Input / Output) | SMA- KFD/ N-type Female | -- |
Control Connector | DB9 | -- |
AC Connector | XCM | |
Power indicator light | green(Normal) | |
Standing wave fault indicator light | red(Alarm ) | |
Cooling | Heat Sink with Integrated Cooling Fan | -- |
Mounting | -- | |
Weight | ≤20 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -22 | +55 | °C |
Humidity Range | 0-90 | % | |
Max RF Input | +10 | dBm | |
PA Baseplate Shutoff Temperature | +85 | °C | |
High VSWR Protections |
Power Amplifier has open/short port protection Configure Input and Output Isolators |
INPUT/OUTPUT PINS | |||
AMPLIFIER CONNECTOR TYPE: | DB9 | ||
TRIAD CABLE PART NUMBER: | —— | ||
PIN NUMBER | LABEL | DESCRIPTION | |
1 | Amp Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection | |
2 | GND | GND | |
3 | FWD | Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault ) | |
4 | REV | Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault ) | |
5-9 | NC | NC |
INPUT PINS | |||
AMPLIFIER CONNECTOR TYPE: | XCM | ||
TRIAD CABLE PART NUMBER: | —— | ||
PIN NUMBER | LABEL | DESCRIPTION | |
1 | L | firing line | |
2 | N | null line | |
3 | FG | rack earth |
Human-computer interaction interface | |
Human-computer interaction type | 2.8-inch LCD display |
Output information |
Monitoring parameters include: 1,Output power; 2,temperature; 3,Fault information(High VSWR) |
