3700-4200 MHZ Past 66 dBm C Band Power Amplifier RF High Frequency Power Amplifier
  • 3700-4200 MHZ Past 66 dBm C Band Power Amplifier RF High Frequency Power Amplifier

3700-4200 MHZ Past 66 dBm C Band Power Amplifier RF High Frequency Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-37004200-66C
Product Details
Packing:
Standard Packing
Dimensions:
483×356×465 Mm
Weight:
≤30 Kg
RF Connectors In/out:
SMA- KFD/ DIN
Operating Frequency:
3950 MHz
Psat:
66 DBm
Gain:
66 DB
Input VSWR:
1.5
High Light:

3950MHZ C Band Power Amplifier

,

4000W C Band Power Amplifier

,

RF high frequency power amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

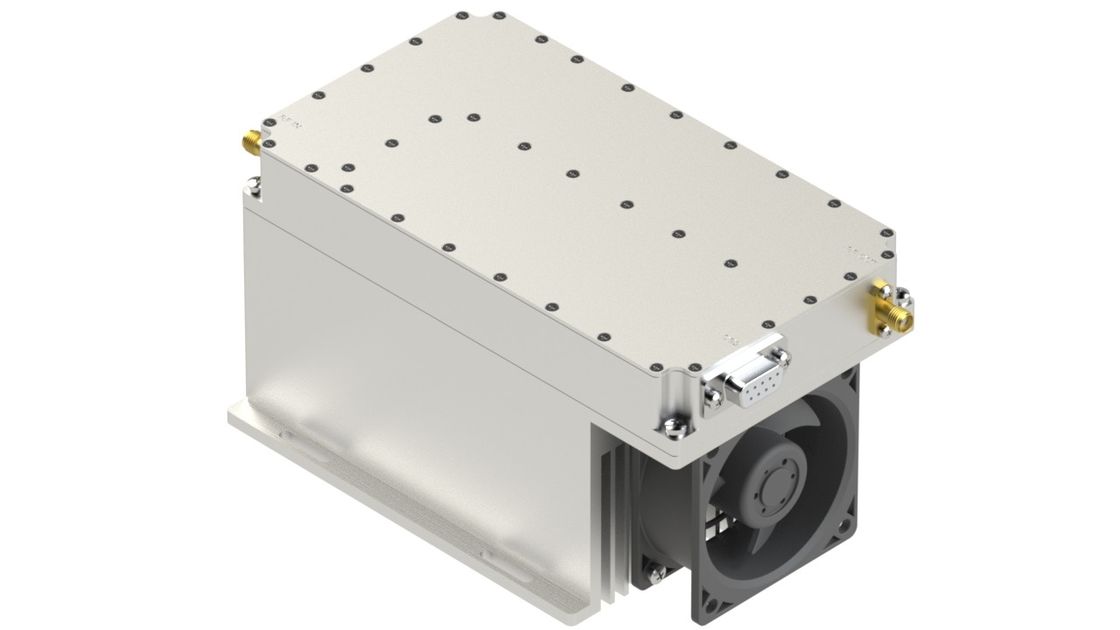

C Band Power Amplifier 3700-4200 MHZ Past 66 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.


RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 3700   4200 MHz
RF INPUT   0   dBm
Psat Power Output   66   dBm
Gain   66   dB
Power Gain Flatness   ±1   dB
In/Out Impedance   50   Ω
Input Return Loss   -15   dB
Spurious Signals     -60 dBc
Harmonic Signals@ Pout-4KW(dB)   -25   dBc
Operating Voltage   220   AC
Cycle, Pulse Width, Duty Cycle   4ms,100us,2.5%









MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x H x D) 483×356×465 mm
RF Connectors (Input / Output) SMA- KFD/ DIN --
Control Connector DB15 --
AC Connector MS / D-Sub
Power indicator light green(Normal)
Standing wave fault indicator light red(Alarm )
Cooling Heat Sink with Integrated Cooling Fan --
Mounting   --
Weight ≤30 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -20 +55 °C
Humidity Range 0-90 %
Max RF Input +10 dBm
PA Baseplate Shutoff Temperature +85 °C
High VSWR Protections

Power Amplifier has open/short port protection

Configure Input and Output Isolators







INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 GND GND
3 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
4 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
5-15 NC NC



INPUT PINS
AMPLIFIER CONNECTOR TYPE: MS / D-Sub
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 L firing line
2 N null line
3 FG rack earth
