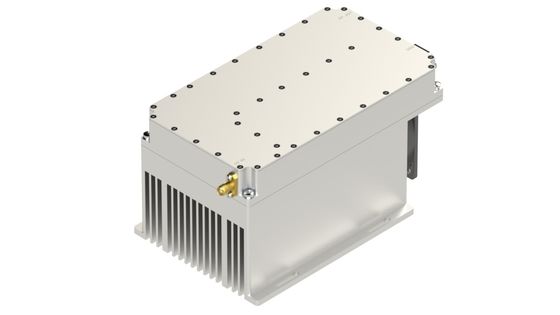

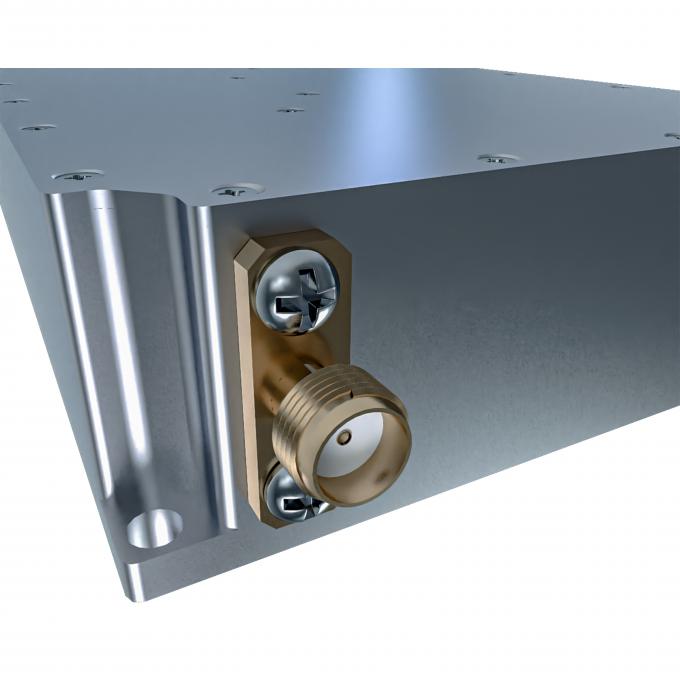

4200-4500 MHZ Psat 53 dBm C Band Amplifier RF Amplifier Module
  • 4200-4500 MHZ Psat 53 dBm C Band Amplifier RF Amplifier Module

4200-4500 MHZ Psat 53 dBm C Band Amplifier RF Amplifier Module

Place of Origin China
Brand Name SWT
Model Number SW-PA-42004500-53C
Product Details
Packing:
Standard Packing
Dimensions:
483×128×465 Mm
Weight:
≤15 Kg
RF Connectors In/out:
SMA- KFD/ N-type Female
Operating Frequency:
4350 MHz
Psat:
53 DBm
Gain:
53 DB
Input VSWR:
1.5
High Light:

4350MHZ c band amplifier

,

200W c band amplifier

,

rf amplifier module 53dBm

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

C Band Power Amplifier 4200-4500 MHZ Psat 53 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 4200 4350 4500 MHz
RF INPUT   0   dBm
Psat Power Output   53   dBm
Gain   53   dB
Power Gain Flatness   ±1   dB
In/Out Impedance   50   Ω
Input Return Loss   -15   dB
Spurious Signals     -60 dBc
Harmonic Signals@ Pout-200W(dB)   -25   dBc
Operating Voltage   220   AC
Current@po: 53 dbm CW     2.5 A









MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x H x D) 483×128×465 mm
RF Connectors (Input / Output) SMA- KFD/ N-type Female --
Control Connector DB9 --
AC Connector XCM
Power indicator light green(Normal)
Standing wave fault indicator light red(Alarm )
Cooling Heat Sink with Integrated Cooling Fan --
Mounting   --
Weight ≤15 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -22 +55 °C
Humidity Range 0-90 %
Max RF Input +10 dBm
PA Baseplate Shutoff Temperature +85 °C
High VSWR Protections

Power Amplifier has open/short port protection

Configure Input and Output Isolators







INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 GND GND
3 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
4 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
5-9 NC NC



INPUT PINS
AMPLIFIER CONNECTOR TYPE: XCM
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1 L firing line
2 N null line
3 FG rack earth



Human-computer interaction interface
Human-computer interaction type 2.8-inch LCD display
Output information

Monitoring parameters include:

1,Output power;

2,temperature;

3,Fault information(High VSWR)
