5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC 50ohm
  • 5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC  50ohm

5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC 50ohm

Place of Origin China
Brand Name SWT
Model Number SW-PA-57005900-43C
Product Details
Packing:
Standard Packing
Dimensions:
127 X75 X 22mm
Weight:
≤0.9 Kg
RF Connectors In/out:
SMA- KFD/ SMA- KFD
Operating Frequency:
5800 MHz
Psat:
43 DBm
Gain:
43 DB
Input VSWR:
1.5
High Light:

5800MHZc band amplifier

,

20W c band amplifier

,

20w rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

C Band Power Amplifier 5700-5900 MHZ Psat 43 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 5700 5800 5900 MHz
RF INPUT   0   dBm
PSat Power Output   43   dBm
Gain   43   dB
Power Gain Flatness   3 4 dB
Input VSWR   1.5
Operating Voltage   28   VDC
Spurious Signals     -60 dBc
Harmonic Signals   -20   dBc
Switching Time   1.0 2.0 uS









MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 127 x75 x 22 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB9 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-4 Thru Hole --
Weight ≤0.9 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -25 +65 °C
Humidity Range 0-90 %
Max RF Input +3 dBm
PA Baseplate Shutoff Temperature +85 °C





INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-3 +VDC +28V
4-6 GND Ground
7 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
8 FWD Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault )
9 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )

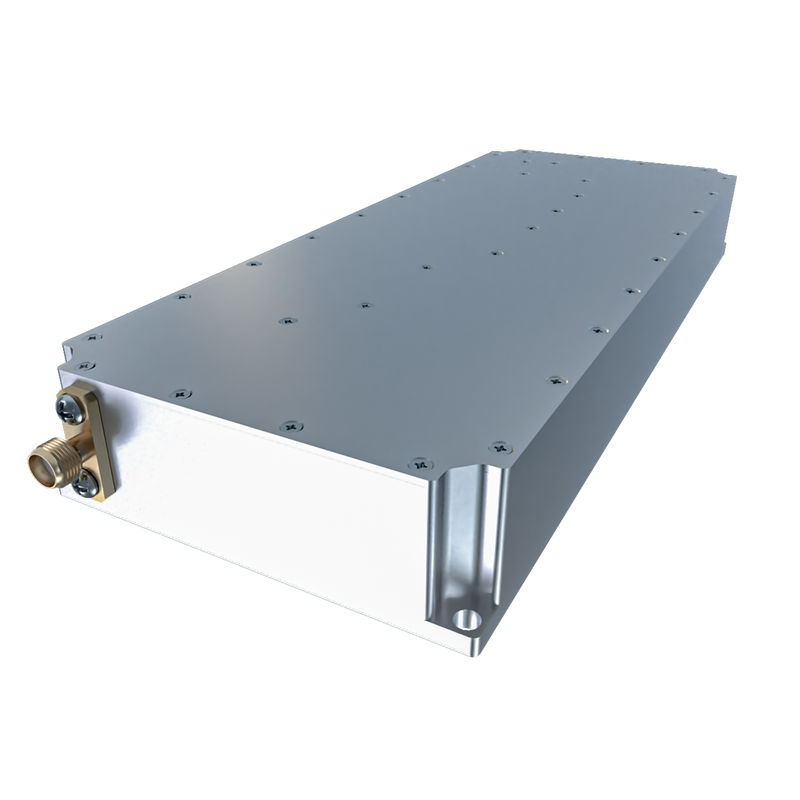

5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC  50ohm 0






5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC  50ohm 1

5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC  50ohm 2

Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.

In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.

In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.

5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC  50ohm 3

5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC  50ohm 4

Shipment:

5700-5900 MHZ Psat 43 dBm C Band Amplifier RF Power Amplifier 28VDC  50ohm 5
