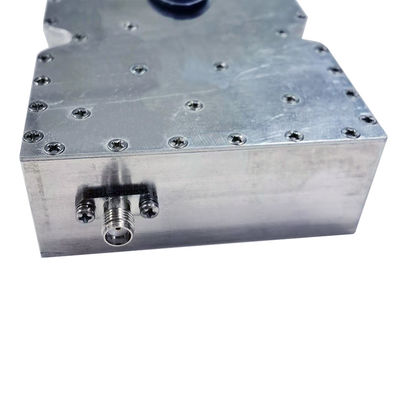

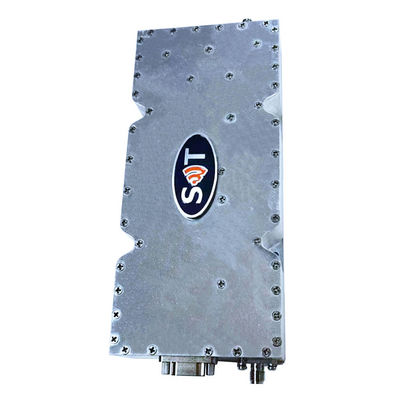

8000 - 11000 MHZ X Band Power Amplifier Psat 43 dBm RF Power Amplifier
  • 8000 - 11000 MHZ X Band Power Amplifier Psat 43 dBm RF Power Amplifier
  • 8000 - 11000 MHZ X Band Power Amplifier Psat 43 dBm RF Power Amplifier

8000 - 11000 MHZ X Band Power Amplifier Psat 43 dBm RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-800011000-43C
Product Details
Packing:
Standard Packing
Dimensions:
6 X 2.5 X 1.06 In
Weight:
17 Oz.
RF Connectors In/out:
SMA-F / SMA-F
Operating Frequency:
8000 MHz
Psat:
43 DBm
Gain:
43 DB
Input VSWR:
1.5
High Light:

8000MHZ X Band Power Amplifier

,

11000MHZ X Band Power Amplifier

,

8000MHZ solid state linear amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

X Band Power Amplifier 8000-11000 MHZ Psat 43 dBm Rf Power Amplifier



Description

This class AB GaN module is designed for both military and commercial applications. It is capable of supporting any signal type and modulation format, including but not limited to 3-4G telecom, WLAN, OFDM, DVB, and CW/AM/FM. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.





FEATURES

Over / Under / Reverse Voltage Protection        Thermal

Shutdown DC Supply (VDS) +28V                     Optional

Heatsink



Specification



Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 8000   11000 MHz
PSat Power Output   +43.0   dBm
Gain   43   dB
Gain Flatness   2.0 2.5 dB 1
Input Return Loss -14 -15   dB
Operating Voltage   +28   VDC
Current Draw   2.6   A
Quiescent Current Draw   0.75   A
Switching Time   1.0 2.0 u

1 – Gain flatness recorded represents a peak-peak measurement across the entire operating band. Gain flatness is typically much lower across significant portions of this band. Consult the gain response plots for details if available.







MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 6 x 2.5 x 1.06 in
RF Connectors (Input / Output) SMA-F / SMA-F --
DC / Control Connector 7W2 Male --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 6-32 Thru Hole --
Weight 17 oz.
Weight with Heatsink 27 oz.

ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +85 °C
Humidity Range 0-100 %
Altitude 0-30,000 ft.
Shock / Vibration MIL-STD-810 and equivalents --
Max RF Input 0 dBm
PA Baseplate Shutoff Temperature + 90 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: 7W2 MALE
TRIAD CABLE PART NUMBER: CBL21
PIN NUMBER LABEL DESCRIPTION
A1 GND Ground
1 TEMP Temp Monitor: Temp in DegC = (Vout - 0.5V) *100
2 Amp Enable TTL Hi or No Connection = Enable, TTL Lo = Disable
3 REV Reverse Power Detection
4 SGND Signal Ground
5 FWD Forward Power Detection
A2 +VDC 28V



Heat Sink
Model Number Description
  Heat Sink with Integrated Cooling Fan(Dimensions to be decided)


8000 - 11000 MHZ X Band Power Amplifier Psat 43 dBm RF Power Amplifier 0






8000 - 11000 MHZ X Band Power Amplifier Psat 43 dBm RF Power Amplifier 1

8000 - 11000 MHZ X Band Power Amplifier Psat 43 dBm RF Power Amplifier 2
