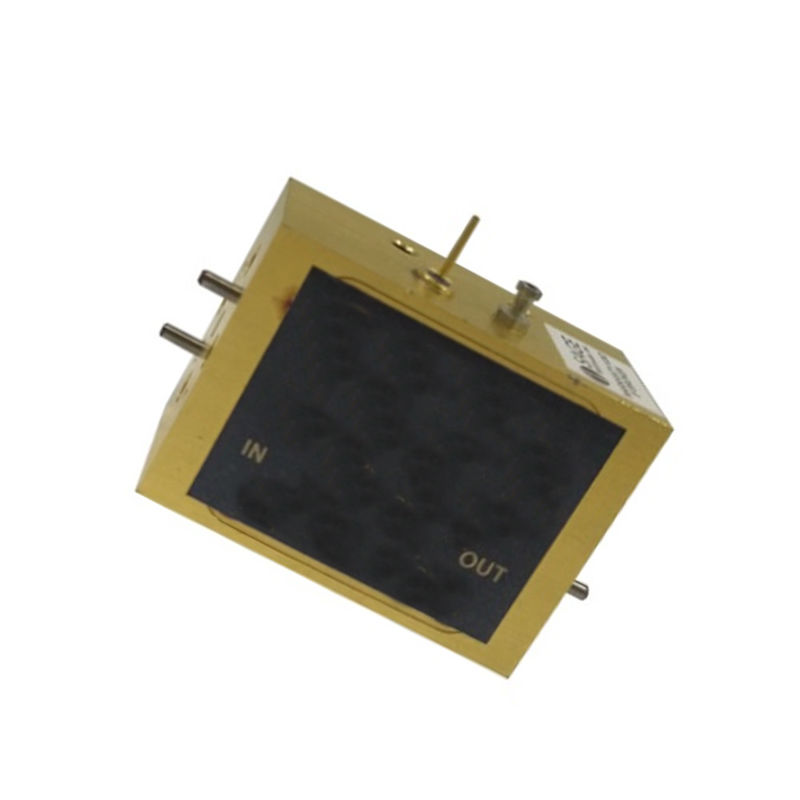

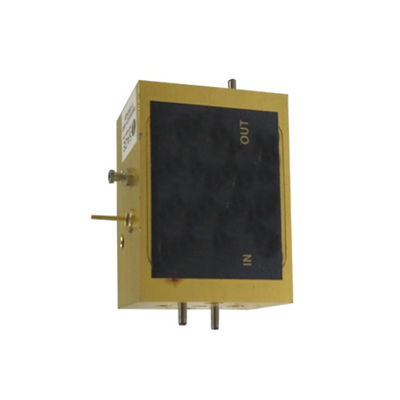

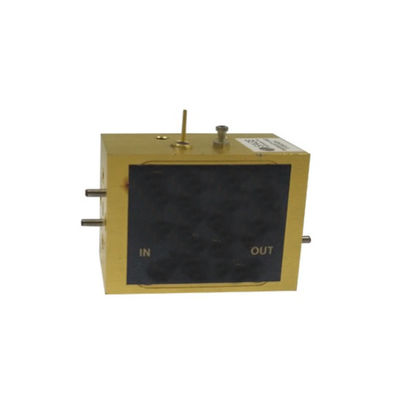

100 To 115 GHz S Band Power Amplifier Psat 16 dBm RF Bidirectional RF Amplifier
  • 100 To 115 GHz S Band Power Amplifier Psat 16 dBm  RF Bidirectional RF Amplifier
  • 100 To 115 GHz S Band Power Amplifier Psat 16 dBm  RF Bidirectional RF Amplifier
  • 100 To 115 GHz S Band Power Amplifier Psat 16 dBm  RF Bidirectional RF Amplifier
  • 100 To 115 GHz S Band Power Amplifier Psat 16 dBm  RF Bidirectional RF Amplifier

100 To 115 GHz S Band Power Amplifier Psat 16 dBm RF Bidirectional RF Amplifier

Place of Origin China
Brand Name SWT
Model Number SWT-1041241015-0808-E1
Product Details
Packing:
Standard Packing
Dimensions:
1.40” (L) X 1.00” (W) X 0.75” (H)
Weight:
1.6 Oz
Bias:
Solder Pin
Operating Frequency:
100 To 115 GHz
Psat:
+16 DBm
Gain:
10 DB
Input Return Loss:
10 DB
High Light:

100GHz S Band Power Amplifier

,

115GHz S Band Power Amplifier

,

10dB Gain Rf bidirectional rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

S Band Power Amplifier 100 to 115 GHz Psat 16 dBm RF Power Amplifier



Description

Model SWT-1041241015-0808-E1 is a F-band power amplifier with a typical small signal gain of 10 dB and a nominal P1dB of 15 dBm across the frequency range of 100 to 115 GHz. The DC power requirement for the amplifier is +8 VDC/250 mA. The input and output port configuration offers an inline structure with WR- 08 waveguides and UG-387/U-M anti-cocking flanges. Other port configurations are available under different model numbers.





Features:                                                    Applications:

· Moderate Output Power                            · Communication Systems

· Low Power Consumption                          · Radar System

Electrical Specifications:



Parameter Minimum Typical Maximum
Frequency 100 GHz   115 GHz
Gain   10 dB
P1dB   +15 dBm
Psat   +16 dBm
Pin     15 dBm
Input Return Loss   10 dB
Output Return Loss   10 dB
DC Voltage   +8 VDC +12 VDC
DC Supply Current   250 mA
Specification Temperature   +25 ˚C
Operating Temperature 0 ˚C   +50 ˚C



Mechanical Specifications:



Item Specification
Input WR-08 Waveguide with UG-387/U-M Anti-Cocking Flange
Output WR-08 Waveguide with UG-387/U-M Anti-Cocking Flange
Bias Solder Pin
Case Material Aluminum
Finish Gold Plated
Weight 1.6 Oz
Size 1.40” (L) X 1.00” (W) X 0.75” (H)
Outline BG-SF-2-A

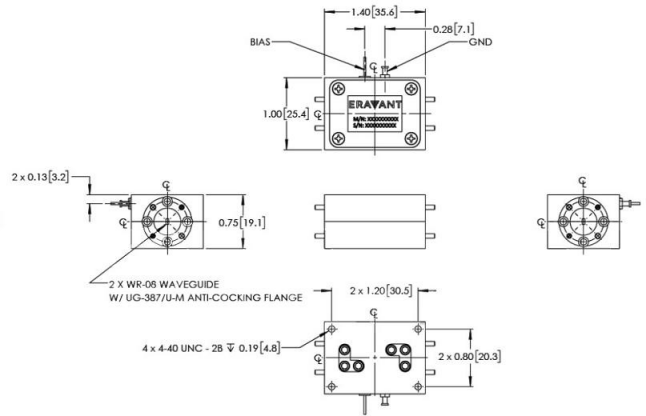

Mechanical Outline: (Unless otherwise specified, all dimensions are in inches [millimeters])

100 To 115 GHz S Band Power Amplifier Psat 16 dBm  RF Bidirectional RF Amplifier 0



Note:

· All data presented is collected from a sample lot. Actual data may vary unit to unit.

· All testing was performed under +25 ˚C case temperature.

· SAGE Millimeter, Inc. reserves the right to change the information presented without notice.



Caution:

· Exceeding absolute maximum ratings shown will damage the device.

· The device is static sensitive. Always follow ESD rules when working with the device.

· The case temperature of the device shall never exceed +50 ˚C. Use proper heatsink or fan if necessary.
