30 To 3000 mhz S Band Power Amplifier P1dB 30 dBm Broadband High Power Amplifier

S Band Power Amplifier 30 to 3000 MHz P1dB 30 dBm RF Power Amplifier

Description

FEATURES

Specifications:



Frequency:                             0.03- 3.0 GHz

Gain:                                      27 dB Typ , 25 dB Min

Gain Flatness:                       ±0.8 dB Typ, ± 1.0 dB Max

Output P1dB:                         30 dBm Typ , 29 dBm Min

Output IP3:                            39Bm Typ

VSWR Input:                          1.5 dB Typ, 1.7:1 Max

VSWR Output:                       1.6 dB Typ, 1.8:1 Max

Reverse Isolation:                  45 dB Min

Non-Harmonic Spurious:       -60 dBc Max

DC Voltage:                           +11.5 V to +13 V DC

DC Supply Current:                220 mA Typ



Environmental Ratings:



Temperature:             -40ºC to +75 ºC Operating

                                  -55 ºC to +125 ºC Non-Operating

Vibration:                MIL-STD-202F, Method 204D Cond. B

Altitude:                     MIL-STD-202F, Method 105C Cond. B

Temperature Cycle:   MIL-STD-202F, Method 107D Cond. A

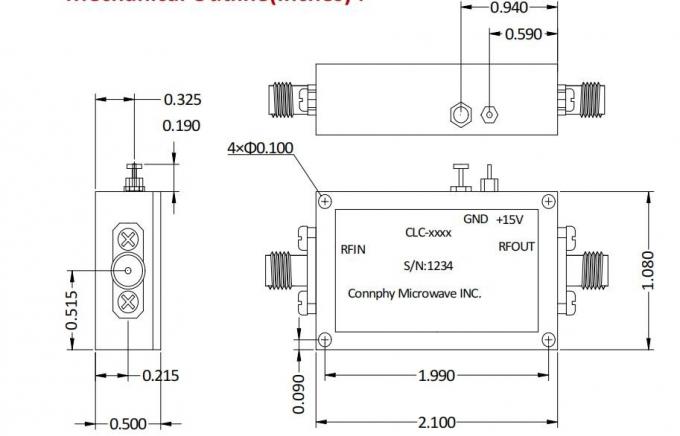

Mechanical Outline(Inches) :
