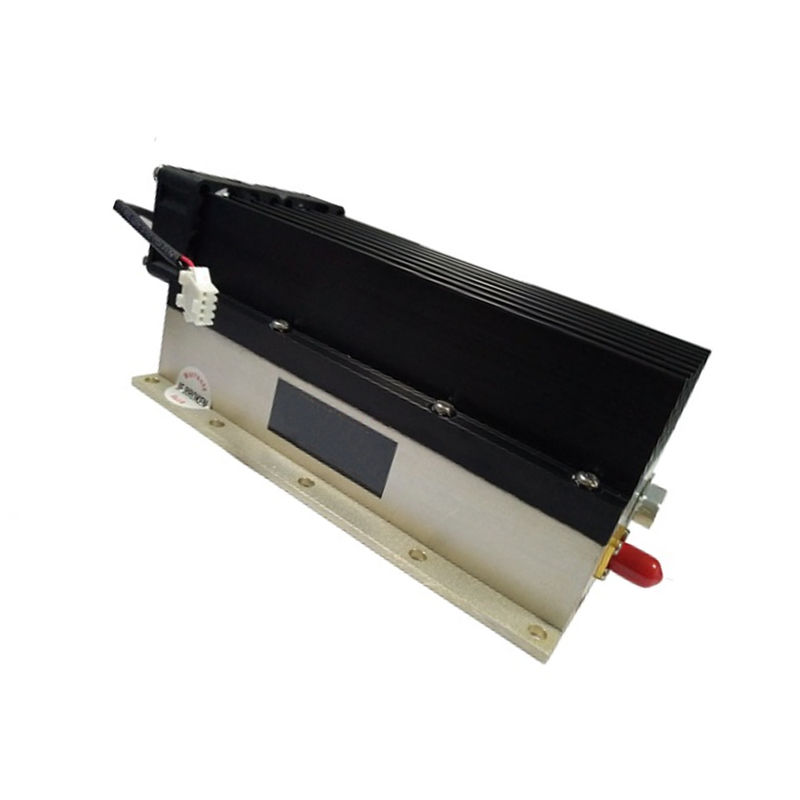

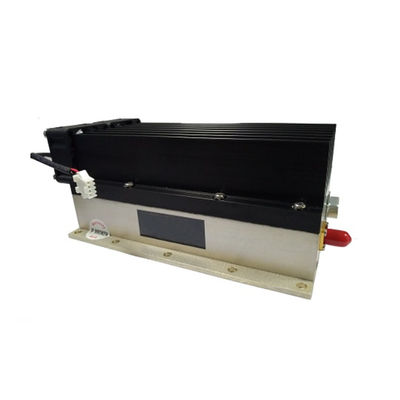

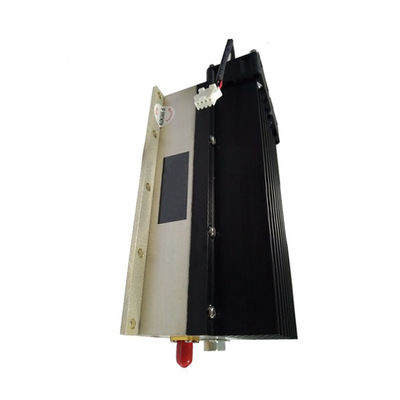

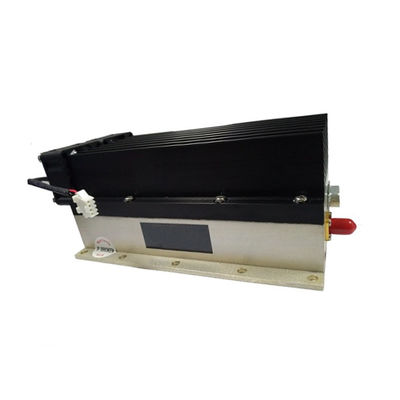

High Output Power 10 KHz ~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory
  • High Output Power 10 KHz ~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory
  • High Output Power 10 KHz ~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory
  • High Output Power 10 KHz ~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory
  • High Output Power 10 KHz ~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory

High Output Power 10 KHz ~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory

Place of Origin China
Brand Name SWT
Certification CE
Model Number SWT-10K30M-5353-N
Product Details
RF Connectors In/Out:
N-F
Weight:
20 Kg
Operating Frequency:
10 KHz -30 MHz
Output Psat:
200 W Min
Power Gain:
53 DB Min
AC Voltage::
100V To 240V AC
Packing:
Standard Packing
Dimensions:
430 X 560 X 133 Mm
Applications:
Military Applications,Test And Measurement,Scientific Research
High Light:

10KHz VHF Power Amplifier

,

30MHz VHF Power Amplifier

,

vhf amplifier 200w 53dB

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

High Output Power 10 KHz ~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory



Description

The 10 KHz ~ 30 MHz 200W VHF Power Amplifier is designed for applications that require high-power amplification over a wide frequency range in the VHF band. This amplifier is ideal for communication systems, broadcasting, military applications, test and measurement, and other RF applications requiring reliable and high-performance power amplification.

Key Features:

  1. Wide Frequency Range: Operates over a frequency range from 10 KHz to 30 MHz, covering a broad spectrum of VHF applications.
  2. High Output Power: Provides a saturated output power (Psat) of 200 watts.
  3. High Gain: Offers a gain of 53 dB, allowing for significant amplification of input signals.
  4. Low Noise Figure: Ensures minimal noise introduction, maintaining high signal integrity.
  5. Robust Design: Built with durable materials and housed in a rugged enclosure to withstand harsh operating conditions.
  6. Efficient Cooling: Equipped with a cooling system to maintain optimal operating temperatures, ensuring reliable performance.
  7. Protection Features: Includes built-in protection against over-temperature, over-voltage, and over-current conditions to safeguard the amplifier.
  8. Linear Performance: Provides excellent linearity, reducing distortion and preserving the quality of the amplified signal.

Applications:
Communication Systems: Enhances signal strength for various communication systems, including VHF radios.
Broadcasting: Suitable for AM, VHF, and other broadcasting applications, ensuring clear and strong signal transmission.
Military Applications: Provides high-power amplification for military communication systems, improving range and reliability.
Test and Measurement: Essential for RF testing and measurement in laboratory and field environments.
Scientific Research: Ideal for research projects requiring high-power, low-frequency RF amplification.
Advantages:
Versatility: Suitable for a wide range of frequencies and applications, offering flexibility in deployment.
High Reliability: Built to perform reliably in demanding conditions with robust construction and protection features.
Ease of Integration: Designed for easy integration into existing systems with standard RF interfaces and control options.


Electrical Specifications:

Frequency:                              10 KHz -30 MHz
Power Gain:                             53 dB Min
Gain Flatness:                         ±2 dB Max
Output Psat:                            200 W Min
Harmonics:                              -20 dBc Max
Non Harmonics Spurious:       -60 dBc Max
Input Power:                           +8 dBm
Input Return Loss:                  10 dB Min
Output Return Loss:               10 dB Typ
AC Voltage:                            100V to 240V AC
Power Consumption:              1200 Watt

Mechanical Specifications:
Parameter                                                     Specification
Dimensions WxHxD                                      430 x 560 x 133 mm
RF Connectors In/Out                                   N-F
Weight                                                           20 kg
Cooling                                                          Built in Fan Cooling

Environmental Ratings:

Temperature:             0ºC to +50 ºC Operating
                                  -40 ºC to +70 ºC Non-Operating
Vibration:                   MIL-STD-202F, Method 204D Cond. B
Altitude:                     MIL-STD-202F, Method 105C Cond. B
Temperature Cycle:   MIL-STD-202F, Method 107D Cond. A

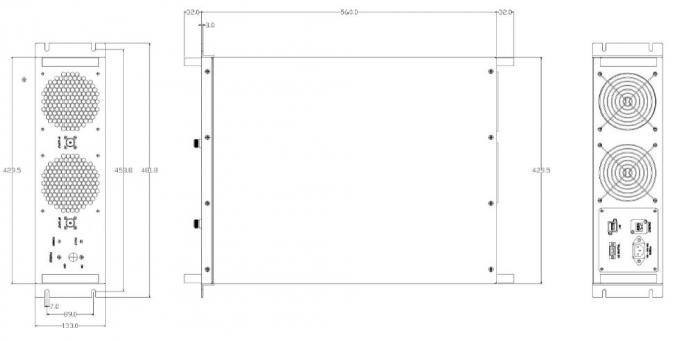

Mechanical Outline(Inches) :

High Output Power 10 KHz ~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory 0
