12.0-18.0 GHz Wideband Differential Amplifier High Power EMC Amplifiers
  • 12.0-18.0 GHz Wideband Differential Amplifier High Power EMC Amplifiers
  • 12.0-18.0 GHz Wideband Differential Amplifier High Power EMC Amplifiers
  • 12.0-18.0 GHz Wideband Differential Amplifier High Power EMC Amplifiers
  • 12.0-18.0 GHz Wideband Differential Amplifier High Power EMC Amplifiers

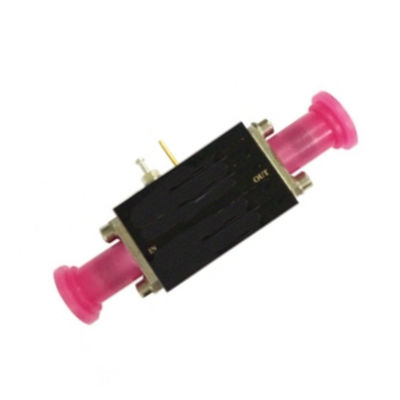

12.0-18.0 GHz Wideband Differential Amplifier High Power EMC Amplifiers

Place of Origin China
Brand Name SWT
Model Number SWT-12G18G-6170-S
Product Details
Packing:
Standard Packing
Noise Figure:
7.0 DB Max
DC Voltage Supply:
9 V To 15 V
DC Current Draw:
900 MA Typ
Operating Frequency:
12.0-18.0 GHz
Psat:
+14 DBm To 19 DBm
Input Range:
-61 DBm To 0 DBm
VSWR Input:
2.2:1 Max
High Light:

12.0GHz wideband differential amplifier

,

18.0 GHz wideband differential amplifier

,

emc amplifiers

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Wideband Power Amplifier EMC High Power Amplifier 12.0-18.0 GHz



Description

SWT-12G18G-6170-S is a wideband,high gain medium power limiting amplifier with +14dBm saturated output power. It is designed mainly for IFM EW airborne application where multiple signals are present at the input and low harmonic distortion is required to preserve the two-tone ratio at output under limiting conditions. The input signals can be as large as 0dBm.





FEATURES


                                         12.0 to 18.0 GHz Frequency Range

N.F.<7.0 dB

+14 dBm Saturated Output Power

Reverse Voltage Protection



Specifications:


Frequency:                   12.0-18.0 GHz

Input Range:                 -61 dBm to 0 dBm

Noise Figure:                7.0 dB Max

VSWR Input:                 2.2:1 Max

VSWR Output:              2.2:1 Max

Psat:                             +14 dBm to 19 dBm

Psat Flatness:              1.5 dB Max

DC Voltage Supply:      9 V to 15 V

DC Current Draw:         900 mA Typ




Environmental Ratings:

Temperature:             -40ºC to +75 ºC Operating
                                  -55 ºC to +125 ºC Non-Operating
Vibration:                   MIL-STD-202F, Method 204D Cond. B
Altitude:                     MIL-STD-202F, Method 105C Cond. B
Temperature Cycle:   MIL-STD-202F, Method 107D Cond. A

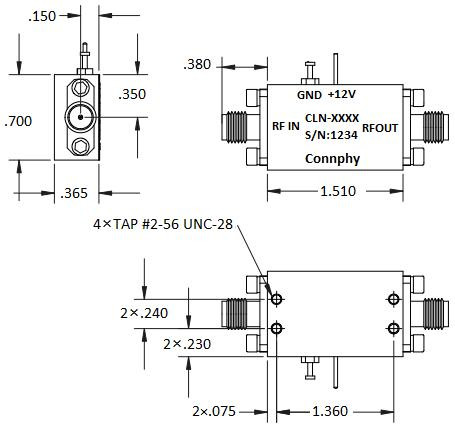

Mechanical Outline(Inches) :
