1.85 To 6.25 GHz C Band Power Amplifier Female Connector

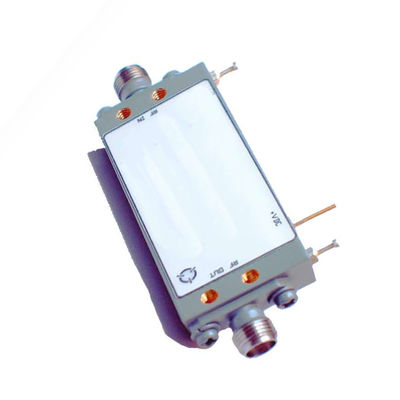

  • 1.85 To 6.25 GHz C Band Power Amplifier Female Connector

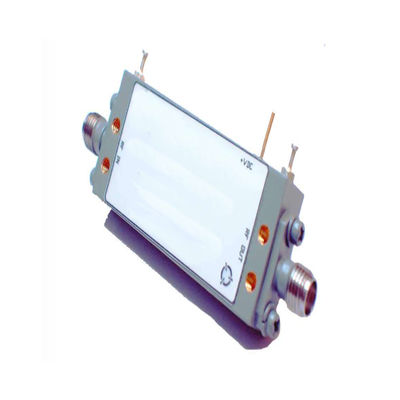

  • 1.85 To 6.25 GHz C Band Power Amplifier Female Connector

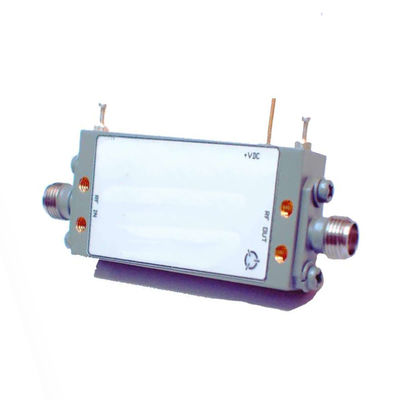

  • 1.85 To 6.25 GHz C Band Power Amplifier Female Connector

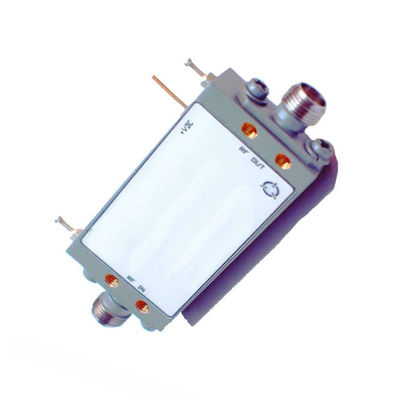

  • 1.85 To 6.25 GHz C Band Power Amplifier Female Connector

1.85 To 6.25 GHz C Band Power Amplifier Female Connector

Place of Origin China
Brand Name SWT
Model Number SWT-40-2G6G-15LM-SFF-HS
Product Details
Packing:
Standard Packing
RF Connectors:
SMA - Female
DC Voltage:
+10.8 To+13.2V
DC Current:
350 MA Max.
Operating Frequency:
1.85 To 6.25 GHz
Input Power Range:
-15 To +17dBm
Gain:
35 DB Min
VSWR (In/Out):
2.0:1 Max.
High Light:

1.85GHz c band amplifier

,

6.25 GHz c band amplifier

,

20w hf amplifier CE

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

C Band Power Amplifier 1.85 to 6.25 GHz RF Power Amplifier



Description

Model Number SWT-40-2G6G-15LM-SFF-HS is a 1.85 to 6.25 GHz limiting amplifier. This model operates with an input power range of-15 to +17dBm and maintains a limited output of+15dBm minimum. The unit is hermetically sealed.





Specifications:

Frequency Range:                                    1.85 to 6.25 GHz

Noise Figure:                                             5.5dB Max. @ +25C

                                                                  6.0dB max. @ +85C

Gain:                                                         35 dB Min
Gain Variation over Temp:                        +/-4.0dB Max. (-55°C to +85°C)

Gain Flatness (at any operating temp):  +/-2.5dB Max. - Full Range

                                                                  +/-2.0dB Max. (over any 500MHz)

VSWR (In/Out):                                         2.0:1 Max.
Saturated Power Output:                          +15dBm Min.
Input Power Range:                                  -15 to +17dBm

Saturated Power Flatness:                       +/-1.5dB Max. (at any operating temp)

                                                                                     +/-0.5dB Max. (over any 500MHz)

Saturated Power Variation Over Temp:    +/-1.25dB Max. (at any single frequency)

Harmonic Content:                                   -15dBc Min.

Reverse Isolation:                                  50dB Min.

Pulse Response:

                       Overshoot:                        0.2dB Max.

                               Settling Time:                 10ns Max.

                               Recovery Time:                50ns Max.

 Maximum Input (No Damage):                +20dBm CW Max.

                                                                                    +30dBm, .005 Duty Cycle, lusec

DC Voltage:                                             +10.8 to+13.2V

DC Current:                                             350mA Max.

RF Connectors:                                       SMA - Female

Sealing:                                                   Hermetic

Finish:                                                     Mil-Spec Epoxy Paint - Gray / Mounting surface

                                                                free of paint (Gold Plated)

                                                                Mounting Plate Gold  Plated




Environmental Ratings:

Temperature:             -55ºC to +85 ºC (Operating)
                                  -65 ºC to +125 ºC (Storage)
Humidity:                   MIL-STD-202F, Method 103B Cond B

Shock:                       MIL-STD-202F, METHOD 213B COND B.

Altitude:                     MIL-STD-202F, Method 105C Cond. B
Temperature Cycle:   MIL-STD-202F, Method 107D Cond. A

Mechanical Outline(Inches) :
1.85 To 6.25 GHz C Band Power Amplifier Female Connector 0



1.85 To 6.25 GHz C Band Power Amplifier Female Connector 1






1.85 To 6.25 GHz C Band Power Amplifier Female Connector 2

1.85 To 6.25 GHz C Band Power Amplifier Female Connector 3
