100 To 3000 MHz S Band Power Amplifier P1dB +18dBm RF Broadband HF Amplifier
  • 100 To 3000 MHz S Band Power Amplifier P1dB +18dBm RF Broadband HF Amplifier

100 To 3000 MHz S Band Power Amplifier P1dB +18dBm RF Broadband HF Amplifier

Place of Origin China
Brand Name SWT
Model Number SWT-140T
Product Details
Packing:
Standard Packing
Size (RF/DC Feedthrough Excluded):
1.79 (L) X 1.10 (W) X 0.45 (H) Inch
Weight:
1.4 Oz
DC Supply Current:
190 MA
Operating Frequency:
100-3000 MHz
P1dB:
+18 DBm
Gain:
43-45 DB
VSWR Input:
1.7@1500MHz
High Light:

100MHz S Band Power Amplifier

,

3000MHz S Band Power Amplifier

,

100MHz broadband hf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

S Band Power Amplifier 100-3000 MHz P1dB +18dBm RF Power Amplifier



Description

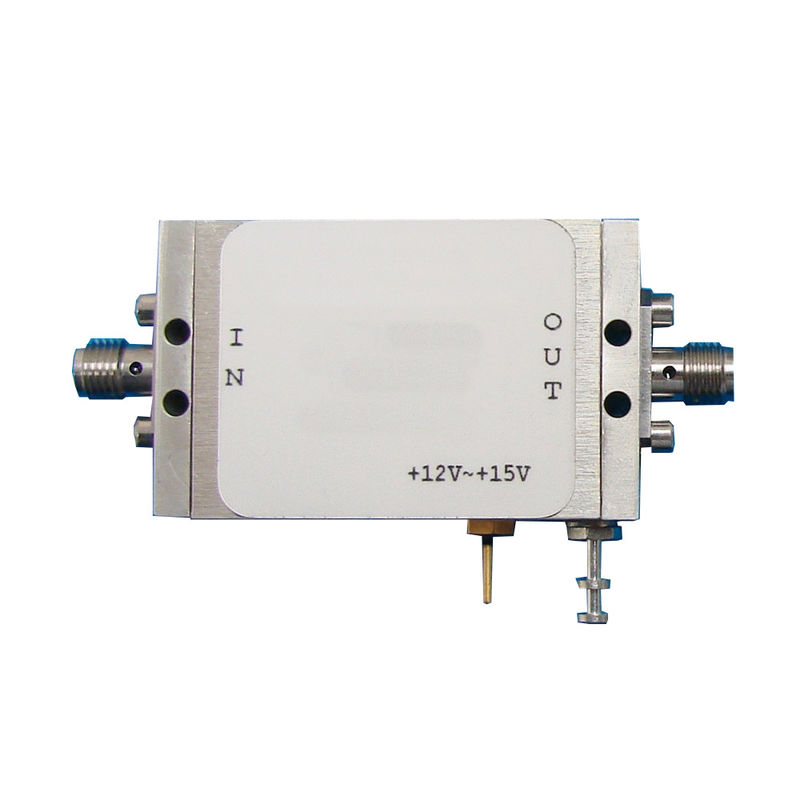

SWT-140T is a 43dB gain RF Amplifier, with frequency range of 100 MHz to 3000MHz.





FEATURES



· Frequency Range: 100-3000MHz

· Gain: 43dB

· P1dB: +18dBm

· OIP3: +35dBm

· Noise Figure: 3.6dB (typ.)

· DC Power: 12V to 15V @ 190mA

· SMA-female



Electrical Specifications @+25 °C, Zin=Zout=50 Ω, Vsupply = +12VDC
Parameter Unit Minimum Typical Maximum
Frequency Range MHz 100   3000

Gain (S21) f = 100MHz

f = 1500MHz f = 3000MHz

dB dB

dB



43.0

45.0

44.5

43.5


Gain Flatness dB   ±1.3
Output Power P1dB dBm   +18
Saturated Output Power PSat dBm   +19.5
Output Third Order Intercept IP3 dBm   +35
Noise Figure dB   3.6 4.5
Reverse Isolation (S12) @1500MHz dB   -56

VSWR-Input (S11)

VSWR-Output (S22)

ratio:1

(unitless)

1.1@100MHz

1.5@100MHz

1.7@1500MHz

1.7@1500MHz

1.6@3000MHz

1.4@3000MHz

DC Power Supply - voltage V 11 12 15
DC Power Supply - current mA   190
Operating Temperature °C -40   +85
Size (RF/DC feedthrough excluded) Inch 1.79 (L) x 1.10 (W) x 0.45 (H)
Weight Oz 1.4



Absolute Maximum Ratings

Parameter Absolute Maximum
RF Input Power +20dBm
Supply Voltage +20V
Operating Temperature -40 °C to +85 °C
Storage Temperature -55 °C to +125 °C

Mechanical Outline(Inches) :
