130 - 180 MHz S Band Power Amplifier Psat 44.5 dBm Broadband RF Power Amplifier

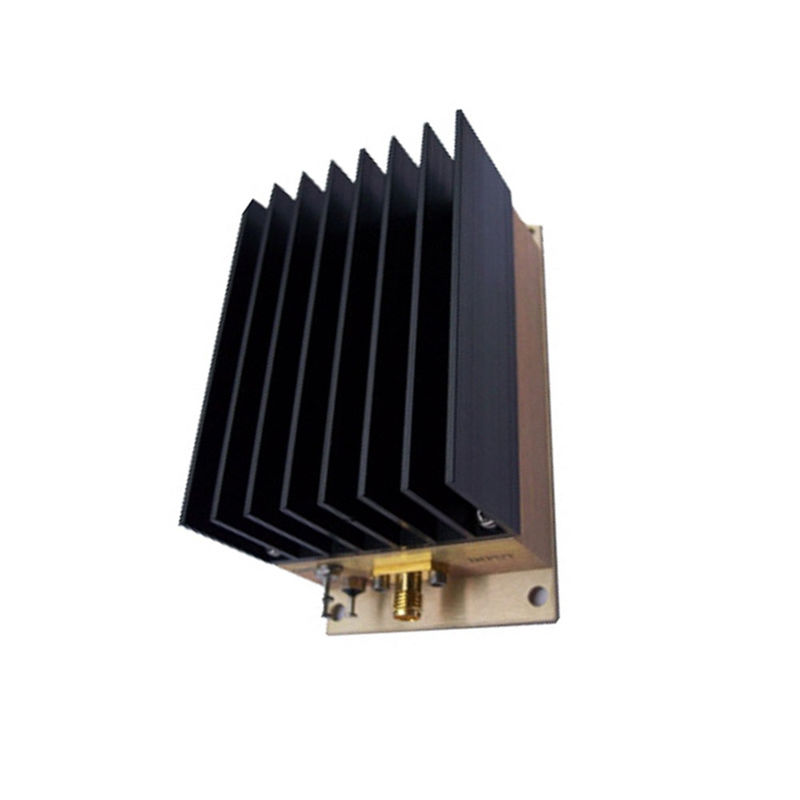

  • 130 - 180 MHz S Band Power Amplifier  Psat 44.5 dBm Broadband RF Power Amplifier

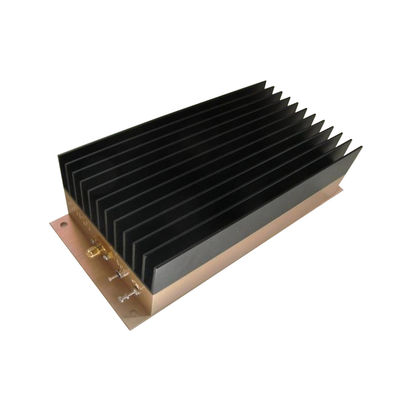

  • 130 - 180 MHz S Band Power Amplifier  Psat 44.5 dBm Broadband RF Power Amplifier

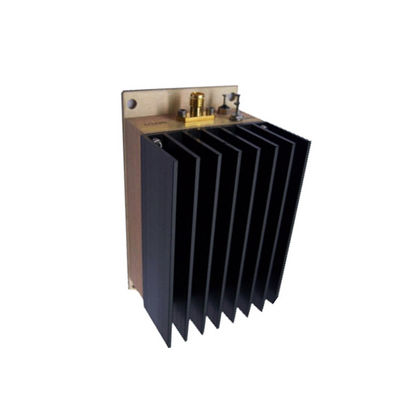

  • 130 - 180 MHz S Band Power Amplifier  Psat 44.5 dBm Broadband RF Power Amplifier

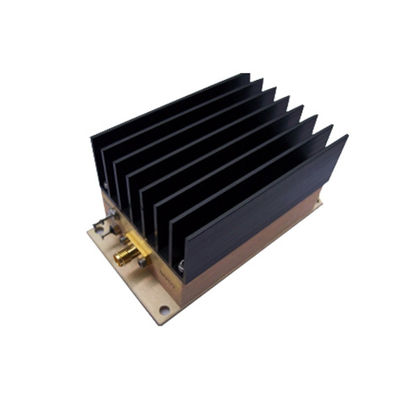

  • 130 - 180 MHz S Band Power Amplifier  Psat 44.5 dBm Broadband RF Power Amplifier

130 - 180 MHz S Band Power Amplifier Psat 44.5 dBm Broadband RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SWT-155
Product Details
Packing:
Standard Packing
Size:
7.00 (L) X 3.25 (W) X 2.00 (H) Inch
Weight:
24 Oz
DCpower:
12V (nominal), 9-15V OK
Operating Frequency:
135-175 MHz (min)
Psat:
> +44.5d Bm
Gain:
38.5 DB (typ.)
VSWR Input:
1.5 @155MHz
High Light:

130MHz S Band Power Amplifier

,

180MHz S Band Power Amplifier

,

28W broadband rf power amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

S Band Power Amplifier 130-180 MHz Psat 44.5 dBm RF Power Amplifier



Description

SWT-155 is a 20Watt output (min. @P3dB)RF PowerAmplifier; within frequencies of 135 to 175MHz; operating from a single 12VDC power supply. Also usable within 130-180MHz, 9-15VDC (not recommended). With proper (active) cooling is capable of 28Watt RFpower out (@Psat), under

special (non-standard) warranty.





FEATURES

                 · Frequency Range: 135-175MHz (min)

· Gain: 38.5dB (typ.)

                · P3dB: > +43.0dBm

· Psat: > +44.5dBm

· DCpower: 12V (nominal), 9-15V OK

· SMA-Female connectorized

                · Typ. for Mobile Radio, HAM Radio, etc



Electrical Specifications @+25 °C, Zin=Zout=50 Ω, Vsupply = +12VDC

IMPORTANT: MUST USE ACTIVE COOLING IF CASE TEMP. EXCEEDS 65ºC or to ACHIEVE MAX. RFpower  Output over 16W upto 28W (over +42dBm upto +44.5dBm).

Parameter Unit Minimum Typical Maximum
Frequency Range MHz 135 [130]   175 [180]
Small Signal Gain dB 37.6 38.5 40.4
Output Power - 3dB gain compr. (P3dB) dBm 42.5 +43
Output Power - saturated (Psat) dBm +44.0 +44.5
Reverse Isolation (S12) @155MHz dB   -54.0 -51

VSWR - Input (S11)

VSWR - Output (S22)

ratio:1

(unitless)

1.1 @140MHz

2.0 @148MHz

1.5 @155MHz

2.2

2.3 @175MHz

2.6 @135MHz

VSWR - Load Tolerance (non-destructive) ratio:1     18:1
Efficiency @155MHz & Pout in dBm % <26 @Pout<+40 34 @Pout+42 45 @Pout+44
DCpower Supply - voltage (unipolar, positive) V 9 not recommended 12 15 not recommended

DCpower Supply - current: quiesc. (no RF)

@Pout = +40dBm

A

A

1.8

2.0

3.2



3.9

Size (incl. all hardware & heatsink [standard]) Inch 7.00 (L) x 3.25 (W) x 2.00 (H)
Weight (incl. all hardware & heatsink [standard]) Oz 24



Absolute Maximum Ratings

Parameter Absolute Maximum
RF Input Power +15dBm
Supply Voltage +16V
Operating Temperature -30 °C to +65 °C
Storage Temperature -55 °C to +100 °C

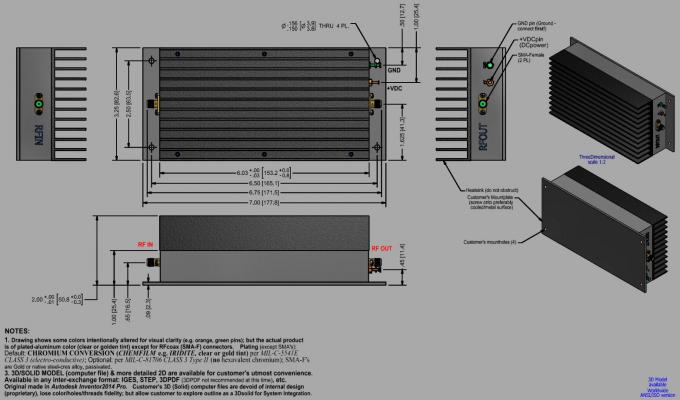

Outline (compact version)

Also available as a standalone higher-resolution 3Dmodel (MCADsolid) & 2Ddrawing - see “Notes” on compact drawing (below):



130 - 180 MHz S Band Power Amplifier  Psat 44.5 dBm Broadband RF Power Amplifier 0



130 - 180 MHz S Band Power Amplifier  Psat 44.5 dBm Broadband RF Power Amplifier 1






130 - 180 MHz S Band Power Amplifier  Psat 44.5 dBm Broadband RF Power Amplifier 2

130 - 180 MHz S Band Power Amplifier  Psat 44.5 dBm Broadband RF Power Amplifier 3
