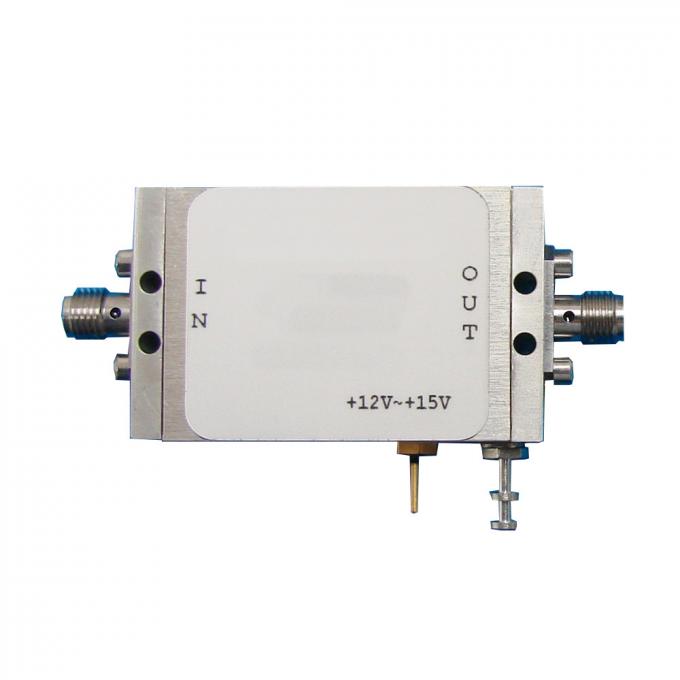

6 - 12 GHz P1dB 19 dBm S Band High Power Amplifier High Frequency

S Band Power Amplifier 6-12 GHz P1dB 19 dBm RF Power Amplifier

Description

FEATURES

Electrical Specifications @+25 °C, Z_in=Z_out=50 Ω, Vsupply = +12VDC

Parameter	Unit	Minimum	Typical	Maximum
Frequency Range	GHz	6		12
Gain (S21)     f = 6GHz f = 9GHz f = 12GHz	dB dB dB		16.8 19.0 18.0
Gain Variation Over Temperature	dB/°C		0.02	0.03
Output Power P1dB	dBm	16.5	+19
Saturated Output Power PSat	dBm		+20
Output Third Order Intercept IP3	dBm		+26
Noise Figure	dB		5.5	6.5
Reverse Isolation (S12) @9GHz	dB		-40
VSWR-Input (S11) VSWR-Output (S22)	ratio:1 (unitless)	1.4 @6GHz 1.4 @6GHz	1.6 @9GHz 1.9 @9GHz	2.5 @12GHz 1.9 @12GHz
DC Power Supply - voltage	V	9	12	15
DC Power Supply - current	mA		105	125
Operating Temperature	°C	-40		+85
Size (RF/DC feedthrough excluded)	Inch	1.79 (L) x 1.10 (W) x 0.45 (H)
Weight	Oz	1.4



Absolute Maximum Ratings

Parameter	Absolute Maximum
RF Input Power	+23dBm
Supply Voltage	+16V
Operating Temperature	-40 °C to +85 °C
Storage Temperature	-55 °C to +125 °C



Outline











Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.

In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.

In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.

Shipment:

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Sample ususally take within 3 working days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.

Q4. How to proceed an order?

A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link.

Q5. After paid, what info of the supplier provided?

A: Tracking number

Q6: Do you offer guarantee and after-service for the products?

A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate
