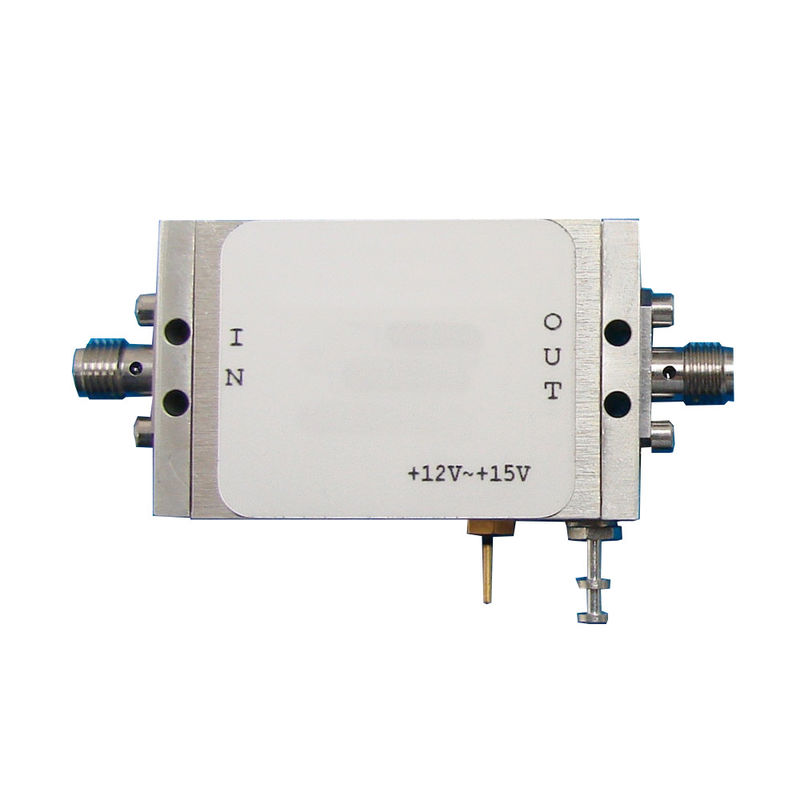

100 To 8000 MHz S Band High Power Amplifier P1dB 10 dBm Broadband Power Amplifiers

S Band Power Amplifier 100-8000 MHz P1dB 10 dBm RF Power Amplifier

Description

FEATURES

Electrical Specifications @+25 °C, Z_in=Z_out=50 Ω, Vsupply = +12VDC

Parameter	Unit	Minimum	Typical	Maximum
Frequency Range	MHz	100		8000
Gain (S21)     f = 100MHz f = 4000MHz f = 8000MHz	dB dB dB		36.0 34.7 29.7
Gain Flatness	dB		±3.0
Output Power P1dB @4000MHz	dBm		+10
Saturated Output Power PSat	dBm		+13
Output Third Order Intercept IP3	dBm		+23
Noise Figure	dB		6.0	6.5
Reverse Isolation (S12) @4000MHz	dB		-45
VSWR-Input (S11) VSWR-Output (S22)	ratio:1 (unitless)	1.3@100MHz 1.4@100MHz	1.3@4000MHz 1.6@4000MHz	1.2@8000MHz 1.8@8000MHz
DC Power Supply - voltage	V	9	12	15
DC Power Supply - current	mA		120	135
Operating Temperature	°C	-40		+85
Size	Inch	1.79 (L) x 1.10 (W) x 0.45 (H)
Weight	Oz	1.4





Absolute Maximum Ratings

Parameter	Absolute Maximum
RF Input Power	+13dBm
Supply Voltage	+25V
Operating Temperature	-40 °C to +85 °C
Storage Temperature	-55 °C to +125 °C



Outline
