1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier
  • 1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier
  • 1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier
  • 1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier
  • 1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier

1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SWT-2000
Product Details
Packing:
Standard Packing
Noise Figure:
7.2 DB
Supply Current:
550 MA
DC Power:
5 V
Operating Frequency:
1.6 – 2.4 GHz
IP3:
+42 DBm
Gain:
26 DB
VSWR Input:
1.5:1
Highlight:

1.6GHz s band amplifier

,

2.4GHz s band amplifier

,

0.5W rf power amp

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

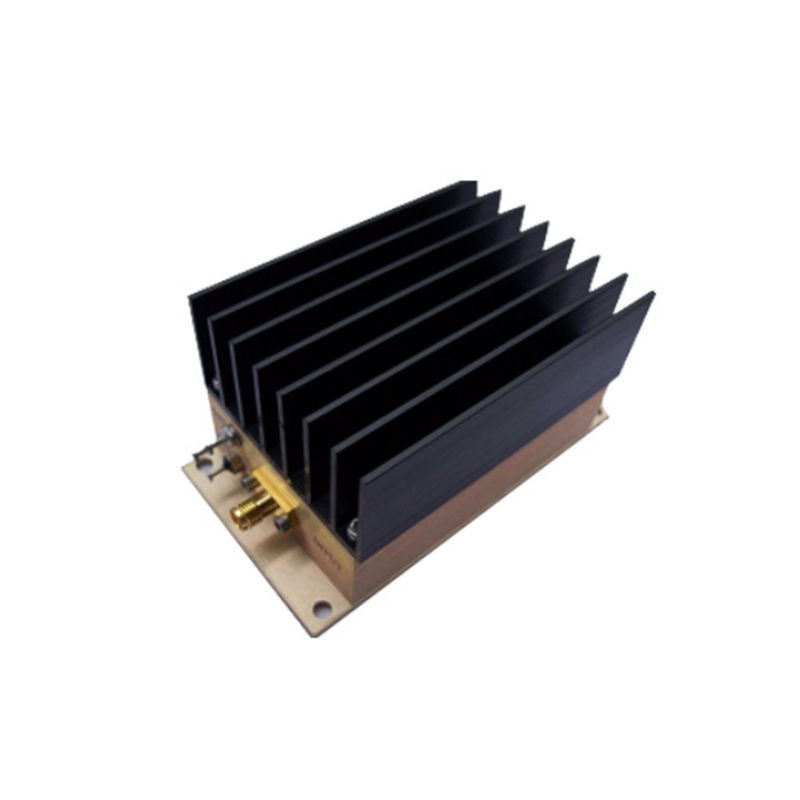

S Band Power Amplifier 1.6 – 2.4 GHz P1dB 27 dBm RF Power Amplifier



Description

SWT-2000 is +27dBm (0.5W) output RF Amplifier operates with frequency range from 1.6GHz to 2.4GHz.



FEATURES



· Frequency Range:1.6 – 2.4GHz

· Gain: 26dB

· P1dB: +27dBm

· IP3: +42dBm

· Noise Figure: 7.2dB

· Input/Output VSWR: 1.5:1/1.7:1

·DC Power: 5V

                ·SMA Connector

Performance Tested @ 2.0GHz



Electrical Specifications @+25 °C, Zin=Zout=50 Ω, Vsupply = +12VDC
Parameter Unit Minimum Typical Maximum
Frequency Range GHz 1.6   2.4
Small Signal Gain f = 1.6GHz dB   27.8
                              f = 2.0GHz dB   26.0
                              f = 2.4GHz dB   23.0
P1dB                      f = 1.6GHz dBm   +28
                              f = 2.0GHz dBm +27 +29
                              f = 2.4GHz dBm   +26
OIP3 dBm   +42
Noise Figure at 2.0GHz dB   7.2
Reverse Isolation dB   -38
VSWR f = 2.0GHz Input     1.5:1
Output     1.7:1
DC Power Supply V 4.5 5.0 5.5
Supply Current mA   550




Absolute Maximum Ratings

Parameter Absolute Maximum
RF Input Power +12dBm
Supply Voltage +5.5V
Operating Temperature -40 °C to +85 °C
Storage Temperature -55 °C to +100 °C


Outline

1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier 0



1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier 1






1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier 2

1.6 To 2.4 GHz S Band Power Amplifier P1dB 27 dBm RF Power Amplifier 3

Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.

In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.

In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
