L Band Power Amplifier 1000-2000 MHz Psat 44 dBm RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL |
| PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
| Operating Frequency |
1000 |
|
2000 |
MHz |
| RF INPUT |
|
-1 |
|
dBm |
| PSat Power Output |
|
44 |
|
dBm |
| Gain |
|
45 |
|
dB |
| Power Gain Flatness |
|
±2 |
|
dB |
| Input VSWR |
|
2 |
|
|
| Operating Voltage |
|
28 |
|
VDC |
| Current |
|
|
5 |
A |
| Spurious Signals |
|
|
-60 |
dBc |
| Harmonic Signals |
|
-20 |
|
dBc |
| MECHANICAL |
| PARAMETER |
VALUE |
UNIT |

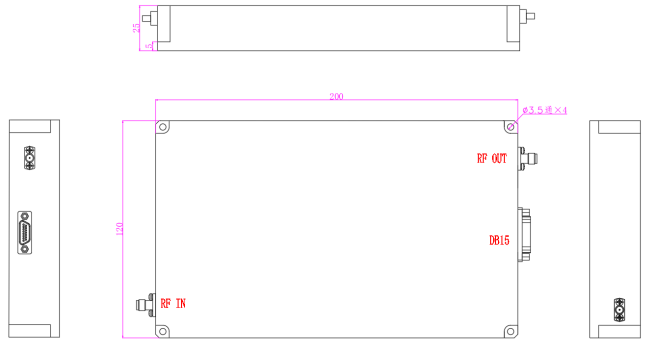

| Dimensions (L x W x H) |
200×120×25 |
mm |
| RF Connectors (Input / Output) |
SMA- KFD/ SMA- KFD |
-- |
| DC / Control Connector |
DB15 |
-- |
| Cooling |
Baseplate Conduction - Optional Heatsink Available |
-- |
| Mounting |
3-4 Thru Hole |
-- |
| Weight |
≤1.2 |
kg |
| ENVIRONMENTAL / PROTECTIONS |
| PARAMETER |
MIN |
MAX |
UNIT |
| Operating Temp. (Housing Temp.) |
-40 |
+55 |
°C |
| Humidity Range |
0-100 |
% |
| Max RF Input |
+0 |
dBm |
| PA Baseplate Shutoff Temperature |
+ 85 |
°C |
| INPUT/OUTPUT PINS |
| AMPLIFIER CONNECTOR TYPE: |
DB15 |
| TRIAD CABLE PART NUMBER: |
—— |
| PIN NUMBER |
LABEL |
DESCRIPTION |
| 1-4 |
+VDC |
+28V |
| 5-8 |
GND |
Ground |
| 9 |
Amp Enable |
TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 10 |
FWD |
Forward Power Detection(TTL Hi= Normal , TTL Lo = Fault ) |
| 11 |
REV |
Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault ) |
| 12-15 |
NC |
NC |
