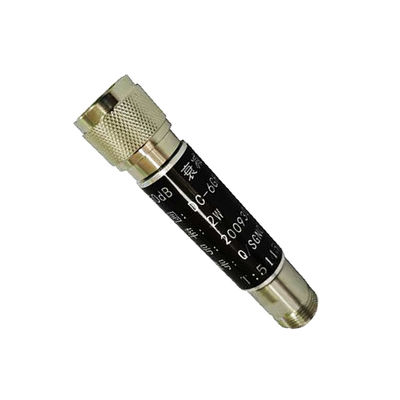

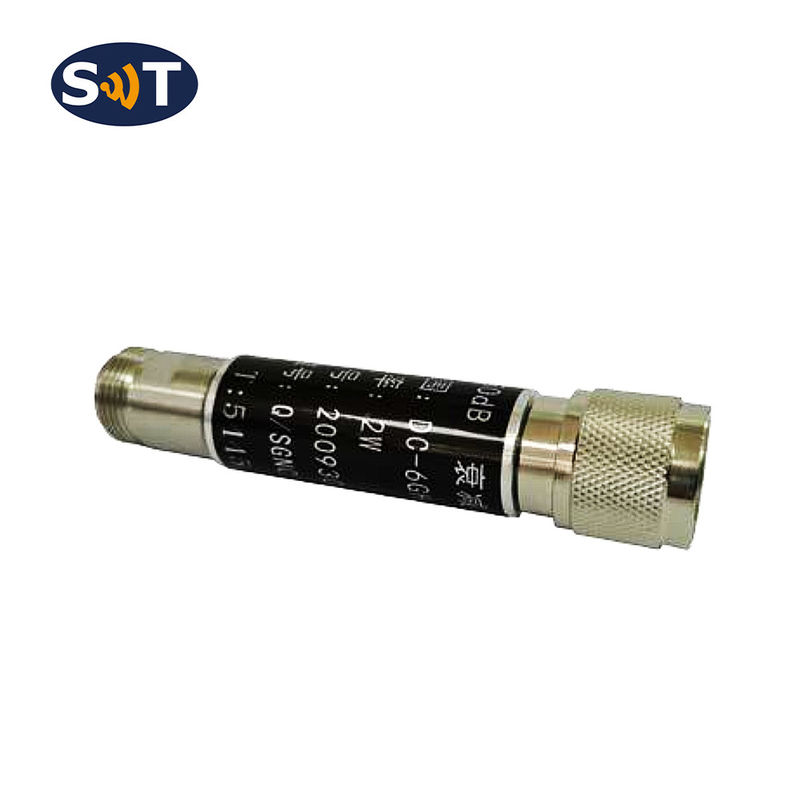

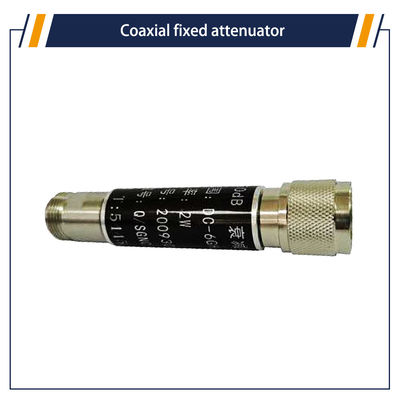

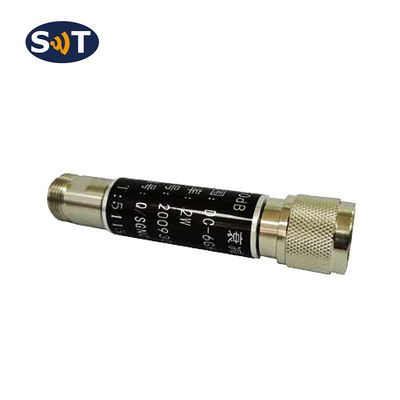

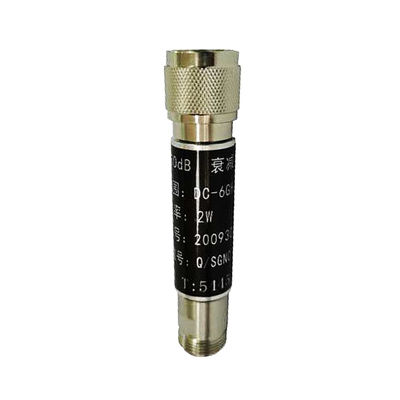

2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA
  • 2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA
  • 2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA
  • 2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA
  • 2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA
  • 2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA
  • 2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA

2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-TS2G-A
Product Details
Packing:
Standard Packing
Average Power:
2 W
Peaking Power:
0.5 KW
Frequency:
DC-18 GHz
Connector:
N,TNC,SMA
Nominal Impedance Power:
50 Ω
Cavity:
Al
Dimensional Tolerance:
±5%
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA



Description

The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
TS2G series coaxial fixed attenuator average power 2W, frequency range DC-18GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.



MECHANICAL SPECIFICATIONS

Connector Housing

   Nickel Plated Brass

Inner positive conductor

   Orichalum plating

Cathode conductor

   Beryllium bronze gold plating

Cavity

   Aluminum casing

Temperature range

  -55°C to +125°C

Overall dimensions

   Ø20×77mm

Weight

   80g



Electrical performance:

Type Frequency
(GHz)
Attenuation value and accuracy(dB) Max VSWR
1-9 10 20 30 40
TS2G-XX-8-A DC-8 ±0.5 ±0.4 ±0.4 ±0.5 ±0.6 1.30
TS2G-XX-12.4-A DC-12.4 ±0.7 ±0.7 ±0.7 ±0.7 ±0.75 1.35
TS2G-XX-18-A DC-18 -0.6/+1.2 ±1.0 ±1.2 ±1.2 ±1.2 1.40



Note: XX indicates the attenuation


Nominal impedance: 50Ω
Average power: 2W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power linearly decreases to 0.5W

Peak power: 0.5KW(5μs pulse width, 0.4% load cycle)
Connector form: N,TNC,SMA



2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA 0



2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA 1






2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA 2

2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA 3

Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.

In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.

In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.

2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA 4

2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA 5

Shipment:

2 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC,SMA 6
