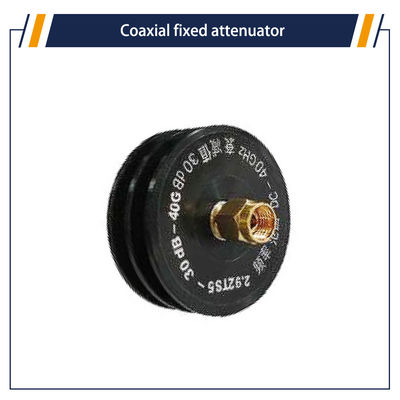

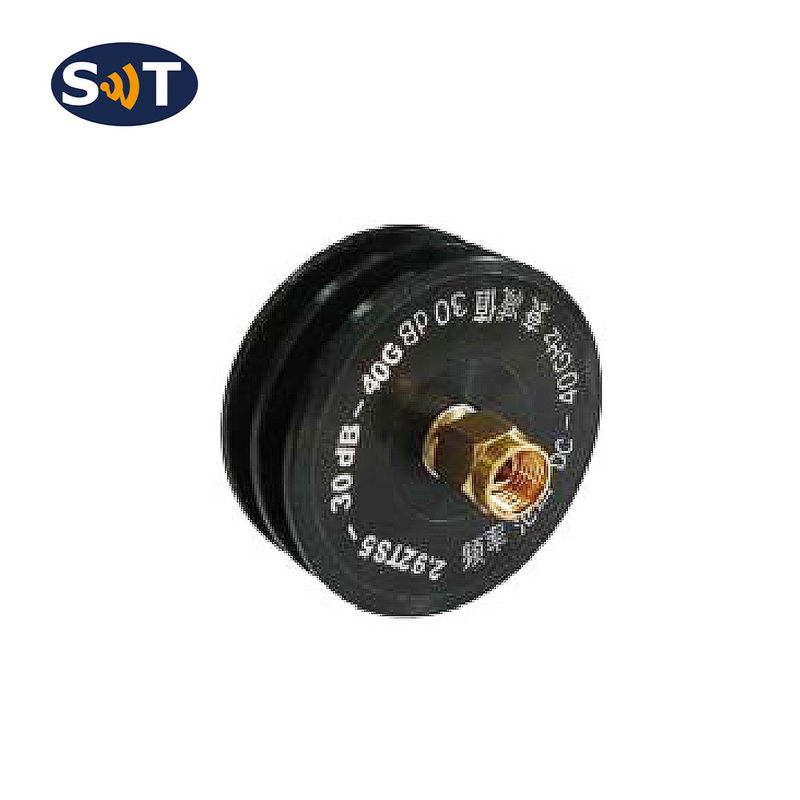

5 W Coaxial Fixed Attenuators DC-40 GHz Connector 2.92 mm



Description

The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
2.92TS5-40  coaxial fixed attenuator average power 5W, frequency range DC-40GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.



MECHANICAL SPECIFICATIONS

Connector Housing Brass plated with gold or stainless steel
Inner positive conductor Beryllium bronze gold plating
Cathode conductor Beryllium bronze gold plating
Cavity Aluminum shell, blackened
Temperature range -55°℃~+85℃

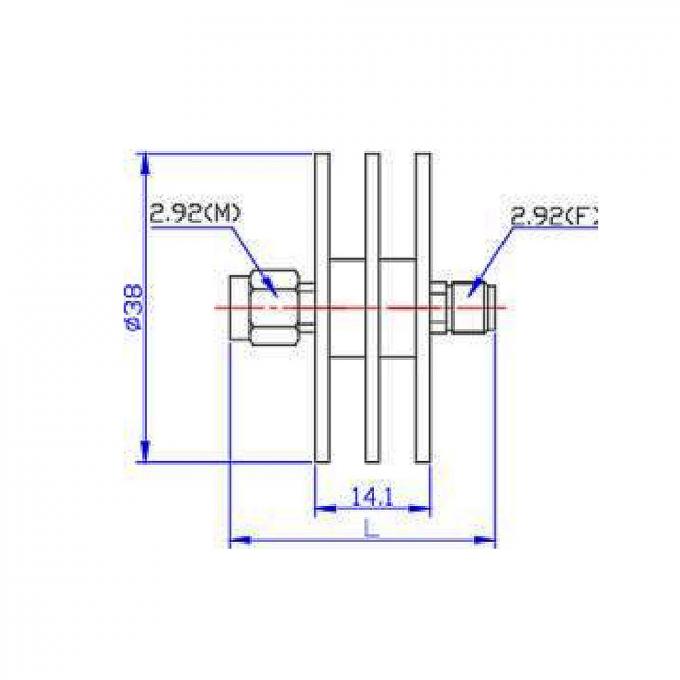

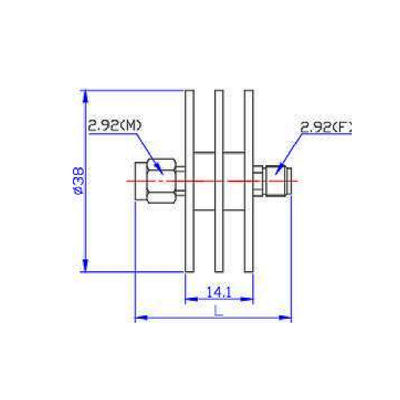

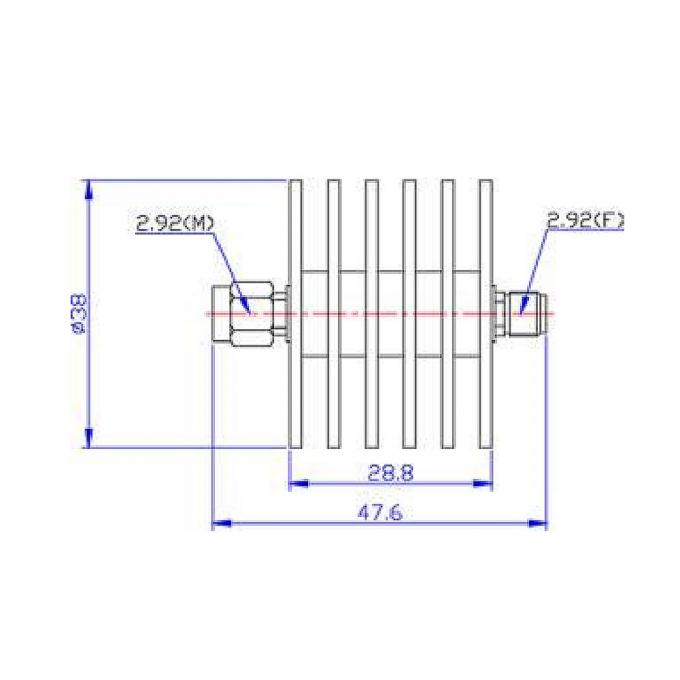

Overall dimensions Ø38×L ≤20dB       L=31.4
30dB         L=33
40dB         L=47.6
Weight 1-30dB:20g; 40dB:40g



Electrical performance:

Type Frequency
(GHz)
Attenuation value and accuracy(dB) Max VSWR
1-9 10-19 20-30 40
2.92-XX-26.5 DC-26.5 ±0.8 ±0.8 -0.8/+1.0 ±1.0 1.25
2.92TS5-XX-32 DC-32 ±0.8 ±0.8 ±1.0 ±1.5 1.30
2.92TS5-XX-40 DC-40 ±1.0 ±1.0 -1.0/+1.5 1.0/+2.0 1.35
1.40(40dB)

Note: XX indicates the attenuation


Nominal impedance: 50Ω
Average power:
5W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power linearly                             decreases to 0.5W

Peak power: 0.2KW(5μs pulse width, 2.5% load cycle)
Connector form: 2.92mm
