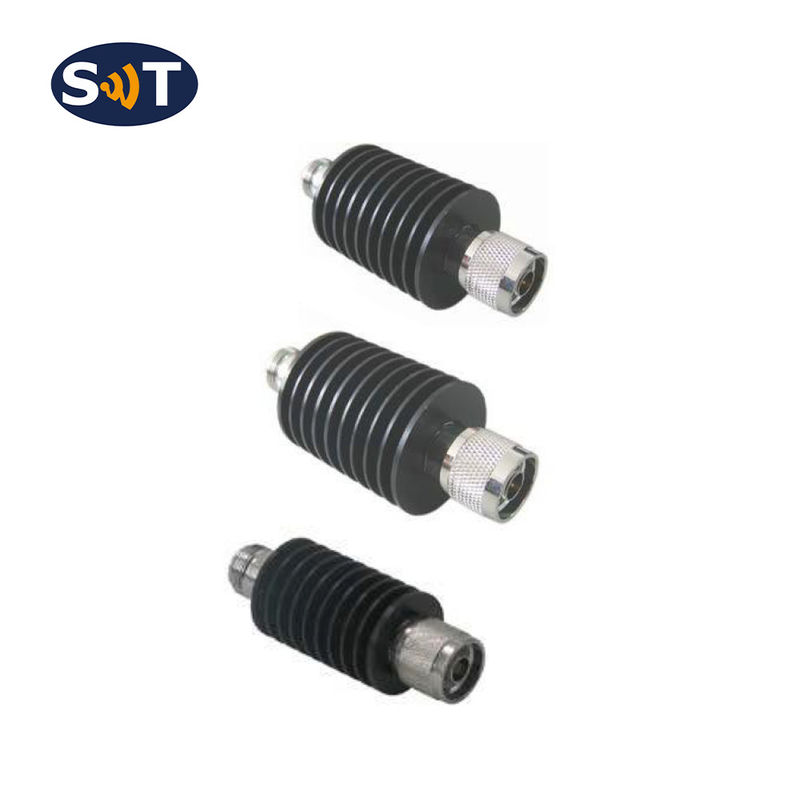

25 W TNC Attenuator DC-18 GHz SMA RF Attenuators N Type

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-DTS25GH
Product Details
Packing:
Standard Packing
Average Power:
25 W
Peaking Power:
1 KW
Frequency:
DC-18 GHz
Connector:
N,SMA,TNC
Nominal Impedance Power:
50 Ω
Cavity:
Al
Dimensional Tolerance:
±5%
High Light:

25W tnc attenuator

,

tnc attenuator 18GHz

,

SMA rf attenuators n type

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

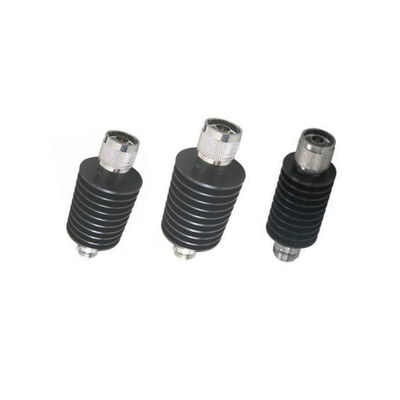

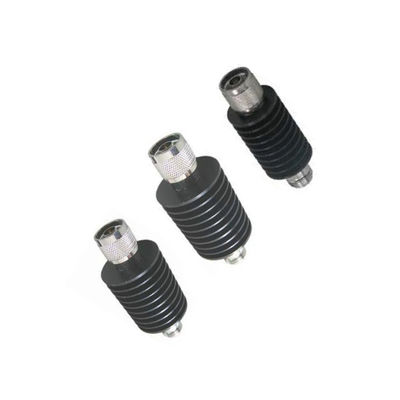

25 W Coaxial Fixed Attenuators DC-18 GHz Connector N,SMA,TNC



Description

The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
DTS series  coaxial fixed attenuator average power 10W-10KW, frequency range DC-26.5GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.



MECHANICAL SPECIFICATIONS

Connector Housing

   Nickel Plated Brass

Inner positive conductor

   Orichalum plating

Cathode conductor

   Beryllium bronze gold plating

Cavity

   Aluminum shell, blackened

Temperature range

  -55°C to +125°C

Overall dimensions

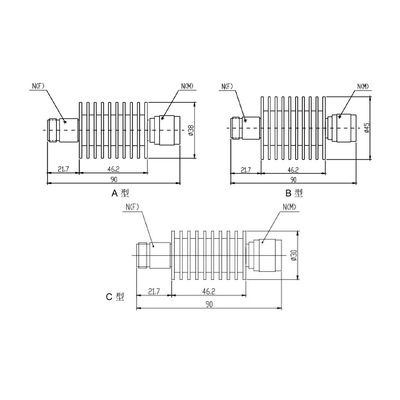

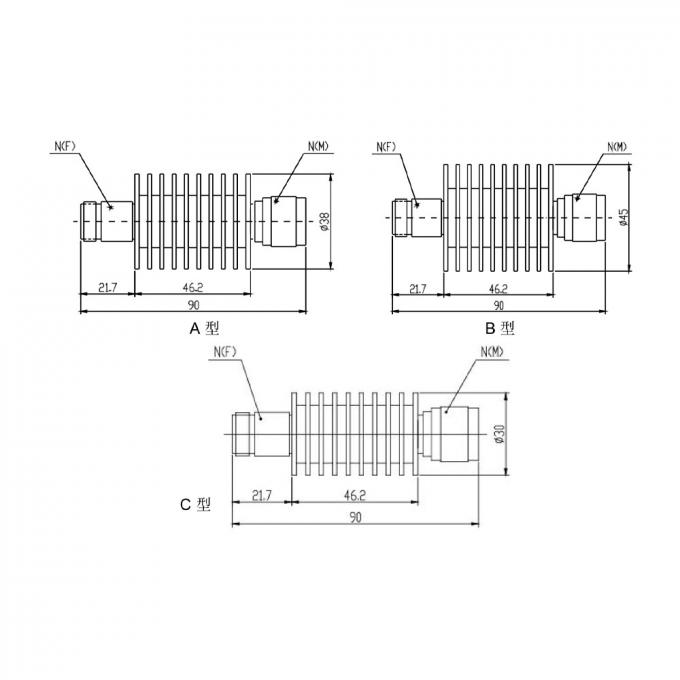

    A:Ø38×90mm; B:Ø45×90mm

    C:Ø30×90mm

Weight

    A:140g; B:150g;C:125g



Electrical performance:

Type Frequency
(GHz)
Attenuation value and accuracy(dB) Max VSWR
3 6 10 20 30 40 50 60
DTS25GH-XX-8 DC-8 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.6 ±1.0 ±1.0 1.25
DTS25GH-XX-12.4 DC-12.4 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.2 ±1.2 1.35
DTS25GH-XX-18 DC-18
±1.0

±1.0
±1.0 ±1.0 ±1.0 ±1.0 / / 1.40
1.45(SMA)

Note: XX indicates the attenuation



Nominal impedance: 50Ω
Average power: 25W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power linearly                             decreases to 2.5W

Peak power: 1KW(5μs pulse width, 2.5% load cycle)
Connector form:
N,SMA,TNC
