100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator
  • 100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator
  • 100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator
  • 100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator
  • 100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator
  • 100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator
  • 100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator
  • 100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator

100 W Coaxial Fixed Fixed RF Attenuator DC26.5 GHz 2.92 mm Attenuator

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-2.92TS100
Product Details
Packing:
Standard Packing
Average Power:
100 W
Peaking Power:
0.5 KW
Frequency:
DC-26.5 GHz
Connector:
2.92 Mm
Nominal Impedance Power:
50 Ω
Cavity:
Al
Dimensional Tolerance:
±5%
Highlight:

100W fixed rf attenuator

,

Coaxial Fixed fixed rf attenuator

,

26.5GHz 2.92 mm attenuator

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

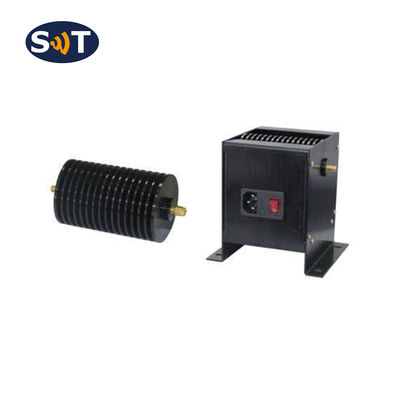

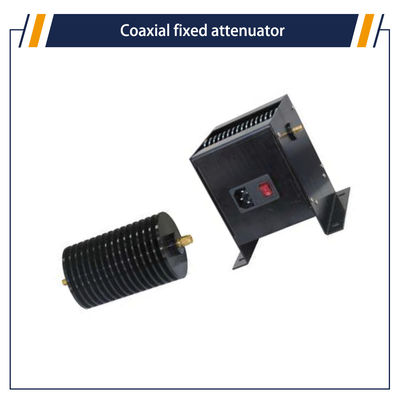

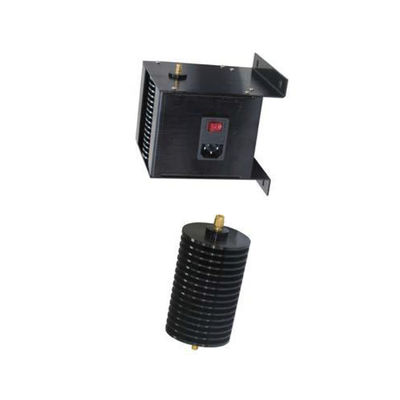

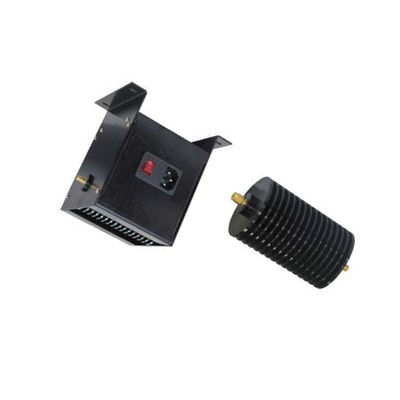

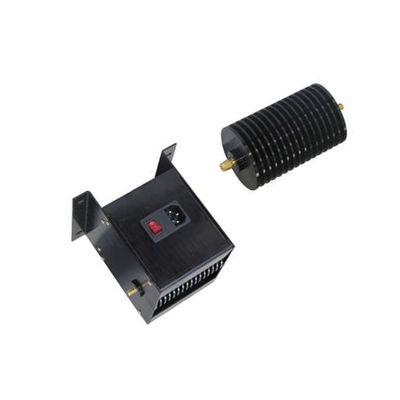

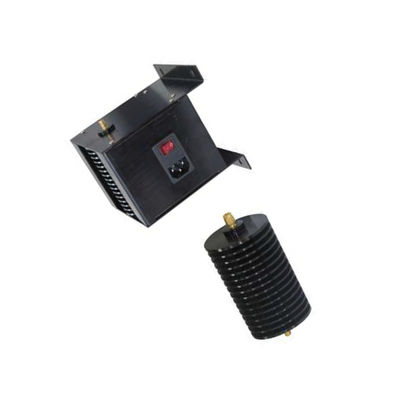

100 W Coaxial Fixed Attenuators DC-26.5 GHz Connector 2.92 mm



Description

The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
2.92TS100 coaxial fixed attenuator average power 100W, frequency range DC-26.5GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.



MECHANICAL SPECIFICATIONS

Connector Housing

   Orichalum plating

Inner positive conductor

   Beryllium bronze gold plating

Cathode conductor

   Beryllium bronze gold plating

Cavity

   Aluminum shell, blackened

Temperature range

  -55°C to +125°C

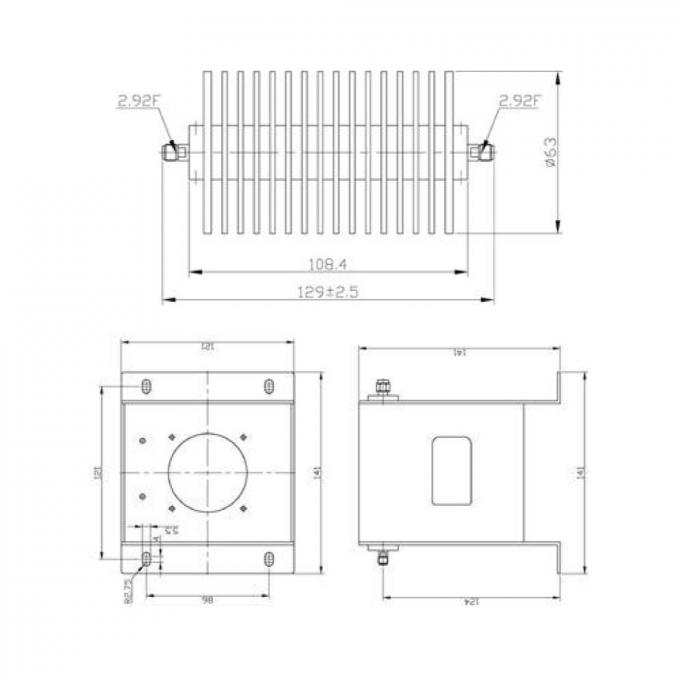

Overall dimensions

   A:Ø63×129mm(Without fan)

   D: 141×121×141mm(With fan)

Weight

   A:386g; B:910g



Electrical performance:

Type Frequency
(GHz)
Attenuation value and accuracy(dB) Max VSWR
10 20 30 40
2.92TS100-XX-18 DC-18 ±1.0 ±1.0 ±1.0 ±1.0 1.30
2.92TS100-XX-26.5 DC-26.5 -1.0/+3.0 -1.0/+3.75 -1.0/+1.5 ±1.0 1.40



Note: XX indicates the attenuation



Nominal impedance: 50Ω
Average power: 100W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power                                      linearly decreases to 10W

Peak power: 0.5KW(5μs pulse width, 10% load cycle)
Connector form:
2.92mm(M,F)
