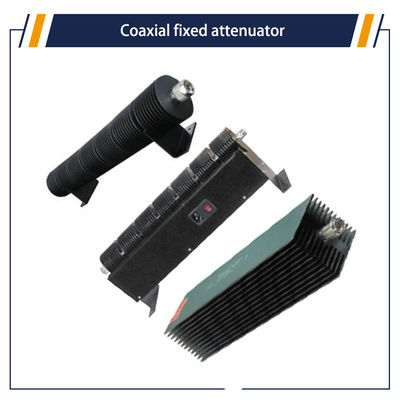

250 W Coaxial Fixed Attenuators DC-18 GHz Connector N,TNC
Description
The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
DTS series coaxial fixed attenuator average power 10W-10KW, frequency range DC-26.5GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.
MECHANICAL SPECIFICATIONS
|
Connector Housing
|
Nickel Plated Brass
|
|
Inner positive conductor
|
Orichalum plating
|
|
Cathode conductor
|
Beryllium bronze gold plating
|
|
Cavity
|
Aluminum shell, blackened
|
|
Temperature range
|
-55°C to +125°C
|
|

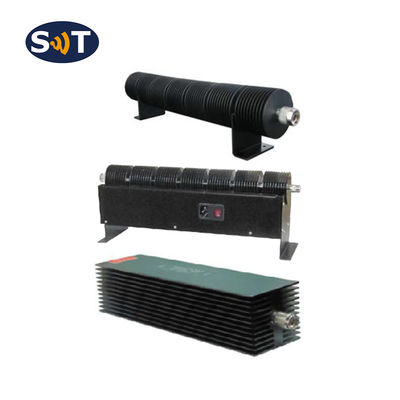

Overall dimensions
|

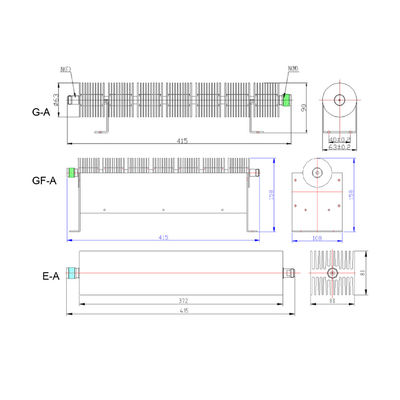

G:415×63×90mm(Add bracket)
GF:415×108×158mm
E:415×80×80mm
|
|
Weight
|
G:1.3Kg; GF:2.5Kg; E:3.5Kg |
Electrical performance:
| Type |
Frequency
(GHz) |
Attenuation value and accuracy(dB) |
Max VSWR |
| 10 |
20 |
30 |
40 |
50 |
Common |
Precision type |
| DTS250G(F)-XX-12.4(-E) |
DC-12.4 |
-1.5/+2.0 |
-2.5/+1.0 |
±2.0 |
±2.0 |
±2.0 |
1.40 |
1.30 |
| DTS250G(F)-XX-18(-E) |
DC-18 |
-2.5/+4.0 |
-2.5/+5.0 |
-2.0/+3.5 |
-2.0/+3.5 |
-2.0/+3.0 |
1.55 |
1.50 |
Note: XX indicates the attenuation
Nominal impedance: 50Ω
Average power: 250W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power linearly decreases to 25W
Peak power: 1KW(5μs pulse width, 10% load cycle)
Connector form: N,TNC
