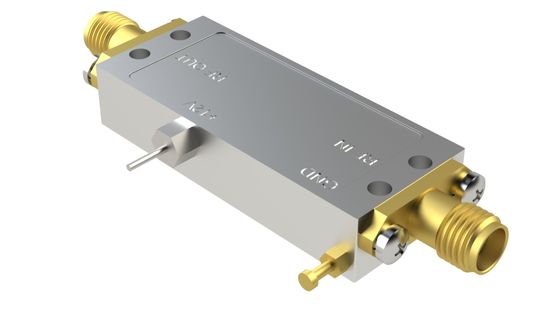

0.05 - 1.5GHz P1dB 15 dBm Wideband Low Noise Amplifier Module for radio broadcasting, signal processing

0.05 - 1.5GHz P1dB 15 dBm Wideband Low Noise Amplifier Module for radio broadcasting, signal processing

Description

The 0.05 - 1.5 GHz P1dB 15 dBm Wideband Low Noise Amplifier (LNA) is an RF amplifier designed for a broad frequency range, suitable for applications requiring low noise and wide frequency coverage from 50 MHz to 1.5 GHz. Here are its key features and specifications:

• Frequency Range: 0.05 GHz to 1.5 GHz (50 MHz to 1.5 GHz), ideal for a variety of low to mid-frequency applications.
• P1dB Output Power: 15 dBm, offering high output power and ensuring stable signal amplification before reaching the compression point.
• Wideband Operation: Supports consistent performance across a broad frequency range, providing versatility across various systems and applications.
• Low Noise Figure: Designed to minimize noise, improving the signal-to-noise ratio (SNR) and making it suitable for amplifying weak signals.
• High Gain: Maintains stable gain across the entire bandwidth, ensuring effective signal amplification without compromising signal quality.
• Applications: Widely used in communication systems, radio broadcasting, signal processing, test and measurement equipment, electronic warfare, and other RF applications that require wideband, low-noise amplification.

This LNA module is ideal for systems operating over a wide frequency range that need low-noise amplification, providing excellent signal amplification performance in various low to mid-frequency applications.

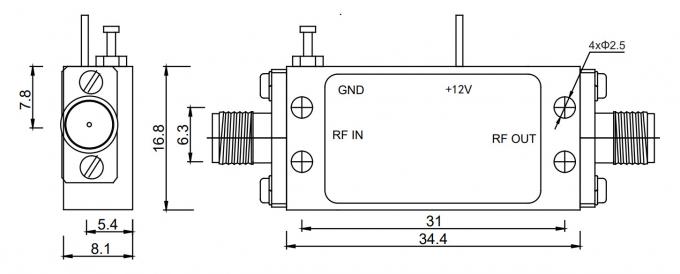

OutlineDimensionalDrawing





Company Profile



Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.



Participation in exhibitions







Why choose us

Staffing
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.

TECHNICAL SUPPORT
Fast Response
Provide Project Technical AdviceTo Provide Customers With Quality Pre-Sales/Post-Sales Service

PRODUCT SUPPLY
Full Spectrum Products Available
Customer Needs As A Guide
To Provide Customers With Customized Products And Solutions

PRODUCT QUALITY
All Have Passed Various Performance Tests Before DeliveryTo Ensure That The Product is Good And Stable During Use



Certifications







Packaging & Shipping

FAQ



1. Our Advantages

Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.

2.About Customised

We can customise according to customer's requirements, just tell us the frequency, gain, power.

3.About Delivery Time

Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped

4.How quality is guaranteed

1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics. 3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.

5.Delivery method

If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight.

6.payment method

L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank
