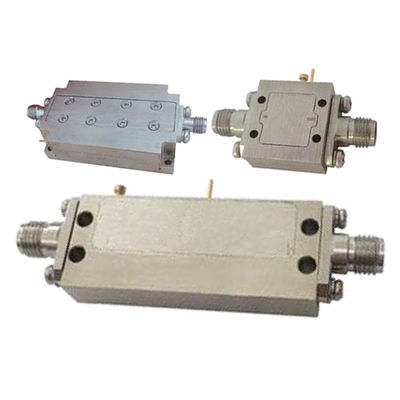

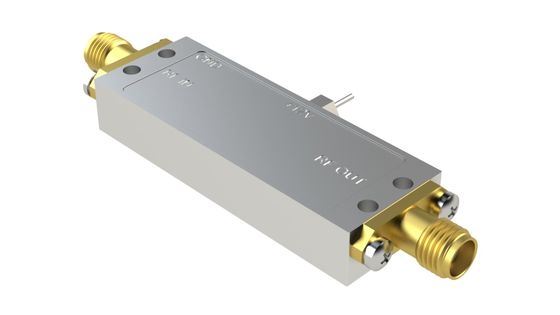

0.5-0.7 GHz P1dB 12 dBm Narrow Band LNA Low Noise Amplifier for UHF communications, telemetry, and broadcasting
  • 0.5-0.7 GHz P1dB 12 dBm Narrow Band LNA Low Noise Amplifier for UHF communications, telemetry, and broadcasting
  • 0.5-0.7 GHz P1dB 12 dBm Narrow Band LNA Low Noise Amplifier for UHF communications, telemetry, and broadcasting

0.5-0.7 GHz P1dB 12 dBm Narrow Band LNA Low Noise Amplifier for UHF communications, telemetry, and broadcasting

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-05000700-40C
Product Details
Frequency Range:
0.5-0.7 GHz
Output Power 1dB Compression:
12 DBm
Gain:
40 DB
VSWR Input:
2:1
DC Power:
12 V
Packing:
Standard Packing
Dimensions:
40.7*16.8*8.1 Mm
Weight:
50 G
Applications:
UHF Communications, Telemetry, And Broadcasting
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

0.5-0.7 GHz P1dB 12 dBm Narrow Band LNA Low Noise Amplifier for UHF communications, telemetry, and broadcasting



Description

The module is designed for both military and commercial applications. The latest device technologies and  design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight  package.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.5   0.7 GHz
Small Signal Gain 40     dB
Small Signal Gain Flatness     ±0.75 dB
Noise Figure     0.9 dB
Output Power 1dB compression 12     dBm
IP3       dBm
VSWR Input/output     2:1 Ratio
DC Power Supply   12   Volt
Current   200   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +20 dBm
Operating Temperature -40   +85
Non-operating Temperature -55   +125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

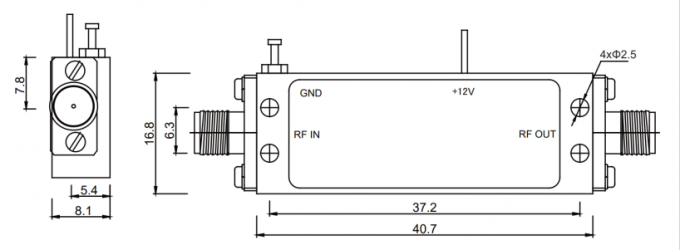

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 40.7*16.8*8.1 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms
