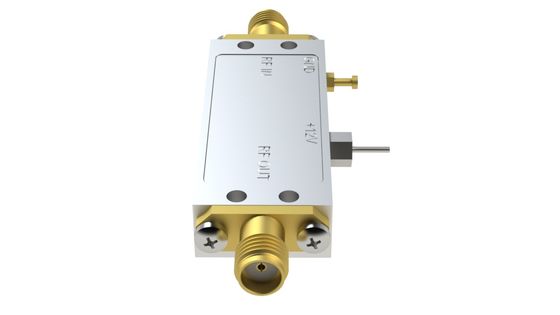

Low Noise Figure 0.1 - 2 GHz P1dB 10 dBm Wideband Low Noise Amplifier fot test and measurement equipment
  • Low Noise Figure 0.1 - 2 GHz  P1dB 10 dBm Wideband Low Noise Amplifier fot test and measurement equipment

Low Noise Figure 0.1 - 2 GHz P1dB 10 dBm Wideband Low Noise Amplifier fot test and measurement equipment

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-01002000-35C
Product Details
Frequency Range:
0.1-2 GHz
Output Power 1dB Compression:
10 DBm
Gain:
35 DB
VSWR Input:
2:1
DC Power:
12 V
Packing:
Standard Packing
Dimensions:
44.7*19.3*17 Mm
Weight:
50 G
Application:
Telecommunications, Satellite Communication, Radar Systems, Signal Processing, Test And Measurement Equipment
Highlight:

0.1GHz wideband low noise amplifier

,

2GHz wideband low noise amplifier

,

3W rf driver amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Low Noise Figure 0.1 - 2 GHz P1dB 10 dBm Wideband Low Noise Amplifier fot test and measurement equipment



Description



The 0.1 - 2 GHz P1dB 10 dBm Wideband Low Noise Amplifier (LNA) is an RF amplifier designed for applications requiring low noise and broad frequency range coverage, spanning from 0.1 GHz to 2 GHz. Here are its key specifications and features:

  • Frequency Range: 0.1 GHz to 2 GHz, making it suitable for a variety of RF applications across low to mid frequencies.
  • P1dB Output Power: 10 dBm, providing moderate output power with linear signal amplification up to the 1 dB compression point.
  • Wideband Operation: Offers stable performance over a wide frequency range, enhancing versatility for different systems.
  • Low Noise Figure: Optimized to minimize noise, ensuring a high signal-to-noise ratio (SNR), which is essential for amplifying weak signals.
  • High Gain: Provides consistent gain across the frequency range, enabling effective signal amplification without compromising quality.
  • Applications: Ideal for use in telecommunications, satellite communication, radar systems, signal processing, test and measurement equipment, and other applications needing wideband, low-noise amplification.

This LNA is a versatile choice for systems requiring broad frequency coverage and low-noise amplification, offering stable and reliable performance across a range of RF applications.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.1   2 GHz
Small Signal Gain 35     dB
Small Signal Gain Flatness   ±2   dB
Noise Figure     4 dB
Output Power 1dB compression   10   dBm
IP3       dBm
VSWR Input/output     2:1 Ratio
DC Power Supply   12   Volt
Current   250   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +20 dBm
Operating Temperature -40   +85
Non-operating Temperature -55   +125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT

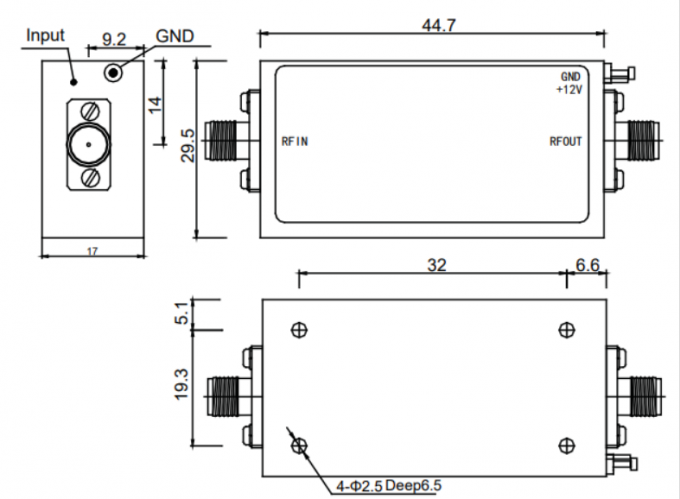

Dimensions 44.7*19.3*17 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms
