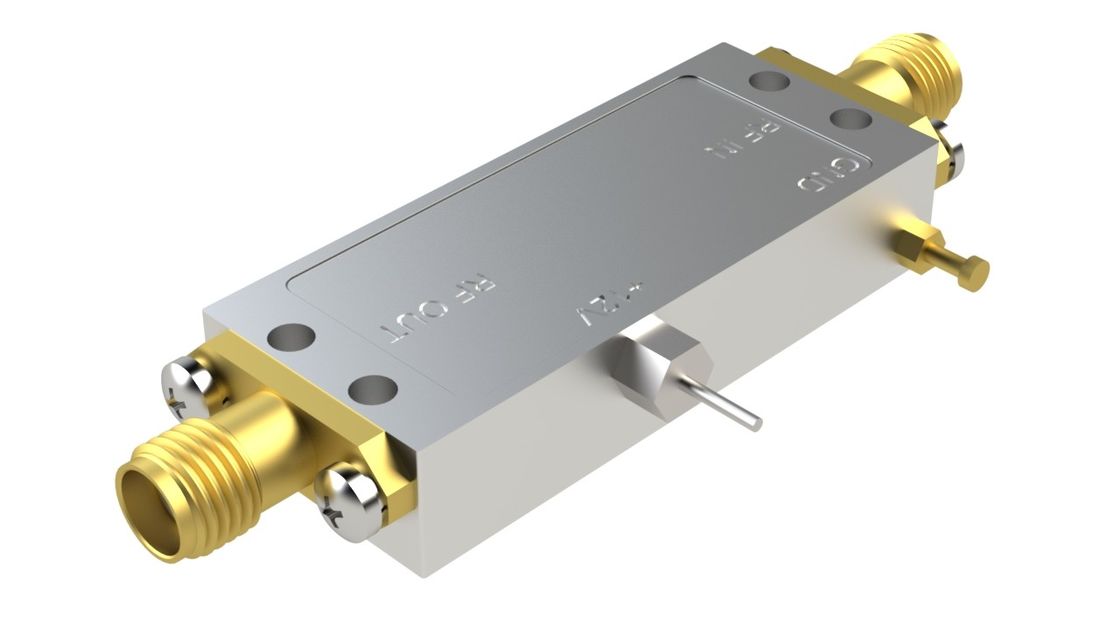

P1dB 10 dBm broadband low noise Wideband LNA 0.1-6 GHz Low Noise Amplifier for satellite communications
Description
The P1dB 10 dBm Wideband LNA 0.1-6 GHz Low Noise Amplifier is an RF amplifier that provides low-noise amplification over a wide frequency range, from 0.1 GHz to 6 GHz. This makes it suitable for a variety of applications that require broad bandwidth and low noise. Key features and specifications include:
This amplifier is an excellent choice for systems that operate over a wide frequency range and require reliable, low-noise amplification, making it well-suited for high-performance RF applications.
ELECTRICAL SPECIFICATIONS@25℃ | ||||
PARAMETER | MIN | TYPICAL | MAX | UNIT |
Frequency Range | 0.1 | 6 | GHz | |
Small Signal Gain | 28 | dB | ||
Small Signal Gain Flatness | ±1.25 | dB | ||
Noise Figure | 3.5 | dB | ||
Output Power 1dB compression | 10 | dBm | ||
IP3 | 18 | dBm | ||
VSWR Input/output | 2:1 | Ratio | ||
DC Power Supply | 12 | Volt | ||
Current | 190 | mA |
ENVIRONMENTAL RATINGS | ||||
PARAMETER | MIN | TYPICAL | MAX | UNIT |
Max Input power | +20 | dBm | ||
Operating Temperature | -40 | +85 | ℃ | |
Non-operating Temperature | -55 | +125 | ℃ | |
Relative humidity (non-condensing) | 95 | % | ||
Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
Shock / Vibration (MIL-STD-810F) | Airbone |
MECHANICAL SPECIFICATIONS | |||
PARAMETER | VALUE | LIMITS | UNIT |
Dimensions | 34.4*16.8*8.1 | Max | Millimeter |
Weight | 50 | Max | gram |
RF Connectors Input | SMA-F | ||
RF Connectors output | SMA-F | ||
Impedance | 50 | Ohms |
