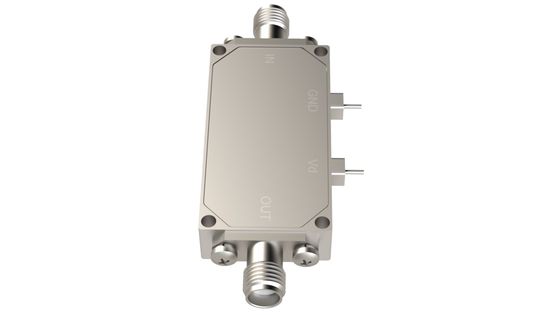

Wide Band Low Noise Amplifier high power and low noise 0.1-6 GHz 38dBm Amplifier module for scientific research
Description
-
Frequency Range: Covers a wide frequency range from 0.1 GHz to 6 GHz, suitable for various RF applications.
-
Power Output: Provides a maximum output power of 38 dBm, suitable for applications requiring high power amplification.
-
Low Noise: Features a low noise figure, ensuring signal clarity and accuracy during amplification.
-
Applications: Suitable for RF applications such as communication systems, radar systems, and scientific research that require high power and low noise.
-
Technical Features: Offers high gain, stability, and reliability, meeting the requirements of complex RF systems.
This low noise amplifier is designed for RF applications that demand high power and low noise in the frequency range of 0.1-6 GHz.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
0.1 |
|
6 |
GHz |
| Small Signal Gain |
38 |
|
|
dB |
| Small Signal Gain Flatness |
|
±2.5 |
|
dB |
| Noise Figure@2GHz |
|
|
3.5 |
dB |
| Output Power 1dB compression |
20 |
|
|
dBm |
| IP3 |
30 |
|
|
dBm |
| VSWR I |
|
2:1 |
2:5:1 |
Ratio |
| DC Power Supply |
|
12 |
|
Volt |
| Current |
|
120 |
|
mA |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
-18 |
dBm |
| Operating Temperature |
-20 |
|
+65 |
℃ |
| Non-operating Temperature |
-40 |
|
+85 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
10000 |
|
30000 |
feet |
| Shock / Vibration (MIL-STD-810F) |
|
Airbone |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |
| Dimensions |
70*40*15 |
Max |
Millimeter |
| Weight |
300 |
Max |
gram |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
SMA-F |
|
|
| Impedance |
50 |
|
Ohms |

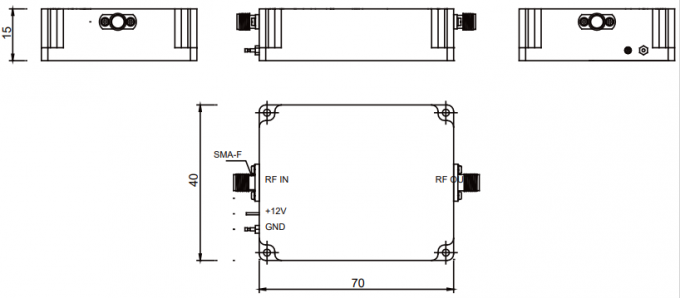

OutlineDimensionalDrawing
