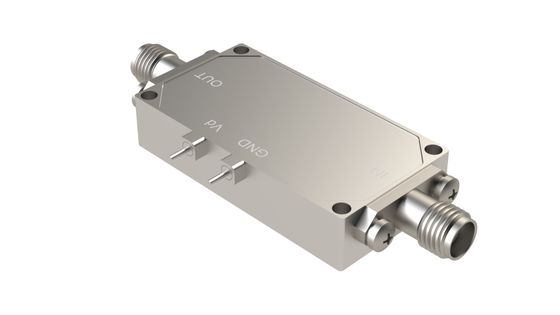

LNA module 0.1-20 GHz Wideband LNA P1dB 13 dBm RF Ultra Low Noise Amplifier for high-performance systems
  • LNA module 0.1-20 GHz Wideband LNA P1dB 13 dBm RF Ultra Low Noise Amplifier for high-performance systems

LNA module 0.1-20 GHz Wideband LNA P1dB 13 dBm RF Ultra Low Noise Amplifier for high-performance systems

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-010020000-30C
Product Details
Frequency Range:
0.1-20 GHz
DC Power:
12 V
Output Power 1dB Compression:
13 DBm
Gain:
30 DB
Packing:
Standard Packing
VSWR Input:
2:1
Dimensions:
50*30*15 Mm
Weight:
300 G
Application:
Telecommunications, Satellite Communications, Radar Systems, Electronic Warfare, Test And Measurement Systems
Highlight:

0.1GHz Wideband LNA

,

20GHz Wideband LNA

,

1W ultra low noise rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

LNA module 0.1-20 GHz Wideband LNA P1dB 13 dBm RF Ultra Low Noise Amplifier for high-performance systems



Description



The 0.1-20 GHz Wideband LNA P1dB 13 dBm RF Ultra Low Noise Amplifier is a high-performance RF amplifier designed for ultra-low noise operation across a broad frequency range from 0.1 GHz to 20 GHz. This amplifier is ideal for applications requiring wideband coverage and excellent signal integrity with minimal noise interference. Key specifications and features include:

  • Frequency Range: 0.1 GHz to 20 GHz, covering a wide spectrum suitable for low to high-frequency RF applications.
  • P1dB Output Power: 13 dBm, providing substantial output power before reaching the 1 dB compression point, enabling linear signal amplification.
  • Ultra Low Noise Figure: Engineered for ultra-low noise performance, enhancing the signal-to-noise ratio (SNR), making it especially suitable for amplifying weak signals without degrading signal quality.
  • Wideband Operation: Delivers consistent, reliable performance across a broad frequency range, allowing versatility in various applications.
  • High Gain: Provides stable gain across the full frequency range, ensuring effective signal amplification while preserving signal integrity.
  • Applications: Ideal for telecommunications, satellite communications, radar systems, electronic warfare, test and measurement systems, and other applications requiring ultra-low noise and wideband amplification.

This LNA module is perfect for high-performance systems that operate across broad frequencies and require low-noise, high-output amplification. Its wideband, low-noise capabilities make it a versatile and reliable choice for advanced RF and microwave applications.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.1   20 GHz
Gain 30     dB
Gain Flatness   ±2   dB
Noise Figure   4   dB
Output Power 1dB compression +13     dBm
IP3       dBm
VSWR   2.0   Ratio
DC Power Supply   12   Volt
Current   220   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -20   +60
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)       feet
Shock / Vibration (MIL-STD-810F)
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 50*30*15 Max Millimeter
Weight 300 Max gram
RF Connectors Input 2.92mm-F
RF Connectors output 2.92mm-F
Impedance 50   Ohms



OutlineDimensionalDrawing
