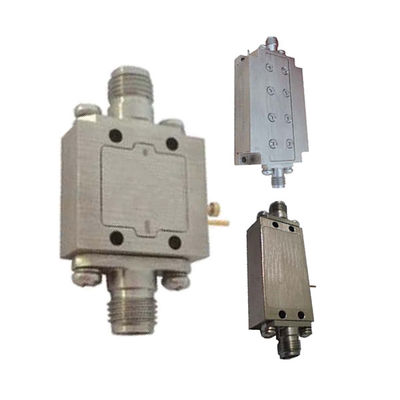

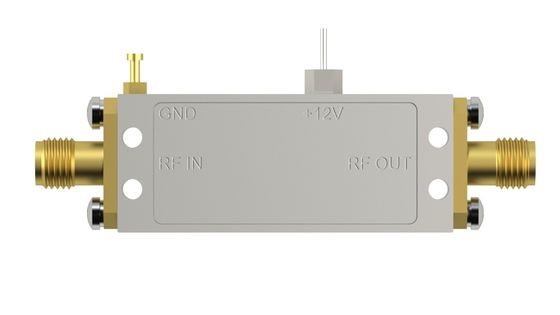

P1dB 19 dBm 0.5 - 1 GHz Wideband Low Noise Amplifier RF Power Amplifier
  • P1dB 19 dBm 0.5 - 1 GHz Wideband Low Noise Amplifier  RF Power Amplifier
  • P1dB 19 dBm 0.5 - 1 GHz Wideband Low Noise Amplifier  RF Power Amplifier

P1dB 19 dBm 0.5 - 1 GHz Wideband Low Noise Amplifier RF Power Amplifier

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-05001000-24C
Product Details
Packing:
Standard Packing
Dimensions:
40.7*16.8*8.1 Mm
Weight:
50 G
DC Power:
12 V
Frequency Range:
0.5-1 GHz
Output Power 1dB Compression:
19 DBm
Gain:
24 DB
VSWR Input:
2:1
Highlight:

24dB wideband low noise amplifier

,

1GHz wideband low noise amplifier

,

low noise amplifier gain 1W

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Wide Band Low Noise Amplifier 0.5-1 GHz P1dB 19 dBm  RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and  design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight  package.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.5   1 GHz
Small Signal Gain 24     dB
Small Signal Gain Flatness     ±0.5 dB
Noise Figure     1.6 dB
Output Power 1dB compression   19   dBm
IP3   27   dBm
VSWR Input/output     2:1 Ratio
DC Power Supply   12   Volt
Current   120   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     20 dBm
Operating Temperature -40   +85
Non-operating Temperature -55   125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 40.7*16.8*8.1 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms

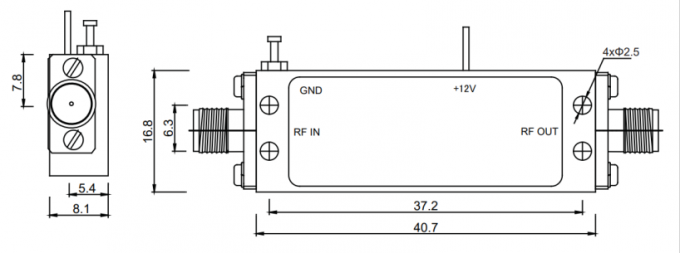

OutlineDimensionalDrawing
