0.5-2GHz Narrow Band LNA P1dB 12 dBm RF Module Low Noise Amplifiers for Scientific Experiments and Astronomy
  • 0.5-2GHz Narrow Band LNA P1dB 12 dBm RF Module Low Noise Amplifiers for Scientific Experiments and Astronomy
  • 0.5-2GHz Narrow Band LNA P1dB 12 dBm RF Module Low Noise Amplifiers for Scientific Experiments and Astronomy
  • 0.5-2GHz Narrow Band LNA P1dB 12 dBm RF Module Low Noise Amplifiers for Scientific Experiments and Astronomy
  • 0.5-2GHz Narrow Band LNA P1dB 12 dBm RF Module Low Noise Amplifiers for Scientific Experiments and Astronomy

0.5-2GHz Narrow Band LNA P1dB 12 dBm RF Module Low Noise Amplifiers for Scientific Experiments and Astronomy

Place of Origin China
Brand Name SWT
Model Number SW-PA-05002000-22C
Product Details
Frequency Range:
0.5-2 GHz
Noise Figure:
4.5dB
DC Power:
12 V
Output Power 1dB Compression:
12 DBm
Gain:
24 DB
VSWR Input:
2:1
Dimensions:
50*31*15 Mm
Weight:
50 G
Application:
Military Communication, Radar, Electronic Warfare
Packing:
Standard Packing
Highlight:

200mA wideband low noise amplifier

,

wideband low noise amplifier 0.16W

,

rf amplifier module 2GHz

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

0.5-2GHz Narrow Band LNA P1dB 12 dBm RF Module Low Noise Amplifiers for Scientific Experiments and Astronomy



Description

The 0.5-2GHz Narrow Band LNA (Low Noise Amplifier) is an electronic module used for amplifying RF signals in the frequency range of 0.5GHz to 2GHz. Its key features include:

  • Frequency Range: 0.5GHz to 2GHz, suitable for narrowband signal amplification.
  • Low Noise: Provides a very low noise figure to maintain signal quality.
  • P1dB: The amplifier’s 1dB compression point is 12dBm, meaning the gain starts to decrease when the signal reaches this power level.

This LNA is widely used in communications, radar, and wireless applications to enhance signal reception sensitivity and quality.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.5   2 GHz
Small Signal Gain 24     dB
Small Signal Gain Flatness   ±1.5   dB
Noise Figure   4.5   dB
Output Power @P1dB   +12   dBm
IP3       dBm
VSWR   1.5 2 Ratio
DC Power Supply   +5   Volt
Current   200   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +15 dBm
Operating Temperature -40   +60
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 50*31*15 Max Millimeter
Weight 200 Max gram
RF Connectors Input 2.92mm-F
RF Connectors output 2.92mm-F
Impedance 50   Ohms

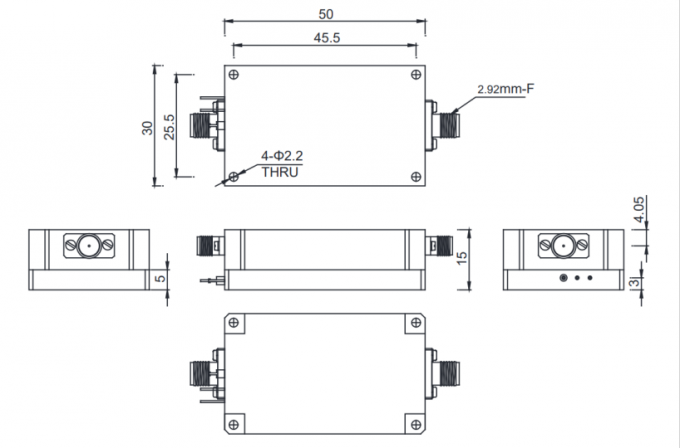

Outline
DimensionalDrawing
