0.5-2 GHz 100W Wide Band Low Noise Amplifier for RF systems, communication equipment
  • 0.5-2 GHz 100W Wide Band Low Noise Amplifier for RF systems, communication equipment
  • 0.5-2 GHz 100W Wide Band Low Noise Amplifier for RF systems, communication equipment
  • 0.5-2 GHz 100W Wide Band Low Noise Amplifier for RF systems, communication equipment
0.5-2 GHz 100W Wide Band Low Noise Amplifier for RF systems, communication equipment

0.5-2 GHz 100W Wide Band Low Noise Amplifier for RF systems, communication equipment

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-05002000-63C
Product Details
Frequency Range:
0.5-2 GHz
Output Power 1dB Compression:
12 DBm
Gain:
63dB
VSWR Input:
2:1
Current:
100mA
Operating Temperature:
-20~70˚C
Applications:
RF Systems, Communication Equipment, Radar Systems
Packing:
Standard Packing
Weight:
50 G
Dimensions:
82.91*20.3*11.05 Mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

0.5-2 GHz 100W Wide Band Low Noise Amplifier for RF systems, communication equipment



Description

  1. Frequency Range: The amplifier operates in a wide frequency range from 0.5 GHz to 2 GHz, suitable for processing a broad range of RF signals.

  2. Power Output: It delivers a high power output of 100 watts, making it suitable for applications requiring high-power amplification.

  3. Low Noise: The amplifier features low noise characteristics, ensuring that the amplified signals maintain clarity and accuracy, minimizing noise interference.

  4. Wide Bandwidth: Due to its wide bandwidth capability, the amplifier can handle a diverse range of frequencies within the specified range, making it suitable for various frequency-dependent systems.

  5. Applications: It is commonly used in RF systems, communication equipment, radar systems, and other applications that demand high power and low noise amplification, particularly within the 0.5-2 GHz frequency range.

  6. Technical Specifications: Designed with high gain and low noise figure, it provides reliable and efficient amplification, ensuring signal quality and transmission stability.

Overall, the Wide Band 0.5-2 GHz 100W Low Noise Amplifier is suitable for a wide range of RF applications, offering high-power output and low noise characteristics for processing diverse RF signals.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25℃
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.5   2 GHz
Gain 63   67 dB
Noise Figure @Over Operatint Temp. Range     5 dB
Max Survival Power@CW     1 Watt
Max Survival Power@Pluse     100 Watt
Duty Cycle     1 %
Put Saturated For -50 TO 0dBm I/P Power +12   +15 dBm
O/P Noise power With I/P Terminated     -10 dBm
VSWR Input/output     2:1 Ratio
DC Power Supply   15   Volt
Current   100   mA



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power CW       dBm
Operating Temperature -20   +70 ℃
Non-operating Temperature -40   +82 ℃
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

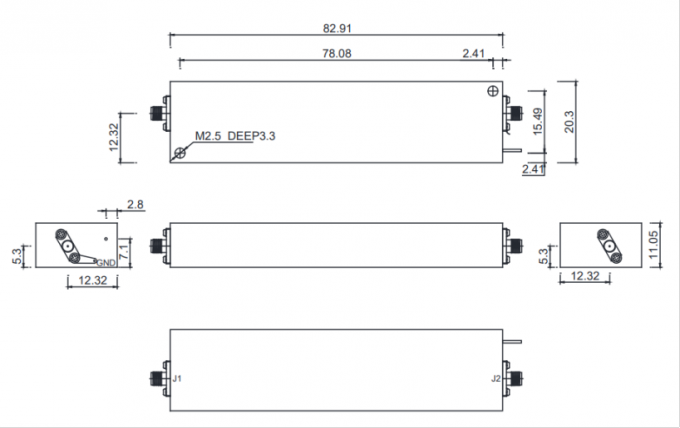

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 82.91*20.3*11.05 Max Millimeter
Weight 80 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms
