0.5-3 GHz P1dB 7dBm Wide Band Low Noise Amplifier with high gain, stability, and reliability
Description
-
Frequency Range: This amplifier is designed for the wide frequency range of 0.5 GHz to 3 GHz, capable of handling a broad spectrum of RF signals.
-
Low Noise Characteristics: It boasts a low noise figure, ensuring clear and accurate signal amplification while minimizing noise interference.
-
Power Output: It provides moderate power output suitable for general RF applications.
-
Applications: Ideal for use in communication systems, radar systems, scientific research, and other RF applications, particularly in scenarios requiring low noise amplification and wide bandwidth coverage.
-
Technical Features: With high gain, stability, and reliability, it meets the demands of complex RF systems.
Overall, the Wide Band Low Noise Amplifier is designed to process RF signals across a wide frequency range with low noise and stability, making it suitable for a variety of RF applications.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
0.5 |
|
3 |
GHz |
| Small Signal Gain |
19 |
|
21 |
dB |
| Small Signal Gain Flatness |
|
|
±1.5 |
dB |
| Noise Figure |
|
|
2.2 |
dB |
| Output Power 1dB compression |
7 |
|
|
dBm |
| IP3 |
23 |
|
|
dBm |
| VSWR Input/output |
|
|
2:1 |
Ratio |
| DC Power Supply |
|
12 |
|
Volt |
| Current |
|
100 |
|
mA |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+20 |
dBm |
| Operating Temperature |
-40 |
|
+85 |
℃ |
| Non-operating Temperature |
-55 |
|
+125 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
10000 |
|
30000 |
feet |
| Shock / Vibration (MIL-STD-810F) |
|
Airbone |
|
|

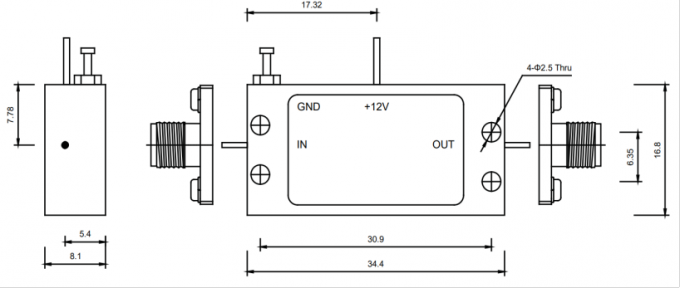

| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |
| Dimensions |
34.4*16.8*8.1 |
Max |
Millimeter |
| Weight |
50 |
Max |
gram |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
SMA-F |
|
|
| Impedance |
50 |
|
Ohms |
