CE 0.5 - 18 GHz LNA Low Noise Amplifiers Wide Band IP2 11 dBm RF Power Amplifier
  • CE 0.5 - 18 GHz LNA Low Noise Amplifiers Wide Band  IP2 11 dBm RF Power Amplifier

CE 0.5 - 18 GHz LNA Low Noise Amplifiers Wide Band IP2 11 dBm RF Power Amplifier

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-050018000-7C
Product Details
Packing:
Standard Packing
Dimensions:
34.4*16.8*8.1 Mm
Weight:
50 G
DC Power:
12 V
Frequency Range:
0.5-18 GHz
Output Power 1dB Compression:
0 DBm
Gain:
7 DB
VSWR Input:
2:1
Highlight:

CE LNA Low Noise Amplifiers

,

18GHz LNA Low Noise Amplifiers

,

0.005W low noise rf transistor

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

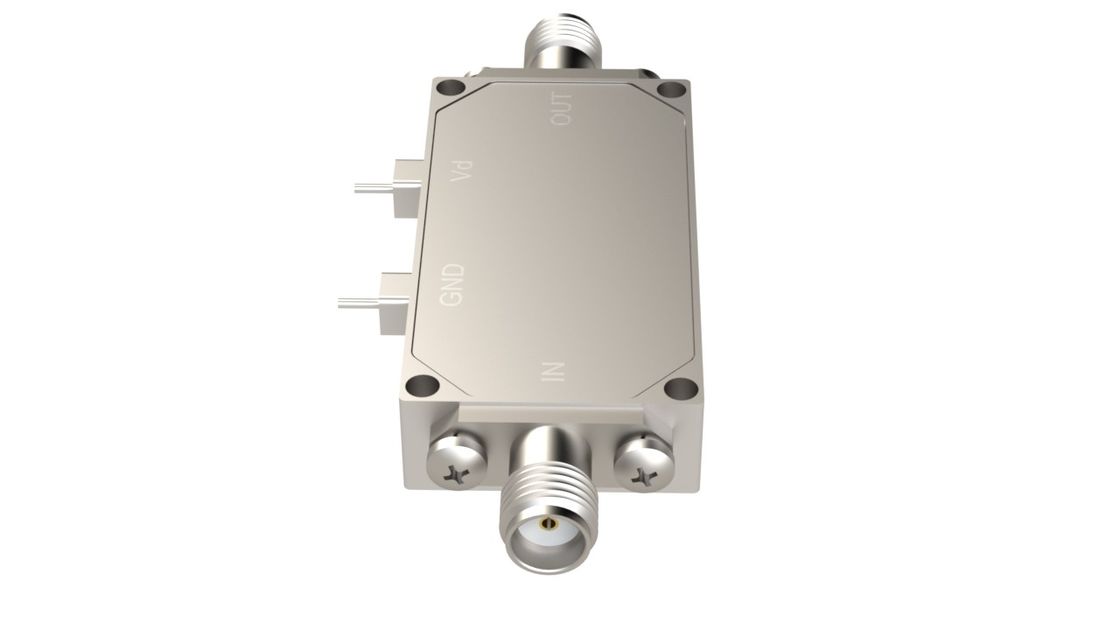

Wide Band Low Noise Amplifier 0.5-18 GHz IP2 11 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and  design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight  package.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.5   18 GHz
Amplifier Gain @0.5GHz   7±1.5   dB
Amplifier Gain @2GHz   8±1.5   dB
Amplifier Gain @6GHz   11±1.5   dB
Amplifier Gain @12GHz   13±1.5   dB
Amplifier Gain @18GHz   15±1.5   dB
Amplifier Gain Variation over Temperature     ±0.75 dB
Noise Figure@0.5-2GHz     3 dB
Noise Figure@2-18GHz     2.5 dB
Output 1dB GCP @0.5-18GHz 0     dBm
IP2@18GHz +11     dBm
IP3@18GHz +7     dBm
HP2     26 dBc
HP3     40 dBc
VSWR Input/output     2:1 Ratio
DC Power Supply   12   Volt
Current   100   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -40   +85
Non-operating Temperature -55   +125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 34.4*16.8*8.1 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms
