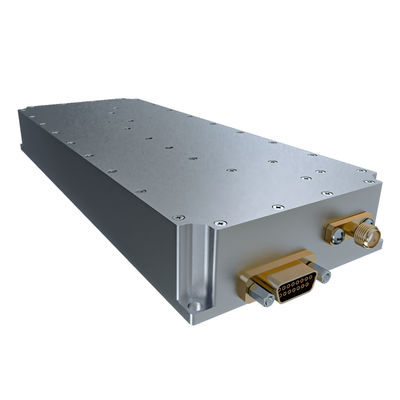

0.5-18 GHz P1dB 10dBm Wide Band Low Noise Amplifier for amplifying signals with low noise
Description
-
Frequency Range: This amplifier is designed to operate across a wide frequency range from 0.5 GHz to 18 GHz, making it suitable for a broad spectrum of RF signals.
-
Low Noise Performance: It features low noise characteristics, ensuring minimal noise interference during signal amplification.
-
Wide Bandwidth: With its wide bandwidth capability, the amplifier can effectively handle signals across the specified frequency range, making it versatile for various RF applications.
-
Applications: This amplifier is commonly used in communication systems, radar systems, scientific research, and other RF applications requiring wide bandwidth and low noise amplification across the 0.5-18 GHz frequency range.
-
Technical Specifications: It is designed with high gain and low noise figure, providing reliable and efficient amplification for signals within the specified frequency band.
Overall, the 0.5-18 GHz Wide Band Low Noise Amplifier is designed to offer excellent performance in amplifying signals with low noise characteristics across a wide frequency range, making it suitable for a range of RF applications.
.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
0.5 |
|
18 |
GHz |
| Small Signal Gain |
30 |
35 |
|
dB |
| Small Signal Gain Flatness |
|
|
±2 |
dB |
| Noise Figure |
|
3 |
3.5 |
dB |
| Output Power 1dB compression |
+10 |
|
|
dBm |
| IP3 |
|
+20 |
|
dBm |
| VSWR Input/output |
|
|
2:2:1 |
Ratio |
| DC Power Supply |
12 |
15 |
18 |
Volt |
| Current |
|
220 |
|
mA |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+20 |
dBm |
| Operating Temperature |
-40 |
|
+85 |
℃ |
| Non-operating Temperature |
-55 |
|
+125 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
10000 |
|
30000 |
feet |
| Shock / Vibration (MIL-STD-810F) |
|
Airbone |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

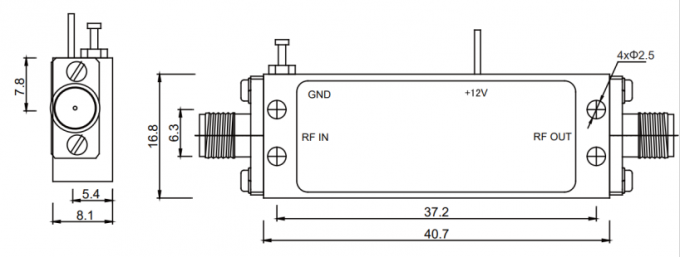

| Dimensions |
40.7*16.8*8.1 |
Max |
Millimeter |
| Weight |
50 |
Max |
gram |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
SMA-F |
|
|
| Impedance |
50 |
|
Ohms |
