0.5-0.7 GHz P1dB 12dBm Narrow Band LNA Low Noise Amplifier for telecommunications, radar systems
Description
The 0.5-0.7 GHz P1dB 12dBm Narrow Band Low Noise Amplifier (LNA) is a specialized RF amplifier designed for narrow band applications within the 500 to 700 MHz frequency range. This LNA offers a P1dB (output power at 1 dB compression point) of 12 dBm, which indicates its capability to handle moderate power levels before significant distortion occurs. Key features and specifications include:
This amplifier is typically used in communication systems that require amplification of weak signals while maintaining a low noise figure, ensuring minimal degradation of signal quality in the specified narrow band.
ELECTRICAL SPECIFICATIONS@25℃ | ||||
PARAMETER | MIN | TYPICAL | MAX | UNIT |
Frequency Range | 0.5 | 0.7 | GHz | |
Small Signal Gain | 30 | dB | ||
Small Signal Gain Flatness | ±0.5 | dB | ||
Noise Figure | 0.9 | dB | ||
Output Power 1dB compression | 12 | dBm | ||
IP3 | dBm | |||
VSWR Input/output | 2:1 | Ratio | ||
DC Power Supply | 12 | Volt | ||
Current | 200 | mA |
ENVIRONMENTAL RATINGS | ||||
PARAMETER | MIN | TYPICAL | MAX | UNIT |
Max Input power | +20 | dBm | ||
Operating Temperature | -40 | +85 | ℃ | |
Non-operating Temperature | -55 | +125 | ℃ | |
Relative humidity (non-condensing) | 95 | % | ||
Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
Shock / Vibration (MIL-STD-810F) | Airbone |
MECHANICAL SPECIFICATIONS | |||
PARAMETER | VALUE | LIMITS | UNIT |

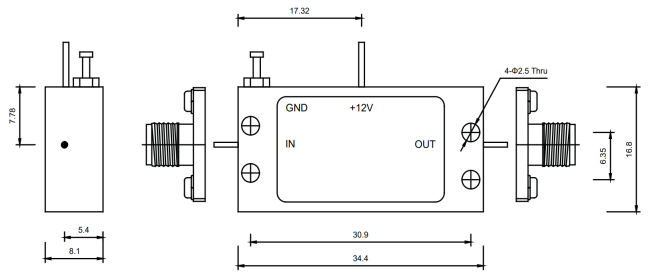

Dimensions | 34.4*16.8*8.1 | Max | Millimeter |
Weight | 50 | Max | gram |
RF Connectors Input | SMA-F | ||
RF Connectors output | SMA-F | ||
Impedance | 50 | Ohms |
